Canon New F-1
The Canon New F-1 is Canon's second and final flagship 35mm single-lens reflex camera, launched in September 1981 and produced continuously for the next 13 years until its official discontinuation in 1994, with factory service support continuing for another decade, until 2004. It replaced the original F-1 (and its 1976 revision, the F-1n) as the top of Canon's professional 35mm lineup, and it sat at the top of the FD-mount system through the entire lifetime of the A-series and T-series consumer bodies below it. This was an unusual arrangement in which a manual-focus mechanical-hybrid flagship remained in production alongside, and then substantially outlived, the increasingly automated bodies underneath it.
When it finally stopped being made in 1994, the New F-1 had been on sale for roughly the same length of time as its two closest professional rivals — the Nikon F3 and the Pentax LX — and had accumulated a reputation, richly deserved, as one of the two or three most thoroughly engineered 35mm SLR cameras ever put into series production (Canon Camera Museum).
The camera's headline specification is straightforward enough to summarise: an all-metal FD-mount 35mm SLR body with a hybrid electromechanical titanium-bladed focal-plane shutter running from 8 seconds to 1/2000 second plus B, TTL silicon-photocell full-aperture metering, interchangeable pentaprism finders, interchangeable focusing screens that also determine the metering pattern (spot, partial or centre-weighted average), and a modular system architecture that turns the base camera into an aperture-priority AE body when the AE Finder FN is fitted, a shutter-priority AE body when the AE Motor Drive FN or AE Power Winder FN is fitted, and a manual-exposure body when neither is fitted — with all four combinations of "AE finder plus AE motor drive" giving you shutter-priority, aperture-priority, manual, and stopped-down AE from the same physical body.
The genuinely interesting things about the New F-1, though, are not on the specification sheet in any obvious way; they are in the mechanical engineering of the shutter, the electronic sophistication of the metering system, the sheer physical density of the chassis, and the way the whole thing has aged over the forty-four years since it was launched.
A short history of the camera
The New F-1 was Canon's response to a problem that had crept up on the company through the second half of the 1970s. The original F-1 of March 1971 had been Canon's first serious attempt at a professional-market SLR — a rugged all-mechanical body designed to compete with the Nikon F and F2, marketed on the strength of its interchangeable finders, its rigorous build quality, and Canon's promise of ten years of continuous availability from the day of launch. It had done reasonably well; the 1976 F-1n revision had modernised the ISO range and the film advance and had extended the promise of availability; and by the late 1970s Canon had a professional flagship that worked, sold, and made money.
But it had also, in that same period, launched the AE-1 (April 1976) and the A-1 (April 1978), both aggressively electronic, aggressively automated, aggressively marketed A-series bodies that were transforming Canon's position in the enthusiast market. They demonstrated a set of technical capabilities — programmed AE, LED viewfinder readouts, digital electronics — that the venerable all-mechanical F-1 conspicuously lacked.
Nikon had launched the electronic F3 in March 1980. Pentax had launched the equally electronic LX in June 1980. Olympus launched the OM-2 that same year. By 1981, the F-1 was, quite simply, the last major manufacturer's professional 35mm flagship that was still fundamentally a mechanical camera, and Canon knew it had to build a replacement that would fit properly in the modern market (Wikipedia).
The New F-1 was the result. It was designed from a clean sheet under the internal codename F-1N. This is a source of some confusion, given that the 1976 revision was called F-1n with a lowercase ‘n’. The two are now almost universally referred to as the "New F-1" and the "F-1n," respectively, to avoid ambiguity, and were intended from the outset as modular camera systems with genuinely professional levels of engineering, mechanical robustness, and electronic sophistication. The specification brief was, in effect, to combine everything the F-1 had done well — the interchangeable finders, the metal chassis, the modular architecture — with everything the A-1 had done well — the electronic metering, the multiple exposure modes, the automation — and to do so without the compromises that had prevented the old F-1 from being reasonably automated or the A-1 from being reasonably professional.
The design team spent roughly three years working on the camera, and shipped it in September 1981 at a launch price of 149,000 yen for the body alone, 181,000 yen with the FD 50mm f/1.4, and 201,000 yen with the FD 50mm f/1.2.
The commercial history of the New F-1 through the 1980s was, in retrospect, a slightly strange one. It sold steadily but never spectacularly to working professionals: press, sports, and news photographers who wanted a rugged FD-mount body with a proper motor drive, and studio and landscape photographers who wanted interchangeable focusing screens and modular finders. It developed a particular following among photojournalists who had been using Canon FD glass for years and wanted a professional body to match. Canon supplied heavily badged "New F-1 High Speed Motor Drive" variants to the 1984 Los Angeles Olympics press pool (a fixed-mirror body delivering 14 frames per second), and the New F-1 became, alongside the Nikon F3, one of the two dominant press cameras of the 1980s. But the crucial market context is that by the time the New F-1 was really finding its feet in the professional market, Canon had already begun the work that would render the entire FD system obsolete.
The T80 of 1985 introduced Canon's first autofocus SLR body — a slightly awkward experiment that used dedicated AC lenses and never sold well. The EOS 650 of March 1987 introduced the new EF mount and the modern autofocus era; and by the late 1980s Canon was pouring virtually all of its professional-camera investment into the EOS system while the New F-1 quietly kept selling to the professionals who had already bought into the FD system and did not want to switch. The New F-1 was, by 1988, the flagship of an increasingly frozen ecosystem — no new bodies, no new lenses, no new motor drives, just steady factory production of the same design against steady replacement demand from working professionals (Wikipedia).
The camera was officially discontinued in 1994, thirteen years after launch — one of the longest continuous production runs of any 35mm SLR body from any manufacturer — and Canon continued to offer factory service and spare parts until 2004, ten years beyond the end of production. The final production examples are essentially identical in every material respect to the earliest 1981 bodies; Canon made a few very minor internal revisions over the thirteen-year run, mostly to electronic component sourcing and one small change to the eyepiece shutter mechanism, but the body from the outside is unchanged, and any two New F-1s from anywhere in the production run will handle identically.
What's inside
The New F-1's specification is, by the standards of a 1981 flagship SLR, unusually well thought-out. The camera manages to combine features that would normally be mutually exclusive — full mechanical shutter operation without a battery, precise electronic timing at slow speeds, three different metering patterns, three exposure automation modes — without any of the compromises that usually attend that kind of ambition. The resulting body is a thing that professional photographers have generally loved once they have got over the slightly formidable initial learning curve.

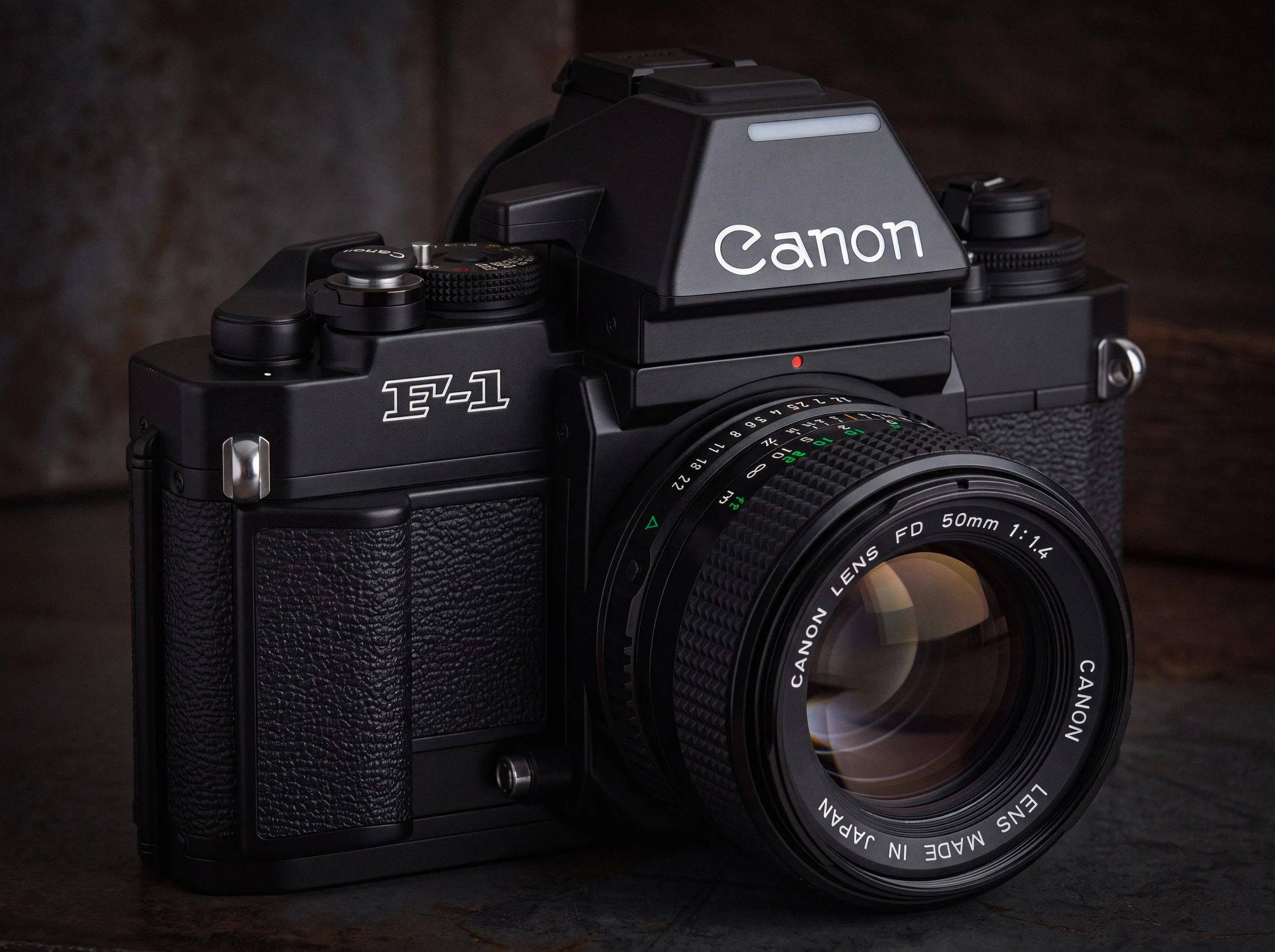

The body is a die-cast aluminium chassis with brass top and bottom plates finished in matte black paint, measuring 147 × 97 × 48mm and weighing 795 grams for the body alone with the standard Eye-Level Finder FN in place, rising to around 1,030 grams with the FD 50mm f/1.4 lens attached, and to somewhere between 1,500 and 1,800 grams with the AE Motor Drive FN and a full battery pack.
It is a substantial camera, denser and slightly larger than a Canon A-1 or FTb, closer in feel to a Nikon F3 than to anything in Canon's own consumer lineup, and the sensation of picking one up for the first time is that of picking up something engineered rather than styled. The paint wears, over decades of use, in the distinctive way that only mixed brass-and-aluminium bodies do — the corners of the top plate and the edges of the film-back door tend to develop small patches where the black paint has thinned through to brass beneath, giving well-used examples that unmistakable "brassing" patina that lets you tell a fifteen-year-working press camera apart from a fifteen-year cupboard queen at ten paces (Pacific Rim).
The lens mount is the Canon FD breech-lock mount, introduced with the original F-1 in March 1971, upgraded to the New FD bayonet-style attachment mechanism from 1979 onwards. The New F-1 accepts every Canon FD lens ever made — from the aspherical 55mm f/1.2 SSC and 50mm f/1.2 L super-speed normals down through the entire FD zoom and prime lineup — and additionally supports FL and R-series lenses in stopped-down metering mode. The FD mount was Canon's photographic backbone from 1971 through the end of the T60 in 1990, and the New F-1 sits at the top of that mount's professional-body hierarchy. It cannot use EF lenses: the EF mount uses a completely different flange distance and communication protocol. There is no infinity-focus mechanical adapter for FD to EF, which is why FD lenses remained relatively cheap on the used market for a long time and are only now beginning to appreciate as mirrorless bodies with short flange distances make them readily adaptable to modern digital cameras.
The shutter is the New F-1's most talked-about single feature and deserves a proper explanation. It is a horizontal-travel focal-plane shutter with titanium metal curtains, running on a four-shaft (four-spindle) mechanical framework, and is a hybrid electromechanical design in which some shutter speeds are timed mechanically, and others are timed electronically.
The specific split is unusual: the fast speeds from 1/125 to 1/2000 second, plus the X-sync speed (1/90) and B, are all mechanically timed, using conventional escapement-driven gear trains that will function correctly with the battery removed from the camera; the slow speeds from 1/60 down to 8 seconds are electronically timed, using a quartz-oscillator reference that requires the battery to be in place. When the aperture-priority AE mode is engaged via the AE Finder FN and the shutter dial is set to "A," the entire speed range switches to electronic control — with a maximum speed reduced from 1/2000 to 1/1000 second in AE mode, an interesting technical compromise driven by the response time of the SPC metering circuit.
The titanium curtains are unusual for a Japanese SLR of any era — most contemporaries used cloth or stainless steel — and were chosen for their combination of low mass (allowing faster acceleration and more accurate high-speed timing), high fatigue resistance, and stability across a wide temperature range. Canon rated the shutter for over 100,000 actuations, well above the working-life expectation of the electronics.
In practical use, the hybrid design means that a New F-1 with a dead battery will still shoot at 1/125, 1/250, 1/500, 1/1000, 1/2000, 1/90 (X) and B, giving a functioning professional camera in any battery-failure situation — a feature that press photographers in the 1980s valued more than any specification-sheet statistic can quite convey (Kamerastore, Unfamiliar Japan).
The metering system is TTL full-aperture using a silicon photocell (SPC) located inside the base of the mirror box, with three selectable metering patterns — centre-weighted average, selective-area (partial) 12%, and spot 3% — that are chosen not by a switch on the camera body but by swapping the focusing screen. The New F-1 shipped with a catalogue of 32 different focusing screens, organised into 13 physical types, each of which carried either a selective-area or a spot metering mask. The centre-weighted average pattern was available on a further set of screens.
Users could pick a screen combining the focusing aid they wanted (split-image, microprism, plain matte, cross-hair, architectural grid, etc.) with the metering pattern appropriate to the kind of photography they were doing (spot for reversal film in complex lighting, partial for portraiture and general use, centre-weighted for casual work). The screens are user-replaceable — Canon supplied a small plastic tool with each screen — and change out from above with the finder removed. This screen-driven metering-pattern architecture is one of the New F-1's more distinctive engineering decisions; almost every other multi-pattern-metering SLR of the era used a switch or a separate metering module, and Canon's approach traded the convenience of a switch for the mechanical simplicity of a single unbranched metering circuit that always reads exactly what the current screen tells it to read (MIR).
The metering range is exceptionally wide — EV -1 to EV 20 at ISO 100 with an f/1.4 lens — corresponding to shutter speeds from 4 seconds at f/1.4 at the low end to 1/2000 at f/22 at the high end, in a working range that extends into low-light conditions where most contemporary SLR meters simply gave up. The film-speed range is ISO 6 to ISO 6400, which was standard for the era but useful in a professional context where reversal films from ISO 25 to ISO 400 and negative films from ISO 100 to ISO 3200 were routine. Exposure compensation is available in a ±2 EV range in 1/3-stop increments, adjusted via a small dial concentric with the ASA setting on the top-left of the body (Pacific Rim Camera).

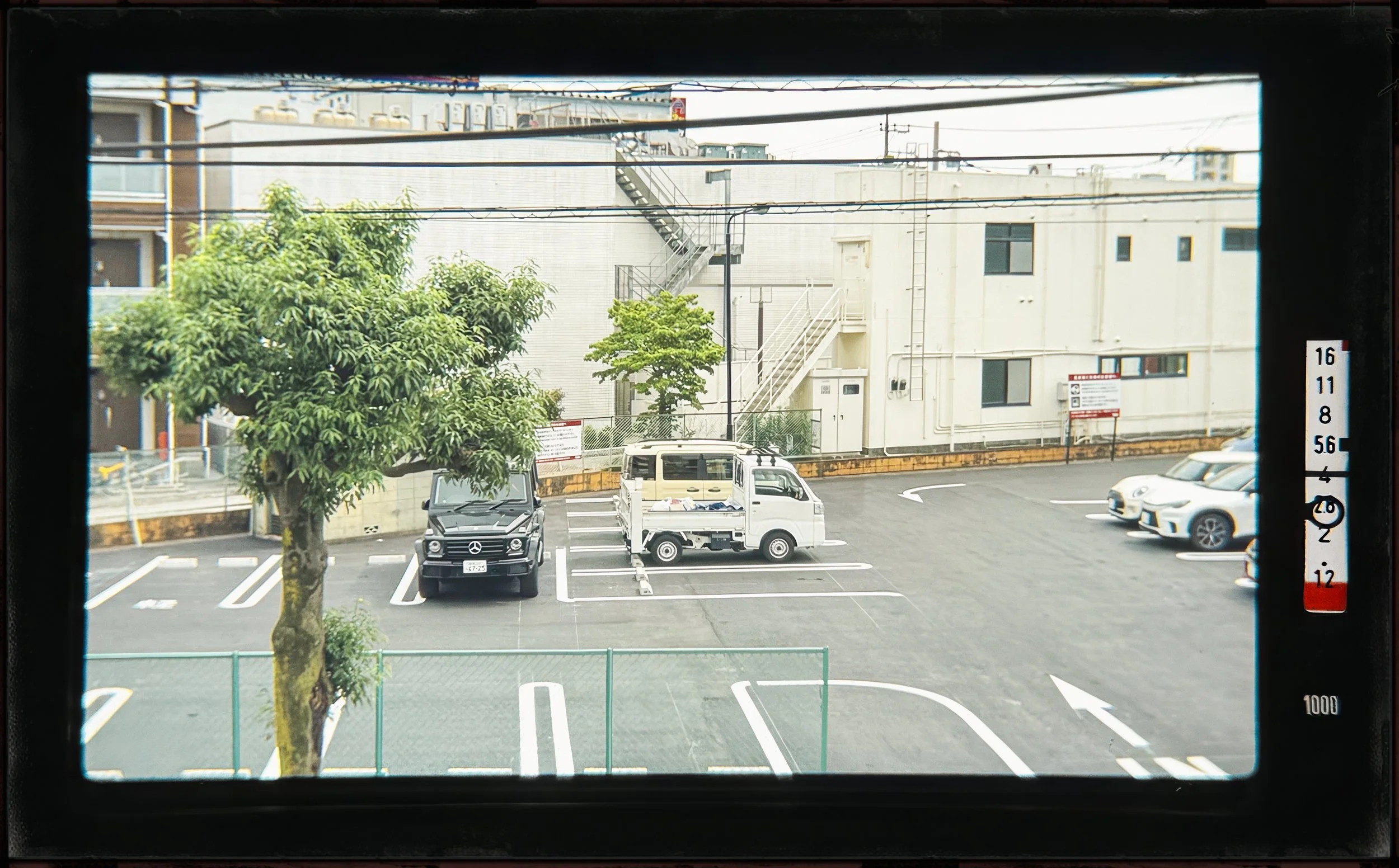

The viewfinder in the standard configuration is the Eye-Level Finder FN, a fixed-magnification pentaprism with 0.8× magnification and 97% frame coverage (both vertically and horizontally), a built-in hotshoe with dedicated AE-flash contacts for Canon Speedlite units, and a built-in eyepiece shutter controlled by a small lever on the back-left of the finder housing (marked NORMAL / HOLD / LIGHT — the same lever that controls the metering timeout mode). The finder display includes the standard match-needle metering readout (aperture needle and metering needle, aligned by adjusting shutter speed and aperture), the shutter speed scale to the right of the field of view, an aperture readout window along the top (with New FD lenses), over- and under-exposure warning marks, and a battery-check index. The finder is removable by pressing two small buttons on the rear of its housing and sliding the whole prism assembly off, revealing a small ridged mating surface on top of the camera body where any of the alternative FN-series finders can be attached in its place.
The five FN-series finders are: the standard Eye-Level Finder FN described above; the AE Finder FN, which adds the electronic components for aperture-priority AE and replaces the fixed pentaprism with a slightly larger housing that includes a shutter-speed LED readout below the field of view; the Speed Finder FN, a pull-back sports-and-action finder that allows the frame to be viewed from up to 60mm behind the eyepiece — used in underwater housings and by press photographers wearing goggles or masks; the Waist-Level Finder FN, a folding hood-and-magnifier assembly that gives a laterally-reversed direct top-down view of the focusing screen; and the Waist-Level Finder FN 6X, a specialist macro-photography finder that adds 6× magnification for critical focusing. All five finders share the same physical mating surface and click on and off with the same two-button release, and any focusing screen from the 32-screen catalogue can be used with any of the finders (although some screens work best with specific finders — the plain matte cross-hair screens, for example, are principally intended for the Waist-Level FN 6X) (MIR Viewfinder Options).
The power source is a single 6-volt battery — either a 2CR-1/3N lithium cell or a 4LR44 alkaline stack, both of which are still readily available in 2026 — housed in a small battery compartment on the bottom-left of the baseplate. Battery life is rated at around one year of normal use; a battery-check button on the top plate causes the metering needle to swing to the battery-OK index if the battery voltage is sufficient. The camera includes a small battery-check switch position on the shutter dial as an alternative way to check the battery. Because most of the shutter is mechanical, a dead battery produces a functioning camera at 1/125-1/2000 plus B and X rather than a paperweight — a feature that press users learned to rely on and that landscape photographers with cold camera bags on winter mountain expeditions came to appreciate (MIR).
Ancillary features include a built-in electronic self-timer with adjustable delay and audible beeper, a multiple-exposure mechanism (engaged by pulling the rewind lever before recocking the shutter), a stop-down slider for depth-of-field preview and non-FD lens metering, flash synchronisation at speeds up to 1/90 with a hotshoe and PC socket (JIS-B type), FP- and M-sync at slower speeds for older bulb flashes, and a camera-back safety latch to prevent accidental opening. The film reminder holder in the centre of the back door accepts the tab from a 35mm film box to remind you which stock you loaded.
A Run Through of the Controls & Features
Overall, the New F-1 has approximately 45–50 externally identifiable controls, levers, sockets and fittings, depending on whether internal film-path components and finder features are included. Canon deliberately designed the camera so that virtually every major photographic function could be accessed directly, without entering menus or taking the eye out of the viewfinder—a hallmark of professional SLR design from the early 1980s.

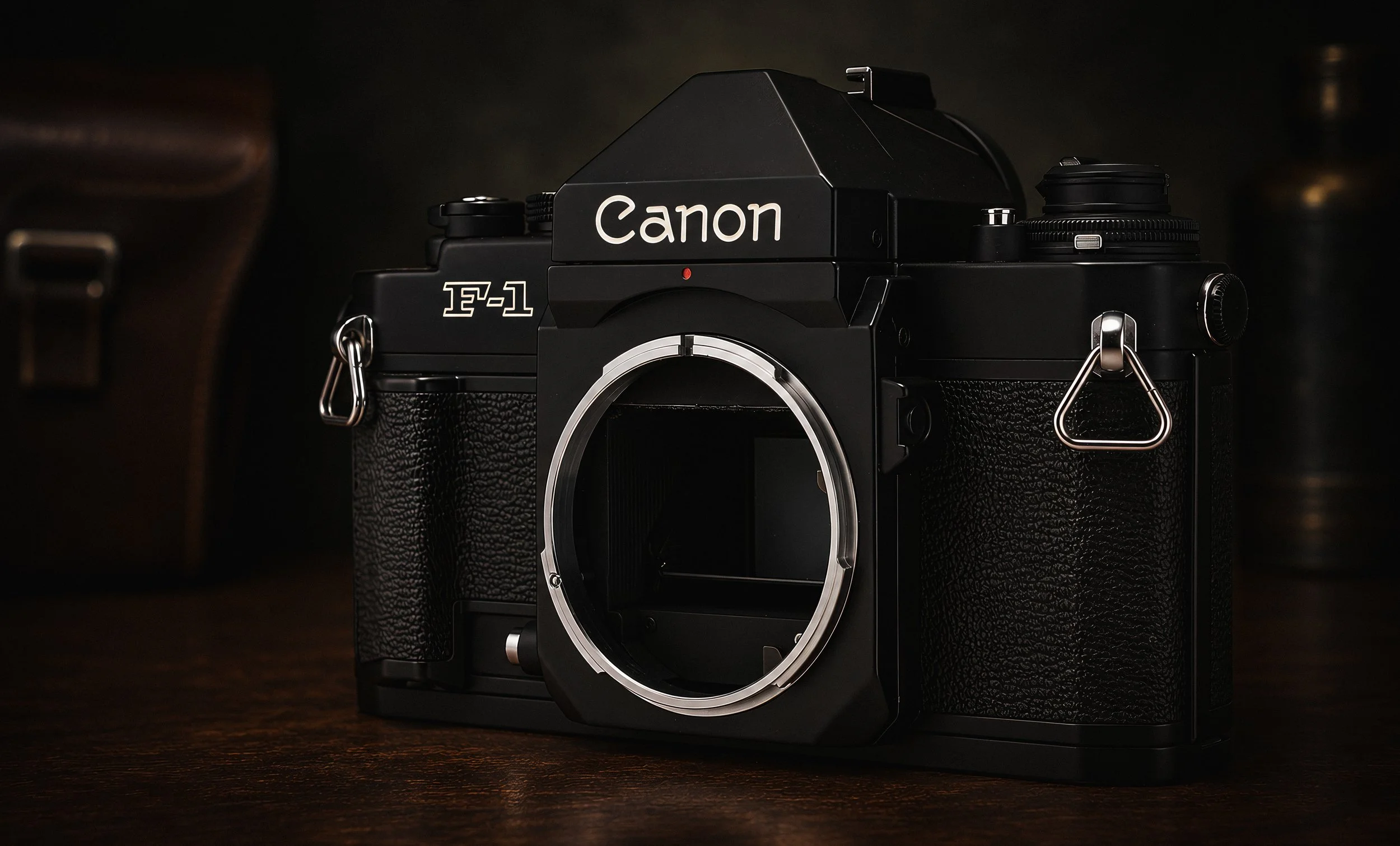

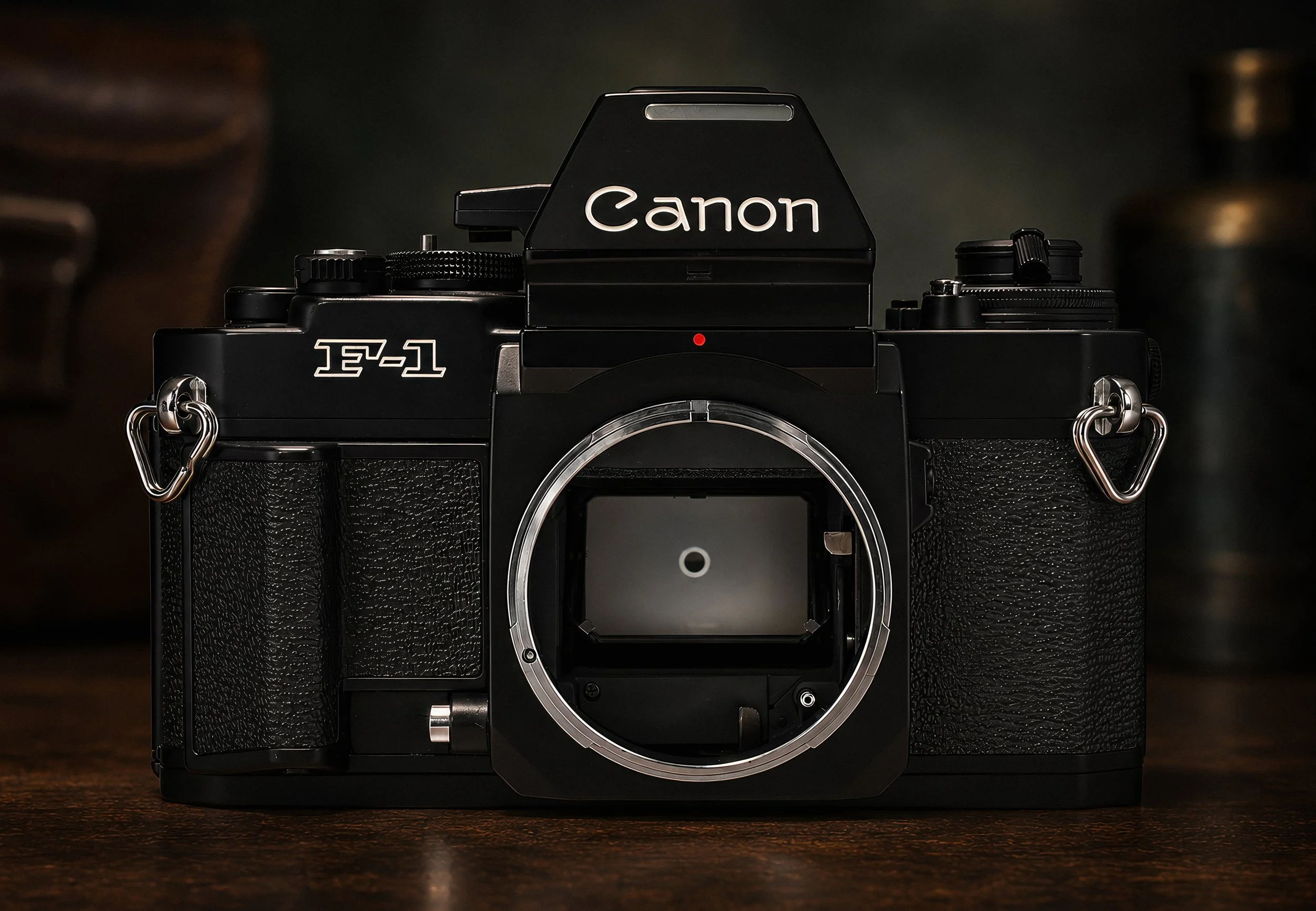

The front of the camera body has a fairly simple layout. To the right of the lens mount is the contoured Action Grip, which also acts as the Battery Compartment cover and has a small release button on the underside. The centre is mostly occupied by the Canon FD breech-lock lens mount itself. At the 7 o’clock position is the Stop Down Slide lever, which enables stopped-down metering with compatible lenses and depth-of-field preview.
At the upper right of the lens mount, there’s a Battery Check Button that tests the battery condition and performs several secondary electronic functions, including cancelling the self-timer. The meter needle in the viewfinder moves to indicate if the battery is charged. The PC Flash Socket, a standard coaxial connector for flash synchronisation, is located on the upper right edge of the camera.

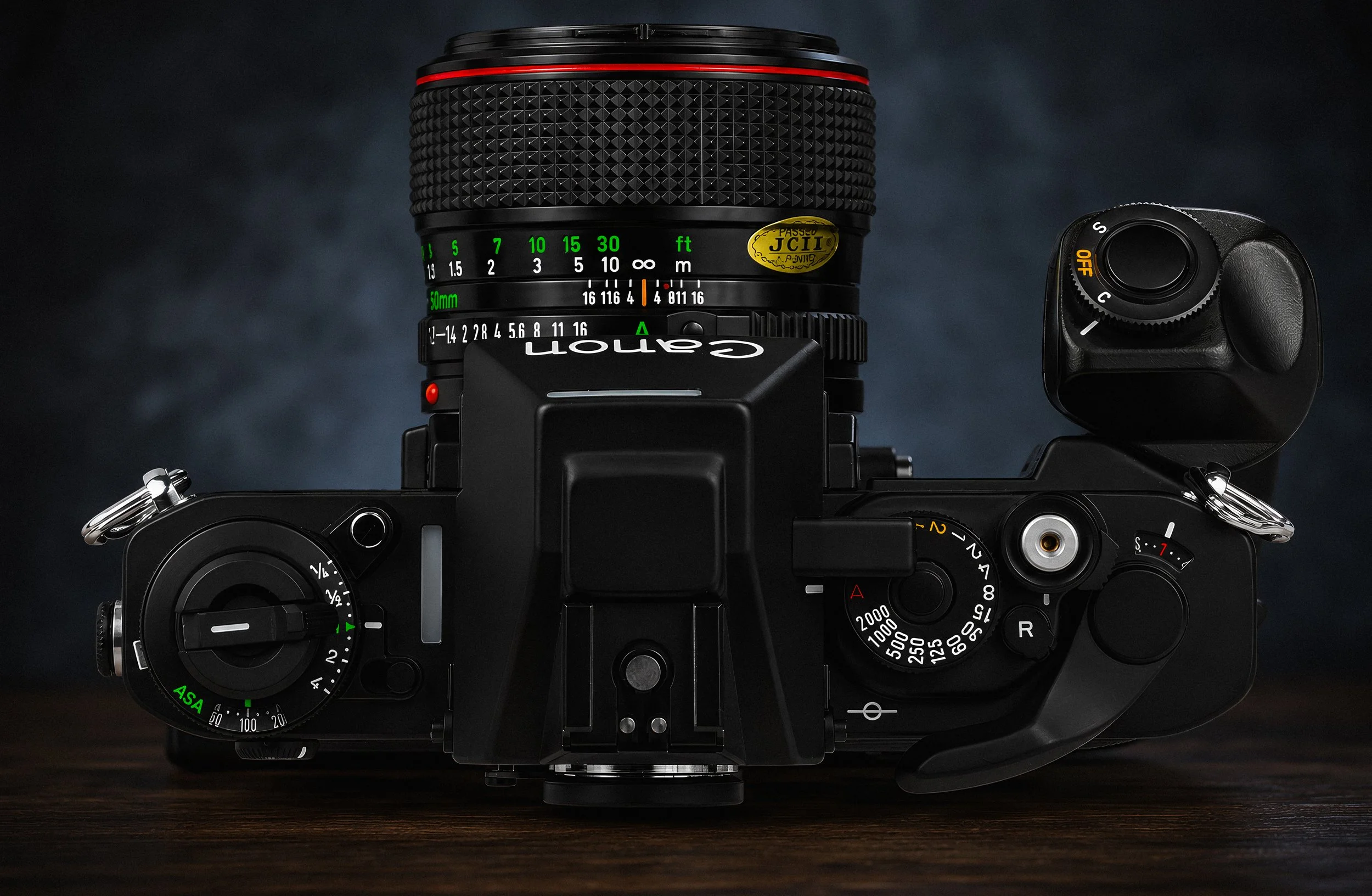

The top plate is where it’s all at. Working from left to right, there’s the Film Rewind Knob and Crank. The camera back release is incorporated into the rewind mechanism. Integrated around the rewind assembly, there’s the Film Speed (ISO/ASA) Dial and Exposure Compensation Dial.
The centre is dominated by the Interchangeable Viewfinder, which reveals the focusing screen when removed. There are two Finder Release Buttons – located on either side of the Finder and the Accessory Shoe (Hot Shoe) built into the Eye-Level Finder FN and AE Finder FN.
To the right of the Finder, the main cluster of controls: Shutter Speed Dial, Frame Counter, Film Advance Lever, Shutter Release Button with cable release thread, Shutter Release Lock Ring with A / L / S positions for normal operation, lock and self-timer, and the Multiple Exposure Lever.
These controls provide direct access to all normal photographic functions without removing the camera from the eye. The shutter release combines metering activation, exposure release and self-timer operation through its surrounding control ring.

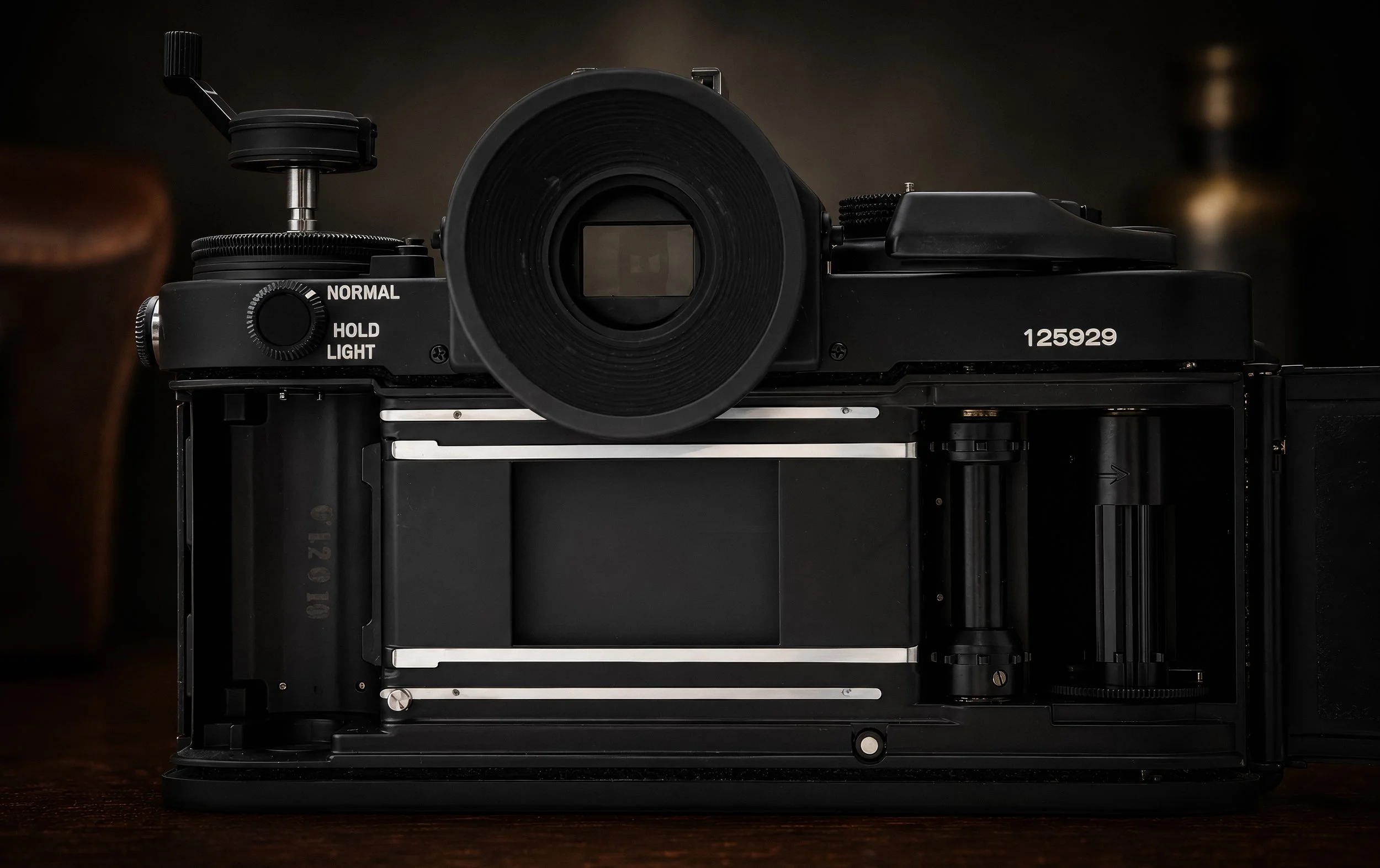

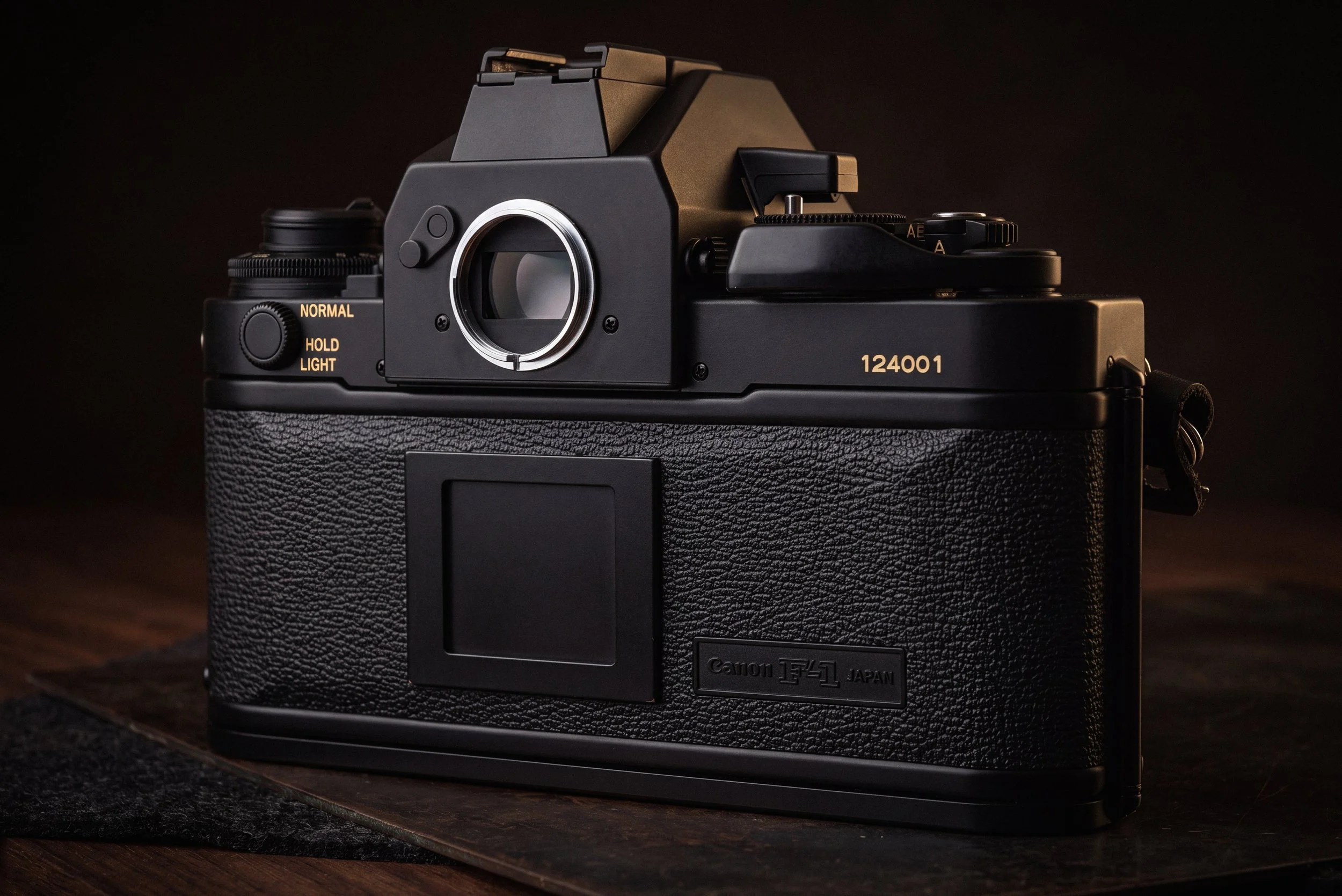

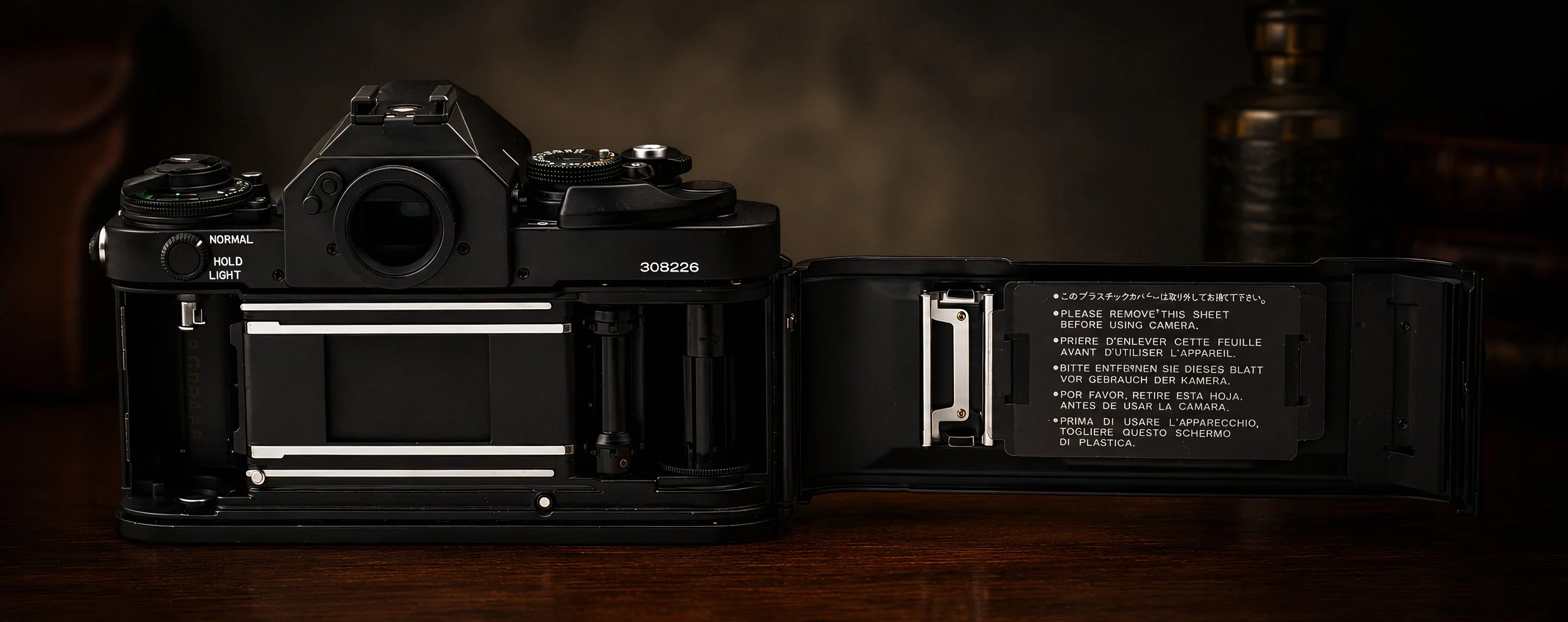

Looking at the back of the camera: from the upper left, the Meter Mode Selector has options for NORMAL, HOLD and LIGHT. The detachable Finder is in the centre, with an Eyepiece Shutter Lever (on Eye-Level and AE finders), and the viewfinder Eyepiece itself. Below this top row, the film back with its Film Reminder Memo Holder. The door hinges are on the right side of the body.

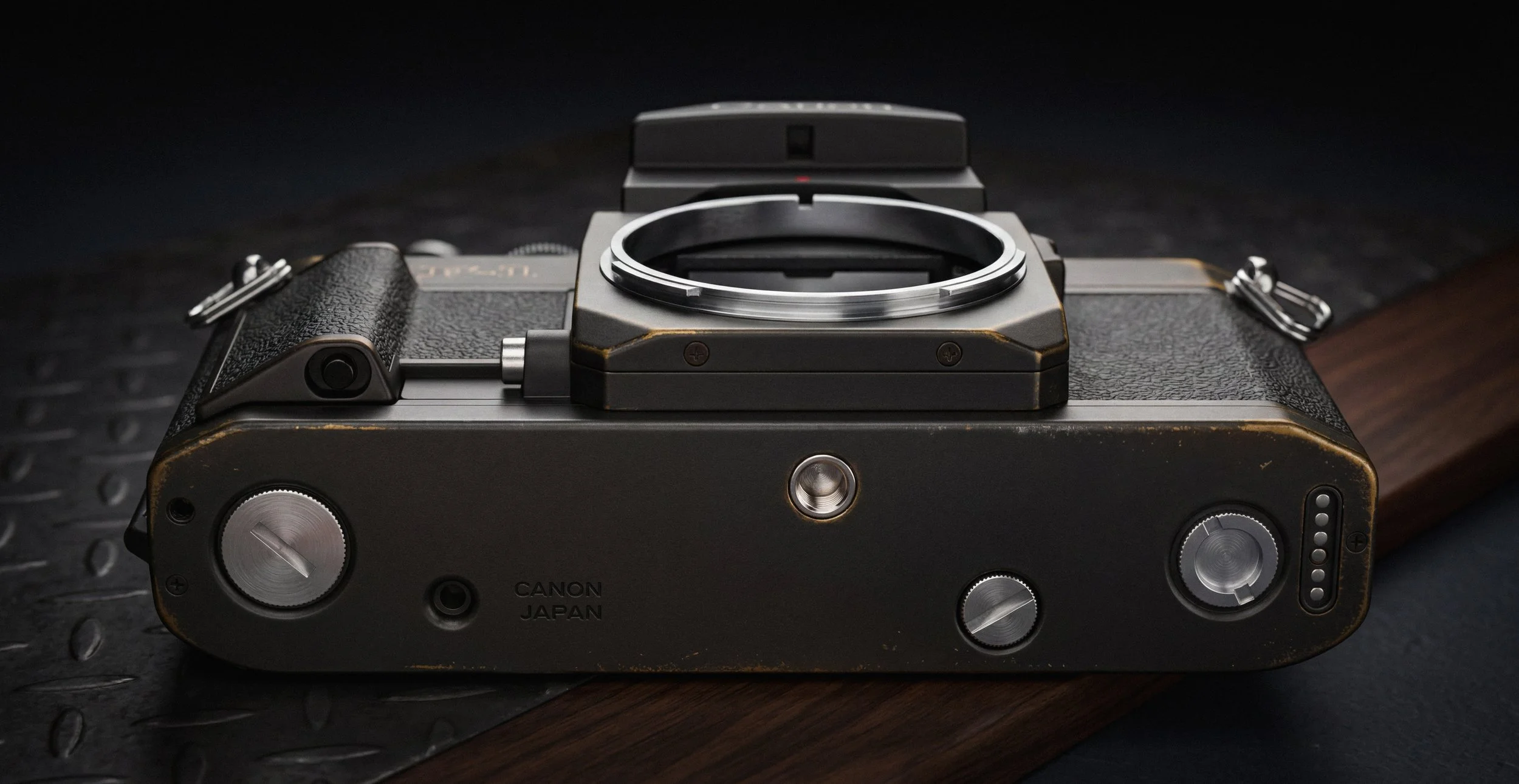

The underside of the camera contains relatively few controls but several important fittings: from the left (in the baseplate image), the Winding Coupling Cover and the recessed film rewind pin. Also, the Action Grip release button is visible when this is attached. In the centre, the ¼-inch Whitworth tripod socket, and across to the right, the AE Coupling Cover, the Rewind Coupling Cover, and the Winder & Motor Drive Terminals.
These fittings allow the attachment of the AE Power Winder FN, AE Motor Drive FN, and other professional accessories, while keeping the body weather-resistant when used without them.
Motor Drives

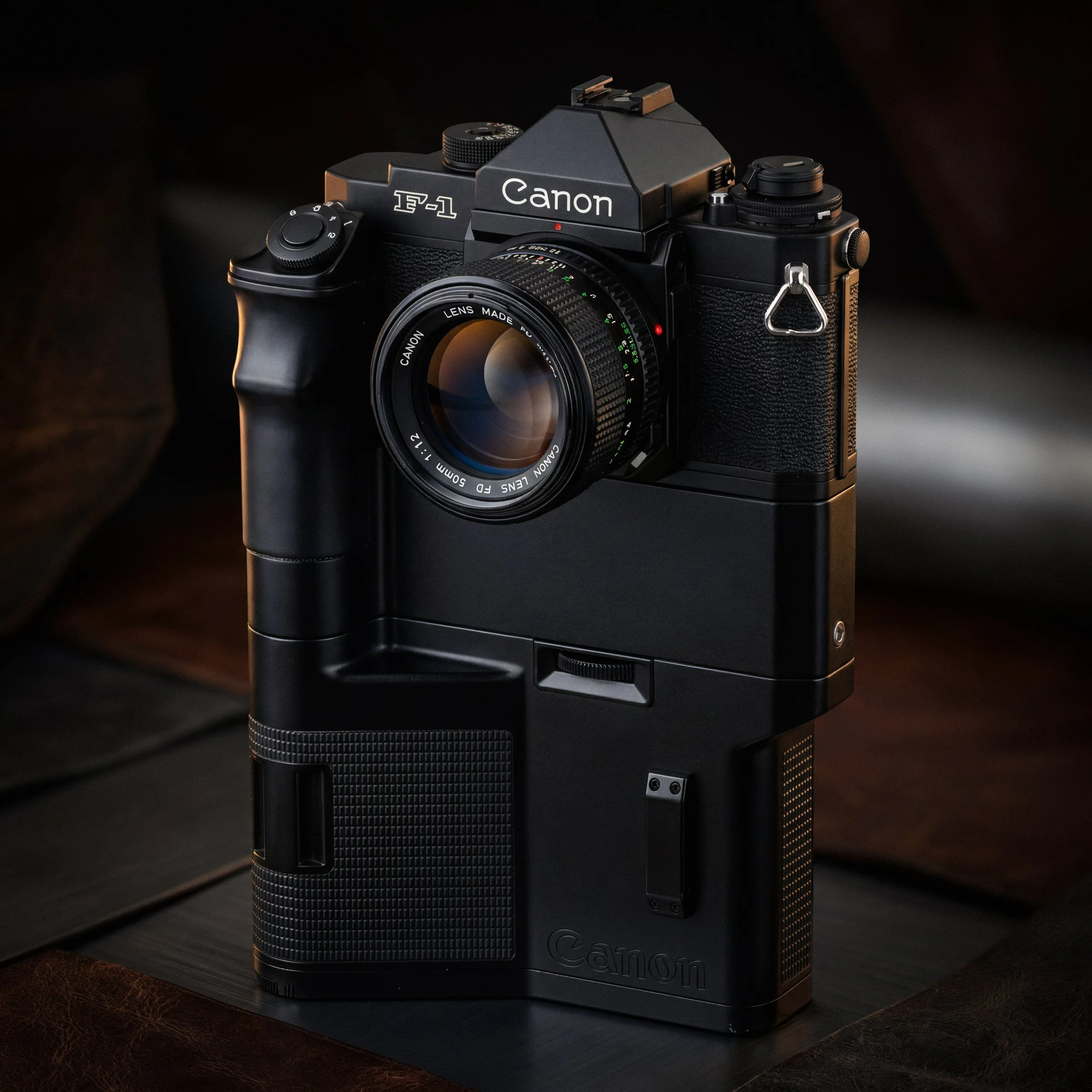

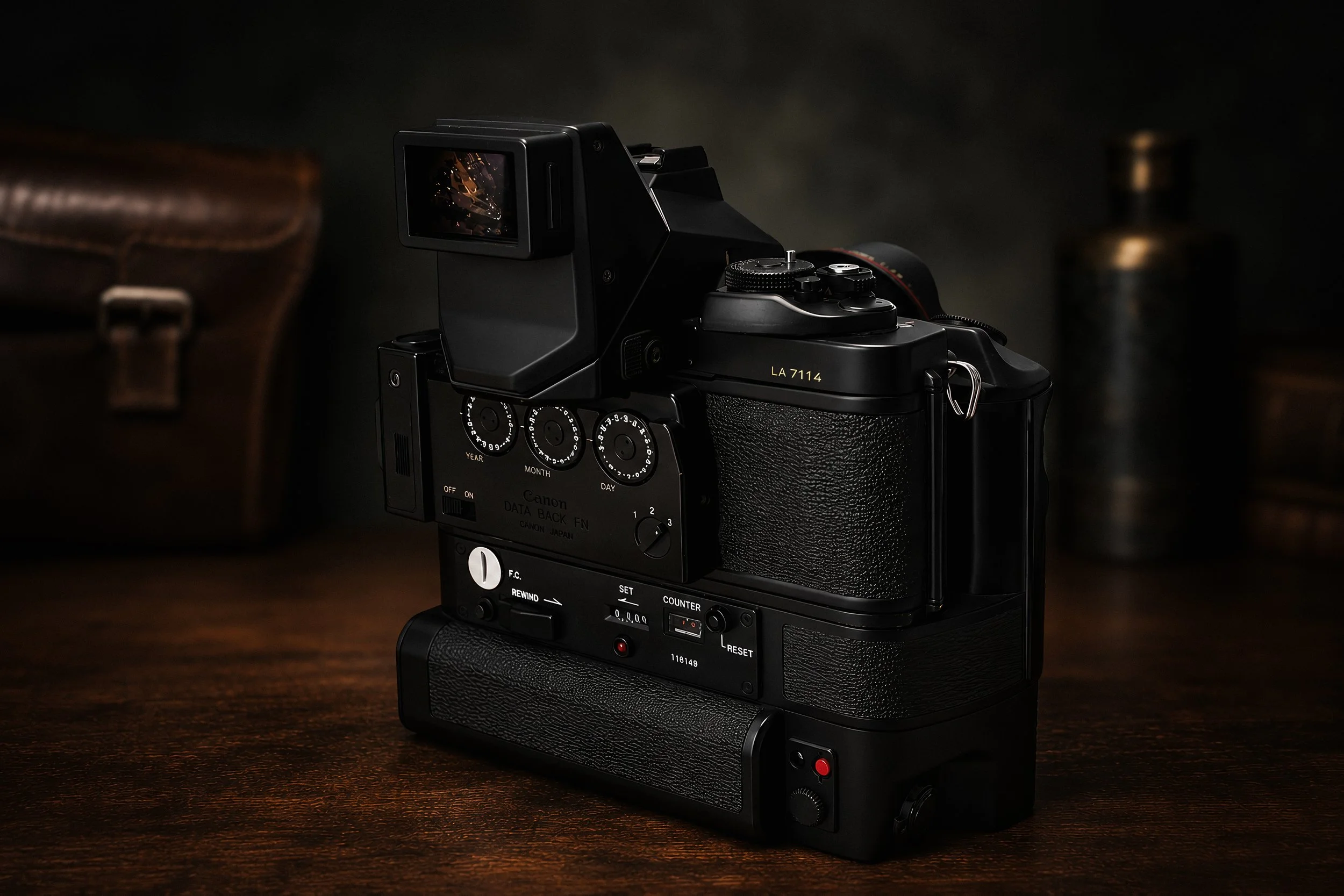

The motor drive system consists of two accessories that attach to the camera baseplate via the three coupling covers visible on the bottom (removable to expose the winding, AE, and rewind couplers underneath). The AE Power Winder FN is a smaller 2-frame-per-second unit; the AE Motor Drive FN is the full-fat 5-frame-per-second unit with three separate power sources available — the Battery Pack FN (AA cells), the Ni-Cd Pack FN (rechargeable, 4.5fps), and the High Power Ni-Cd Pack FN (rechargeable, full 5fps).
Either accessory, when attached, converts the camera to shutter-priority AE by adding the aperture-drive coupling that the New F-1's own body lacks — a slightly unusual arrangement that means shutter-priority mode is not available on the body by itself, only in combination with the motor drive or power winder. Both accessories include an integrated vertical-format shutter release button on the right-hand side of the motor drive housing, which was one of the small features that professional press users valued disproportionately once they had got used to it.
There was also, for the 1984 Los Angeles Olympics, a specialist High Speed Motor Drive Camera — a fixed-mirror variant of the New F-1 that ran at 14 frames per second and was supplied only to accredited press photographers for the Games (MIR Motor Drive FN).
The titanium shutter and the hybrid timing
Two features of the New F-1's shutter design bear slightly extended discussion, because they are unusual enough to be genuinely worth knowing about.
The first is the titanium curtain material. Most 35mm SLR shutters of the 1980s used either rubberised cloth curtains (soft, quiet, low-cost, but relatively slow-accelerating and vulnerable to pinhole damage from sunlight left focused on the shutter plane) or stainless-steel curtains (harder-wearing, faster-accelerating, but heavier and slightly noisier). Titanium is a slightly unusual choice — much lighter than stainless for a given stiffness (which allows faster acceleration and therefore more accurate high-speed timing), essentially immune to fatigue cracking over a normal shutter life, and much better than aluminium at holding a flat unbowed profile at high curtain velocities. It is also much more expensive than any of the alternatives, which is why Canon's use of it in the New F-1 was a genuine engineering decision rather than a marketing gimmick.
The four-axis (four-spindle) shutter framework — Canon used four rather than the more common three shutter spindles — was chosen to distribute the mechanical loads more evenly across the shutter frame and to allow the two curtains to be independently tensioned for precise slit-width control at the fastest speeds. The 1/2000 top speed is not, on paper, especially fast for 1981 (the Nikon FE2 of the same year offered 1/4000, and the Canon T90 of 1986 offered 1/4000), but the accuracy and repeatability of the New F-1's shutter timing at all speeds are noticeably better than any of its contemporaries, and a properly-serviced New F-1's shutter will hit its rated speeds to within roughly 1/6 stop across the entire range — a level of precision that most electronic SLR shutters of the same era did not routinely achieve.
The second is the hybrid electromechanical timing split. In a purely mechanical shutter, all speeds are timed by mechanical escapement or governor — small clockwork trains driven by the mainspring, with different escapement ratios for different speeds — and the mechanical timing tends to be slightly less accurate at very slow speeds (where the escapement has to run for long enough that small variations in friction and lubricant viscosity accumulate) and slightly more accurate at fast speeds (where the whole timing sequence completes before any significant friction variation can accumulate). In a purely electronic shutter, all speeds are timed by a quartz oscillator reference driving an electromagnet that holds the second curtain in the cocked position for a precisely metered delay — which is extremely accurate at any speed but requires a functioning battery for every exposure.
Canon's hybrid split gets the best of both worlds: mechanical timing for the fast speeds where it is inherently accurate anyway and where battery-independent operation is genuinely useful, electronic timing for the slow speeds where mechanical escapements struggle and where the small battery draw is not a concern. The transition happens at 1/60 (the fastest electronic speed) and 1/125 (the slowest mechanical speed), and the small mechanical detent that the shutter dial passes through as it crosses this transition is one of the tactile pleasures of using a New F-1.
The third feature worth mentioning, which is slightly separate from the shutter itself but connected to the same design philosophy, is the mechanical shutter release. The shutter release button on the top-right of the camera is a two-step electromagnetic release in normal operation — a light press activates the meter, a full press fires the shutter through an electromagnet that releases the mechanical shutter train — but when the battery is removed from the camera the release reverts to being a purely mechanical release, in which the button acts directly on the shutter release lever with no electromagnetic assistance. This is the mechanism that allows the camera to function at mechanical speeds without a battery; it is a small piece of engineering that most users will never notice, but its absence would completely undermine the utility of the mechanical-speeds-work-without-a-battery design.
The lenses
The example photograph at the end of this article was taken with a New FD 50mm f/1.2 L, Canon's most technically ambitious 50mm ever produced under the FD mount and one of the most extraordinary standard-focal-length lenses ever designed for any 35mm camera. Its role in the construction of the sample frame warrants a slightly extended discussion, both for the lens's own sake and for the broader context of Canon's late-FD super-speed 50mm lineage.
The confusing bit of naming is that Canon produced three separate super-speed 50-55mm f/1.2 lenses over the fourteen-year run of the FD mount, which photographers routinely confuse with one another. The first was the original FD 55mm f/1.2 of March 1971 — a 55mm f/1.2 SSC lens. The SSC designation refers to Canon's Super Spectra Coating multi-layer anti-reflection process, introduced across the FD lineup from 1973 onwards. The lens was released alongside the original F-1, and was produced in two variants: a standard 55mm f/1.2 SSC version with 7 elements in 5 groups; and from March 1975, a substantially rarer 55mm f/1.2 SSC Aspherical version that featured 8 elements in 6 groups, with a hand-ground aspherical second element and a floating rear group.

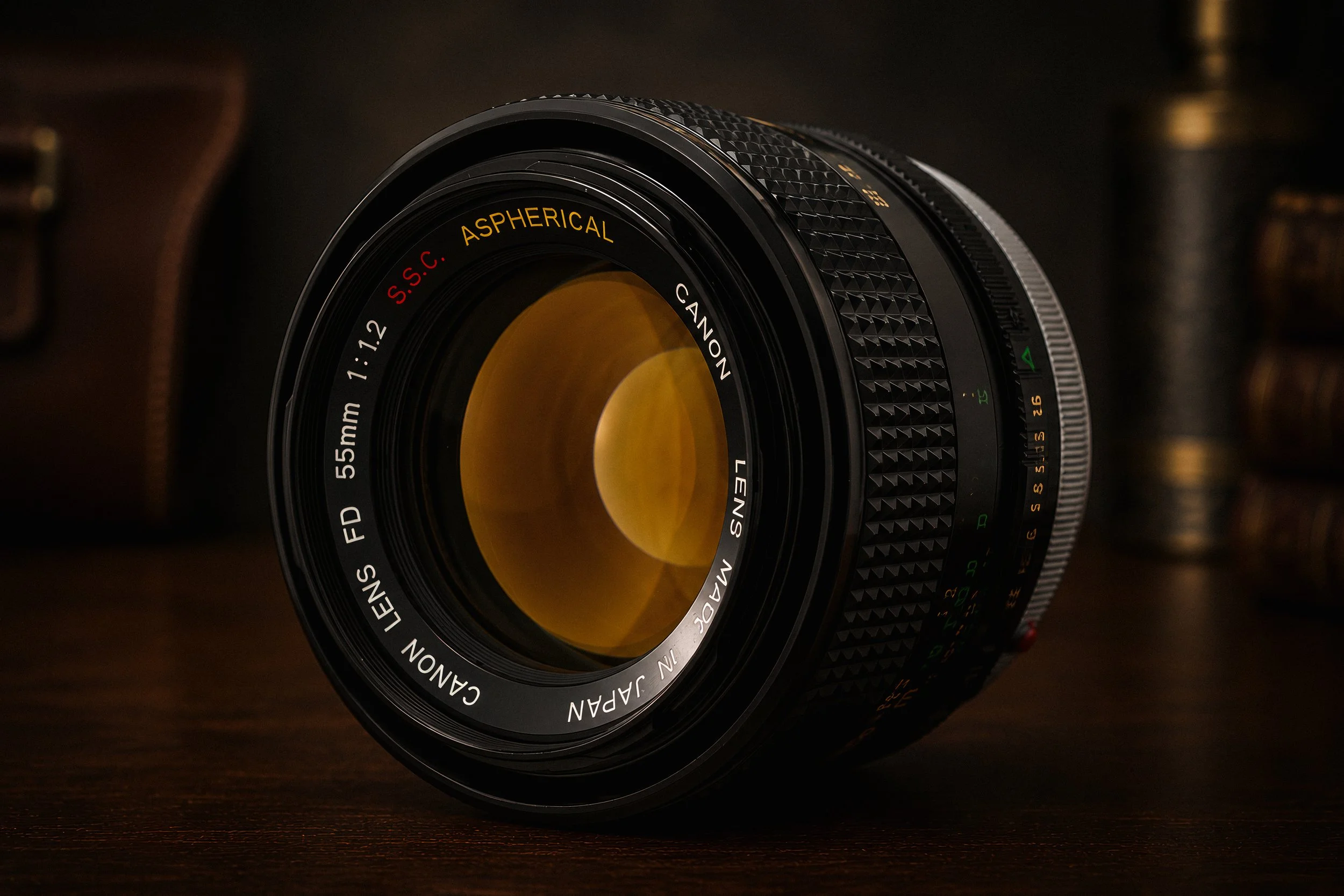

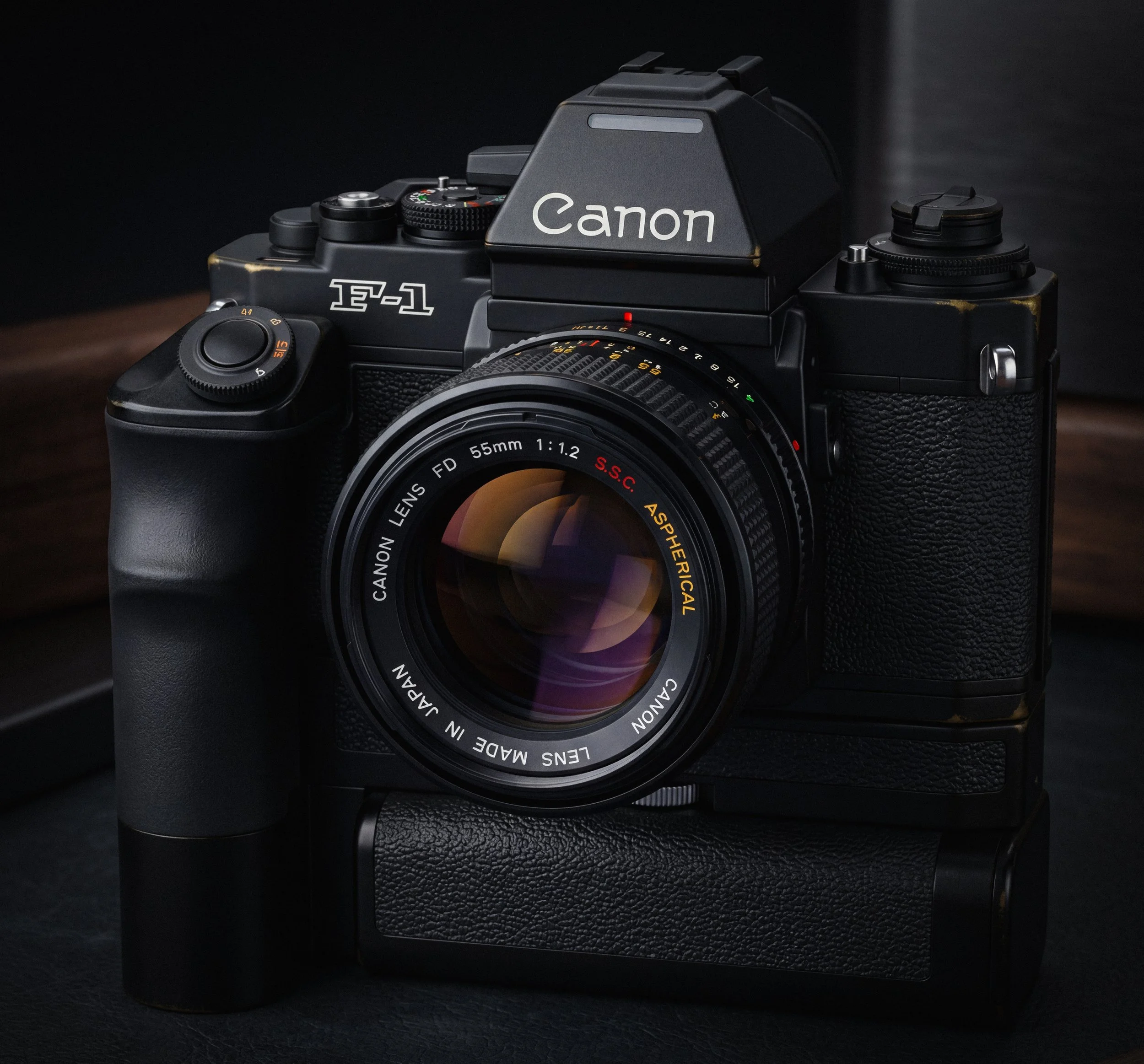

The aspherical version was, at launch, the first commercially-produced aspherical-element interchangeable SLR lens in the world; it sold at 80,000 yen in 1975 (against 50,000 yen for the standard SSC version) and it is now, because of its rarity, its historical significance, its optical performance, and its cachet as an early Canon L-lens-in-all-but-name, one of the most sought-after and expensive FD lenses of any focal length. These routinely sell for $2,500 to $3,500 for a clean, working example, and occasionally much more. The aspherical uses thorium-oxide-doped high-refractive-index glass in one of its elements, which makes the lens very mildly radioactive (an issue for storage but not for use) and causes gradual yellowing of the glass over decades that can be reversed by a few days of UV exposure (Canon Camera Museum, Nikolaus-Burgard, Wikipedia).
The second ‘super-fast fifty’ was the New FD 50mm f/1.2, released in 1980 as part of Canon's transition from breech-lock FD mounts to the New FD bayonet-style mount. This is the standard super-speed normal: 7 elements in 6 groups, no aspherical elements, 52mm filter thread, 380g, and priced at around $320 new in 1986. It is a substantially smaller and lighter lens than the older 55mm f/1.2 SSC, in the tradition of the New FD lens redesigns that made the whole late-FD lineup smaller and lighter than the earlier chrome-nose FD versions. Wide open at f/1.2, it is not quite the equal of the aspherical 55, but stopped down to f/2 and beyond, it is a genuinely sharp and capable working lens with pleasingly rendered out-of-focus areas and the slight softness at f/1.2 that most photographers use super-speed lenses specifically to obtain (Canon Classics).

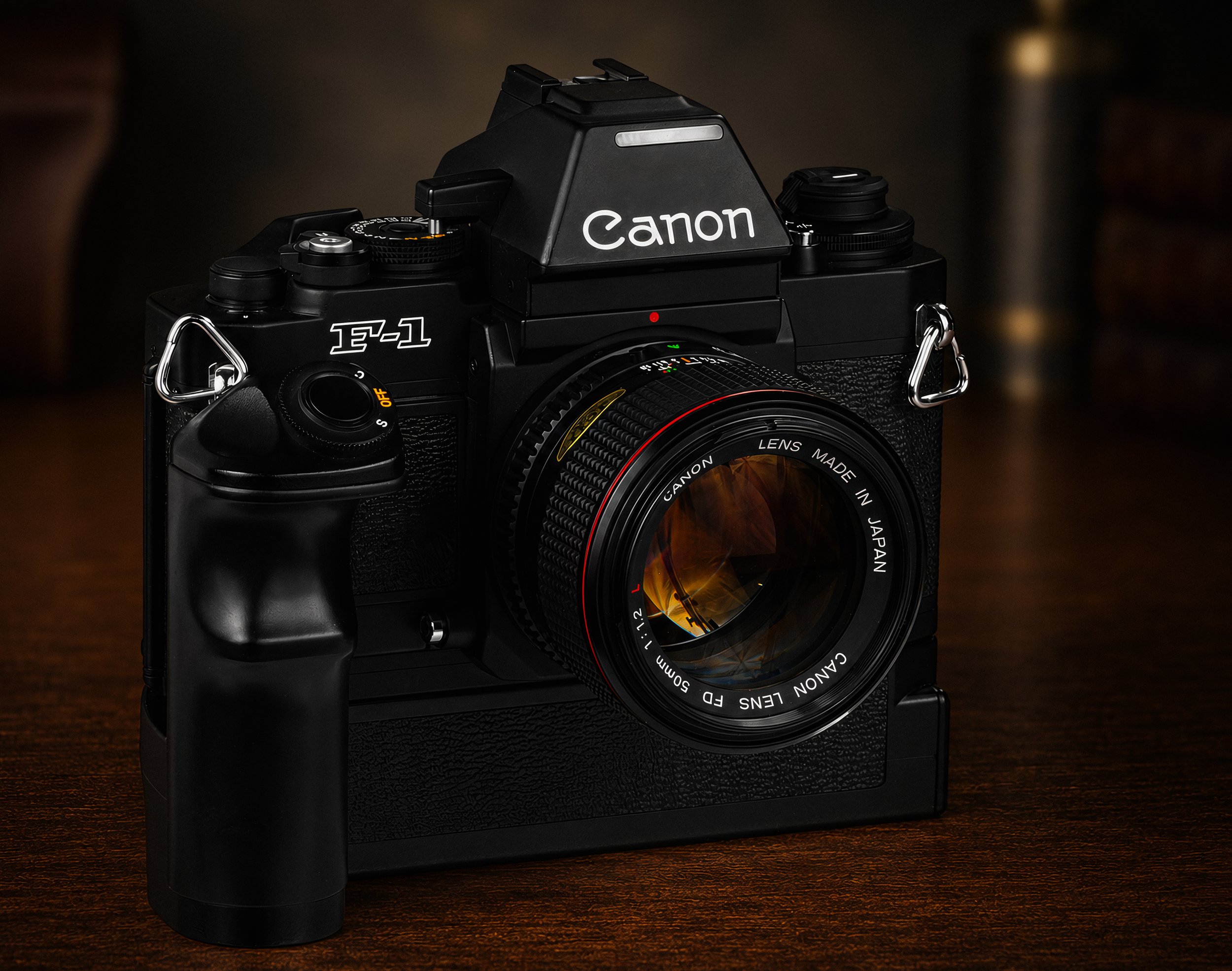

The third lens — the one on the front of the camera taking the New Forest shot below — was the New FD 50mm f/1.2 L, released in October 1980 and rolled out into full production over the following year. This is the aspherical, floating-element super-speed 50mm — 8 elements in 6 groups with a moulded-glass aspherical element and a floating rear group for close-focus correction — priced at a very substantial $857 in 1986 (against $170 for the New FD 50mm f/1.4 and $320 for the non-L f/1.2).
It carries the red "L" ring at the front of the barrel that would become the standard marking for Canon's professional-tier lenses through the entire EF and RF mount generations afterwards — the L designation itself standing, according to various Canon sources, for "Luxury," and identifying at Canon's own internal engineering level the lenses judged to combine the highest optical performance with the most demanding construction standards the FD system could support. The 50mm f/1.2 L was the second-ever L lens — the first was the FD 300mm f/2.8 L of 1980 — the first standard-focal-length L lens, and one of the very few L lenses in the FD lineup that made it into general production before the mount was retired in favour of EF in 1987.
Optically, the 50mm f/1.2 L is regarded by many photographers as the finest 50mm super-speed prime ever produced by anyone. The floating-element rear group solves the close-focus performance problem that afflicts most fast normals: a conventional 50mm f/1.2 optimised for infinity focus will typically be noticeably soft at its minimum focus distance because the aberration corrections applied to the optical design are only strictly valid at one subject distance. It achieves this by moving the rear group independently of the front group as the lens focuses, thereby maintaining aberration corrections across the entire focus range.
The moulded-glass aspherical element corrects the spherical aberration that is the classic performance-limiting problem of super-speed lenses at their widest aperture, producing an image that is essentially sharp from centre to corner even at f/1.2 — a level of wide-open performance that no other 50mm f/1.2 of the era approached. This was Canon's second use of the moulding technique after the FD 24mm f/1.4 L of 1979.
The floating group also uses no radioactive glass, unlike the older 55mm f/1.2 SSC Aspherical, and does not yellow with age. Canon quoted specifications of 380g weight, 52mm filter thread, 65mm diameter, 50mm length, 50cm minimum focus and f/16 minimum aperture, with the red-banded BS-52 dedicated lens hood as a standard accessory (Canon Classics, Ken Rockwell).
The practical effect of all of this on the sample frame is a photograph that has the classic "L-lens rendering" — sharp central subject, cleanly-defined out-of-focus areas without the characteristic double-image bokeh that afflicts most super-speed lenses, faithful colour rendition, and the slightly three-dimensional "pop" that separates a well-rendered subject from its background in a way that no other technical characteristic of a photograph quite manages to. It is exactly the sort of lens that a serious late-FD-era photographer would have wanted on the front of the flagship 35mm SLR body — which is presumably why Canon made the 50mm f/1.2 L, and why photographers who kept the FD system going through the EOS transition tended to have one on the top of their most-used lens list.
New Forest Camping, June 2008
The sample frame that accompanies this article was taken in June 2008, on a family camping trip to the New Forest, and shows a five-year-old Monty sitting cross-legged on the grassy bank of a small pond, holding two sticks, and looking directly at the camera with the knowing, slightly amused expression that he would adopt when he realised he was being photographed. He is wearing a dark navy long-sleeved cotton top and blue denim jeans, with a pair of blue wellies that are just visible below the knee where he is sitting. Behind him, the pond stretches into the middle distance, its surface a muddy brown, reflecting the summer sky and the alder-and-willow bank on the far side, and a small alder sapling rises along the right-hand edge of the frame.
I made the shot with a New F-1 body I had bought on eBay in 2007 as part of the vintage-camera-collecting hobby that took hold of me in 2004 and continued for the rest of the decade. The lens of the day was the New FD 50mm f/1.2 L — the red-banded aspherical super-speed prime described in the previous section, which I had bought around the same time as the flagship-lens complement to the flagship-body New F-1. It had rapidly become the lens I most enjoyed using with the FD system. The film was almost certainly Kodak Gold in a 24-exposure roll — the standard high-street consumer C-41 that Boots and Tesco were still selling in 2008, and which gave the slightly yellowish warmth and the softly-defined highlight rolloff that has become the immediately recognisable "family holiday in the mid-2000s" look.
The technical rendering of the frame repays close inspection. The lens is stopped down — my guess is somewhere in the region of f/4 or f/5.6 — but the depth of field is still shallow enough that the pond surface behind Monty falls into the softly-blurred out-of-focus rendering that only fast normals produce, with the small ripples and reflections on the water reduced to a diffuse but characterful painterly wash; Monty's face and hands are cleanly sharp, the two sticks resolved down to the small dark cracks and knot-holes in the wood, and the small alder sapling on the right of the frame sits just at the edge of the defocused region in the way that only floating-element close-focus corrections manage.
The Kodak Gold has done its usual thing to the colour palette — the pond water is a slightly warmer brown than it was in reality, the grass on the bank a slightly deeper green, Monty's navy top rendered with the small warm undertone that C-41 tends to give to dark blues, and the whole frame carrying the subtle overall warm cast that made Kodak Gold the family-snapshot film of the era. The New F-1's SPC meter and titanium shutter have delivered the exposure exactly as intended, with no perceptible under- or overexposure and no shake or vibration blur despite a hand-held shot with a slow-ish shutter and middle aperture.
What it's like to own one now
The New F-1 in 2026 is, uniquely among vintage 35mm SLR flagships, a camera that has hardly aged at all. Clean working bodies sell in the UK for around £350-£600 with the standard Eye-Level Finder FN, rising to £500-£900 with the AE Finder FN in place, and with substantial further premiums for the various motor-drive configurations, the rarer waist-level and speed finders, and the specialist focusing screens. This is roughly two to three times the price of a Canon A-1 or FTb of similar cosmetic condition, and roughly comparable to the price of a Nikon F3 or Pentax LX of equivalent condition — which is broadly where the New F-1 has sat on the used market since around 2010, and where it looks likely to continue to sit for the foreseeable future.
What you get for the money is a camera that will still, four decades after it was made, do everything that any modern professional photographer would actually want a 35mm film camera to do. The titanium shutter still runs to spec, the SPC meter is still accurate, the finder is still bright and cleanly marked, the FD mount will still accept the entire FD lineup, and the mechanical-timing backup speeds still work with the battery removed. There is essentially no way to hurt a New F-1 through ordinary use — the chassis will absorb drops that would break most cameras, the paint will patina rather than chip, and the electronics have proven remarkably durable over the four decades since the earliest bodies were shipped.
The failure modes to consider if you are thinking of buying one are essentially two, and both are relatively minor. First, the rubberised shutter curtain buffers — small foam pads that cushion the end-of-travel of the shutter curtains against their stops — degrade over time and can produce a slightly bouncy shutter action or, in extreme cases, a shutter that does not fully close at the fastest speeds; this is repairable at any competent Canon service centre for around £150-£250 as part of a general service, and any body that has been serviced within the last decade should be free of the issue. Second, the light seals around the film door and mirror box are the standard 1980s black-foam type that turn to a sticky black goo with age, and any unmaintained example will need a light-seal replacement kit (around £15 and half an hour's work with a cocktail stick) to be reliably light-tight. The electronics themselves are, remarkably, essentially bulletproof — Canon service centres in the early 2000s reported that the SPC metering circuits and the electronic shutter timing were both essentially unfailed across the entire production run, and forty-four years on, the New F-1 is one of the small number of electronic 35mm SLRs whose electronic components have proven as durable as its mechanical ones.
The focusing screens are worth mentioning as an ownership consideration: any given New F-1 will come with whatever screen the previous owner was using, and if that screen does not carry the metering pattern (spot / partial / centre-weighted) or the focusing aid (split-image / microprism / plain matte) that you want, you will need to source a replacement screen. Clean New F-1 focusing screens are available on the used market for £20 to £60 each, depending on type; the rarer specialist screens (the architectural grid, the cross-hair, the microprism-only for use with telephoto lenses) can cost substantially more. The screen tool that Canon supplies with each new screen is small, plastic, and easy to lose; if you buy a body with a spare screen and no tool, factor in an extra £5- £10 for a replacement tool.
The batteries are still made — the 4LR44 alkaline and 2CR-1/3N lithium options are both routinely stocked at high-street pharmacies and photographic suppliers in 2026 — and a fresh cell will run the camera for around a year of normal use, with the mechanical fallback speeds always available should the battery run down unexpectedly. The motor drives are still readily available on the used market, though the Ni-Cd battery packs will typically need re-celling (a straightforward job for any competent battery re-celler at around £30-£50 per pack).
What using a New F-1 in 2026 actually feels like is difficult to convey without sounding slightly overwrought — the phrase "the last of the great mechanical cameras" gets used a lot, and the New F-1 is not strictly mechanical, but the underlying sentiment is broadly accurate. It is a camera that has been engineered rather than styled, in which every small mechanical detent and every small tactile weight-bearing element feels considered rather than incidental, and in which the sum of forty-four years of continuous refinement produces a body that does not feel like a period piece. It still feels like a camera that a working professional could pick up and use for a day's serious photography without noticing that the design is any older than yesterday. That is, in the end, why the New F-1 in 2026 is still worth what it costs, and why the small community of working film photographers who have kept the New F-1 in circulation across the last four decades continue to regard it as one of the two or three best 35mm cameras ever made.
