Canon AT-1
Canon AT-1: The Quiet One

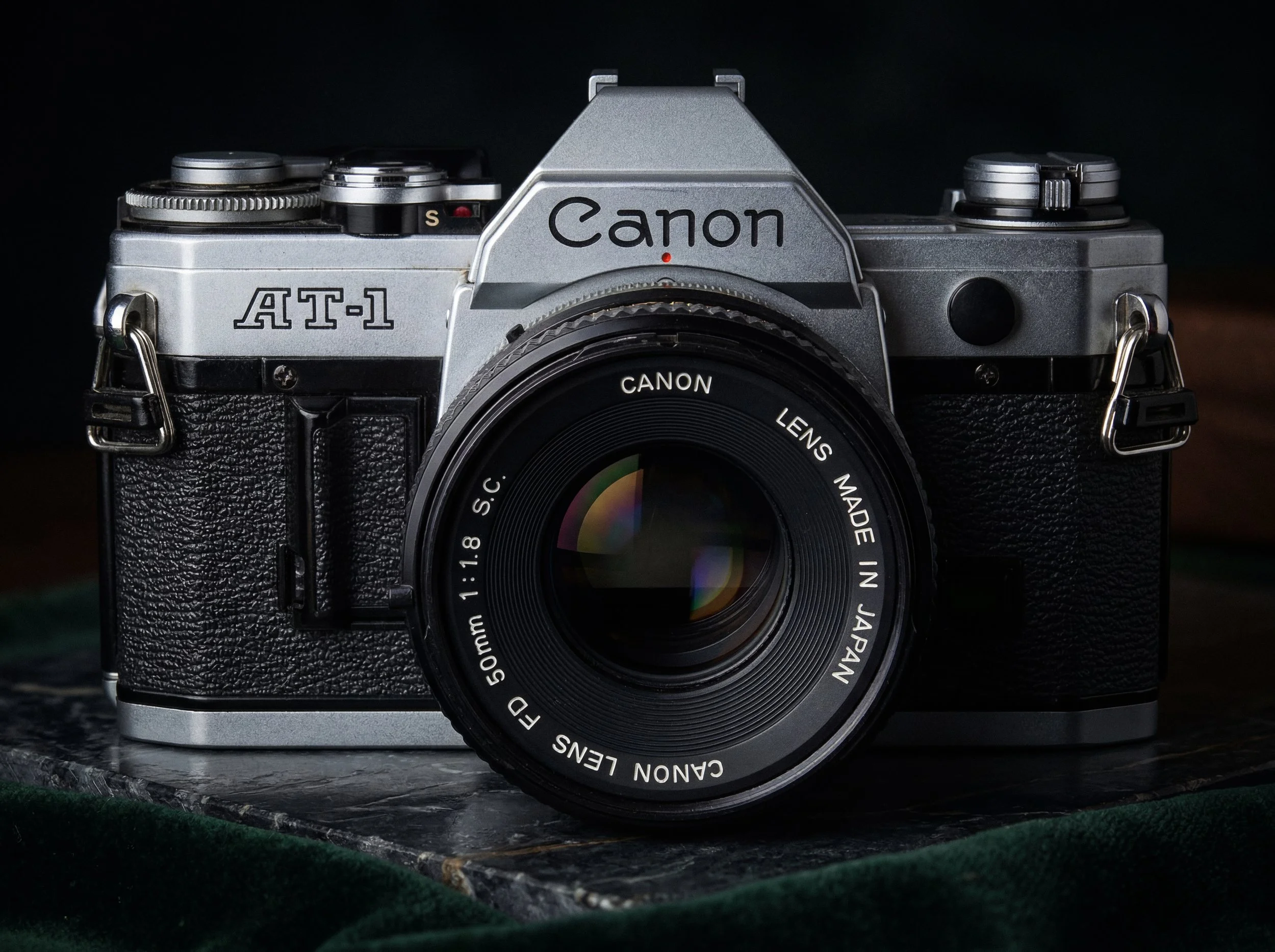

If you ask a reasonably knowledgeable film photographer to name the Canon A-series cameras, they will usually rattle off the AE-1, the A-1, the AE-1 Program, the AV-1, and perhaps the obscure AL-1 with its electronic focus-confirmation system. There is one model they will almost always forget, and it is the one in the photograph above. The Canon AT-1, launched in December 1976, was Canon's all-manual entry-level A-series body — a camera built specifically to compete with the Pentax K1000 in the American student market, sold almost nowhere else, discontinued after a relatively short production run, and quietly forgotten by everyone except the people who actually own one (Amateur Photographer).
It is also, on closer acquaintance, one of the most pleasingly under-rated SLRs Canon ever made. I bought my first one on eBay in October 2004, near the start of my collecting habit — at the time I had recently realised, with some astonishment, just how cheap good film cameras had become in the aftermath of the digital transition, and the AT-1 was the first Canon I bought specifically because I had never owned one when it was current. The Rafferty’s Wheelbarrow frame at the end of this post was made within a week of unpacking it, on a roll of Agfa Vista picked up at the local supermarket for a couple of quid.
A camera Canon almost didn't release
The AT-1 exists because of one peculiar feature of the Japanese camera market in the mid-1970s, which was that nobody who was anybody bought a fully manual SLR if there was an alternative. In Japan, the AE-1 of April 1976 had been an instant best-seller precisely because it offered shutter-priority autoexposure — a feature seen as modern, sophisticated, and the obvious replacement for the old match-needle workflow. Manual-only cameras were viewed in the domestic market as either professional-grade instruments (Nikon F, Canon F-1) or strictly entry-level, with little market in between (Canon Camera Museum).
In the United States and Europe, however, the picture was completely different. The Pentax K1000, launched in mid-1976 (just two months after the AE-1), was rapidly taking over as the standard student camera in American photography schools. It was simple, cheap, fully manual, almost entirely mechanical, and basically indestructible — three of the four big Western photo schools recommended it as the first camera for incoming students, and the fourth held out only because they recommended the Pentax Spotmatic instead. By late 1976, Canon's US distributors were watching their newly-launched AE-1 sell briskly to enthusiasts while losing the entire student segment to Pentax. They wanted a stripped-down A-series camera that could be priced and pitched directly against the K1000, and they wanted it quickly (Mike Eckman on the K1000).
Canon's answer was the AT-1, released in December 1976 — only eight months after the AE-1 itself, an unusually fast follow-up by the standards of 1970s SLR development cycles. The camera was essentially an AE-1 with the shutter-priority circuitry removed and a more conventional match-needle viewfinder display fitted in place of the AE-1's automatic-aperture indicator. Pretty much everything else — the body shell, the shutter mechanism, the lens mount, the film transport, the metering cell, the battery, the self-timer, even the shutter release with its locking ring and red AE indicator (which on the AT-1 just means "metered" rather than "automatic") — was carried straight over from the AE-1. From an engineering standpoint, the AT-1 took only the time required to design a different shutter-speed control circuit and a different viewfinder readout. From a marketing standpoint, it gave Canon's overseas distributors what they needed without forcing the parent company to invest in a new platform (MIR, Imaging Pixel).
The camera was sold primarily in the United States, with some distribution into Canada, the UK, Australia, and parts of continental Europe. It was never marketed seriously in Japan, where the all-manual concept was considered slightly behind the times — Japanese buyers who wanted a manual-only camera tended to buy the older mechanical FTb or the new F-1, both of which were positioned as serious tools rather than budget options. Production ran from December 1976 to around 1985, but the bulk of sales occurred in the first two or three years; by the early 1980s the AT-1 was being quietly outsold by the AE-1 (which had become cheap enough to be a student camera in its own right) and the new AE-1 Program. Canon never published precise sales figures for the AT-1 separately from the rest of the A-series, but the consensus estimate is that it sold somewhere between one and two million units over its production life — a perfectly respectable number that nonetheless looked modest next to the five million AE-1 bodies Canon eventually shipped (Camera Legend).
The body and the shared A-series chassis
The AT-1 is built on the same chassis as the rest of the A-series — a die-cast aluminium alloy body with a brass top plate, the latter finished in either chrome (as on the example pictured here) or matt black depending on the production run. The black leatherette body covering has, in most surviving examples, aged remarkably well; chrome tops mark more easily than black ones but they don't suffer from the sticky-coating problem that affects so many late-1980s and 1990s cameras. Body weight is around 590 grams empty, or roughly 650 grams with a 50mm f/1.8 mounted and a battery installed, which puts it slightly on the heavier side of the A-series — the AT-1 retains some interior bracing that the later AV-1 and AL-1 had simplified out, and it feels appreciably more substantial in the hand than its later siblings. By the standards of student cameras of the period, it sits between the Nikon FM (590g) and the Pentax K1000 (525g) in weight and well below the all-metal Olympus OM-1 (510g) in compactness, though it punches above its class for build feel.
The lens mount is the Canon FD breech-lock mount, accepting all FD and FL lenses produced from 1964 onwards. Open-aperture metering works with all FD and FDn lenses; older FL lenses require stop-down metering, which the AT-1 supports via a depth-of-field preview lever on the front of the lens-mount throat. Like all A-series bodies, the AT-1 has a hot shoe on top of the prism. It has a PC flash sync socket on the front of the top plate — like the A-1 and AE-1, but not the AV-1 and AL-1 — and the characteristic Canon branding in front of the prism.
The shutter is the same electromagnetically-controlled horizontal-travel cloth focal-plane unit as the AE-1: speeds from 2 seconds to 1/1000 second plus Bulb, with X-sync at 1/60 second. There is no mechanical fallback — the shutter requires battery power to fire at any speed including Bulb, which is one of the AT-1's quietly notable departures from the K1000 that it was designed to compete against. The K1000 was almost entirely mechanical and would happily continue firing without a battery (with no light meter, of course); the AT-1 will not fire at all if the battery is dead. For most photographers most of the time this is a non-issue, but it's an important difference in philosophy: Pentax built the K1000 as a no-electronics emergency-still-works camera; Canon built the AT-1 as an A-series body with the auto-exposure circuit deleted, and the underlying electronic dependence remained.
Power comes from a single 4LR44 6-volt alkaline cell (or the equivalent 4SR44 silver-oxide, or the older PX28 mercury cell which is no longer manufactured but for which the 4LR44 is a drop-in replacement). This is the same battery used in the AV-1 and the rest of the A-series, and unlike the older Canon FTb that used mercury cells, the AT-1 has had a stable battery supply throughout its entire production life and into the present — you can still buy 4LR44 cells at any reasonable supermarket or hardware shop. A fresh cell will run the camera for around a year of moderate use (Unique Photo).
Match-needle metering: the AT-1's defining feature
The single biggest internal difference between the AT-1 and the AE-1 is the metering system. The AE-1 has a CdS-cell, centre-weighted, full-aperture TTL meter linked to a moving-needle aperture indicator in the viewfinder, and the camera uses the meter reading to drive the shutter-priority autoexposure logic. The AT-1 has the same CdS-cell centre-weighted full-aperture meter — physically the same sensor in the same location, in fact — but the readout in the viewfinder is a classic match-needle display: a moving meter needle on the right of the focusing screen, and a circular indicator that moves up and down the scale as you change either shutter speed or aperture. When the moving needle and the indicator coincide, the exposure is correct. Above the needle's normal range is a red overexposure warning (also used for battery check), and below it a red underexposure warning.
Match-needle metering was, by 1976, the established standard for manual-exposure SLRs — the Nikon F2, Pentax K1000, Olympus OM-1, Minolta SRT-101 and all their contemporaries used it. The Canon AT-1's match-needle is a particularly nicely executed example: the needle is responsive but well-damped (it doesn't hunt the way some cheaper systems do), the scale is clearly marked, and the centre-weighted averaging pattern is identical to what the more famous AE-1 was offering at the time. Metering range runs from EV 3 to EV 18 at ISO 100 with an f/1.8 lens, which gives the camera reliable readings from dimly-lit indoor scenes (around f/1.8 at 1/15s) to bright snow or beach (f/16 at 1/1000s).
The ISO range is set from 25 to 3200 via a dial concentric with the rewind crank — pulling the outer collar of the dial upwards releases the ISO setting, you rotate to the desired film speed, and release the collar to lock. The action is, it must be said, fiddly. Several AT-1 owners' guides mention this as one of the camera's small ergonomic weaknesses (YouTube — AT-1 walkthrough).
The Controls
The AT-1 is a robustly minimalist camera by design, and the straightforward control system reflects this. On the front of the camera, there’s the battery door and latch to the left of the lens, and on the lens mount itself at the 4 o’clock position, the depth-of-field preview lever that stops down the lens — which is required for shooting with FL lenses. At the front of the top plate, to the right of the prism, lies the PC Flash Sync socket — which usually comes with a black protective cover if it has not been lost.

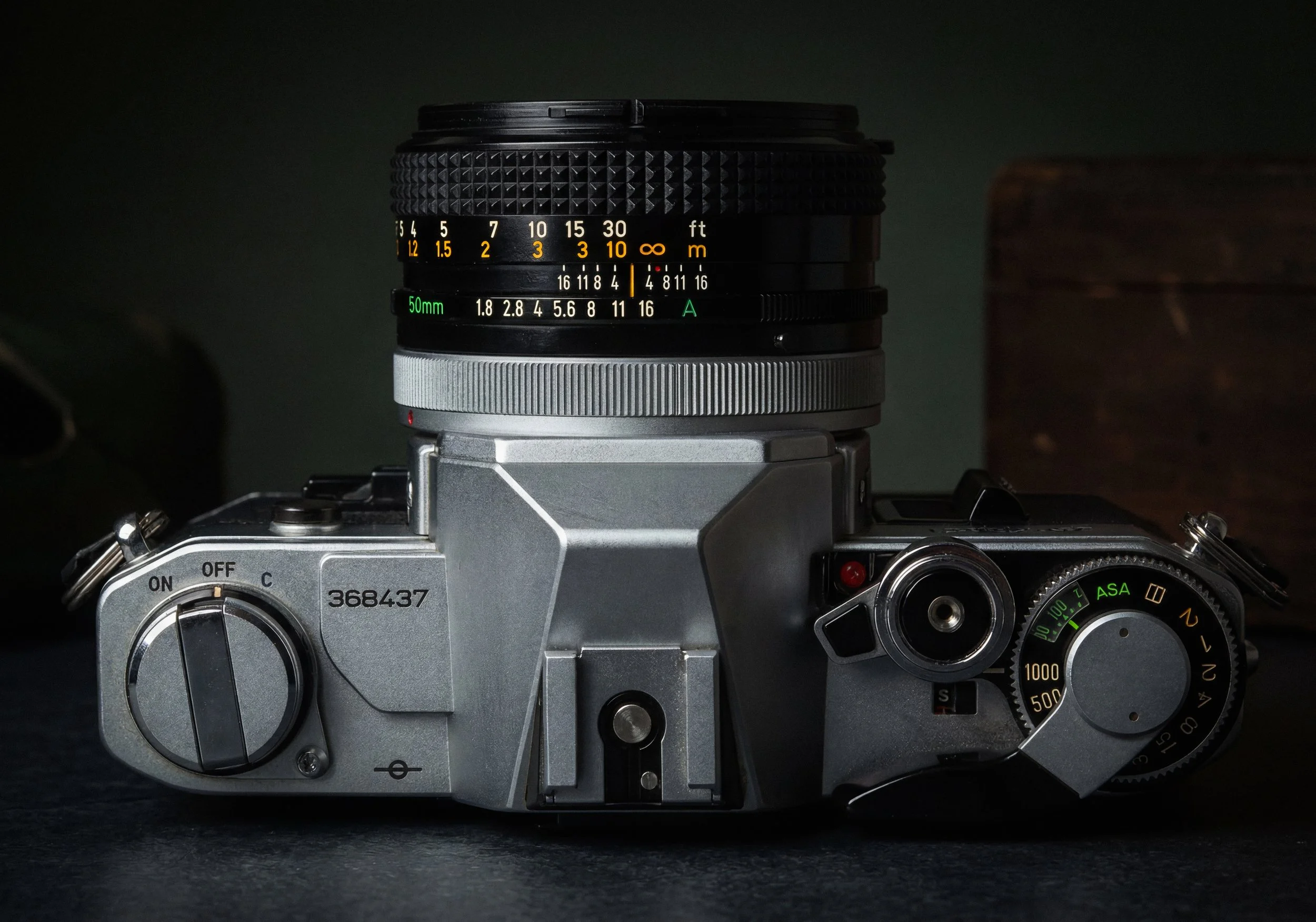

On the top plate, at the left, is the film rewind crank surrounded by the main power lever, with settings for ON, OFF and C (battery check). In the centre, the hot shoe sits atop the prism housing, and just to the right is shutter release button, with a central cable release thread and surrounded by the self-timer lever and shutter release lock. Right next the the shutter button, there is a small red LED for the self-timer and battery check functions. The small, square, frame counter window is directly behind the shutter release.
Furthest right on the top plate, the film advance lever is surrounded by the shutter speed dial with speed settings from B to 1/1000 seconds, and this control also incorporates the film-speed setting. A small window to the front of the shutter speed dial allows the ASA setting to be seen. Shutter speeds are set by turning the knurled chrome ring of the dial, but by pulling up the surround of the dial assembly and turning it, you can select a film speed from ASA 25 to 3200.

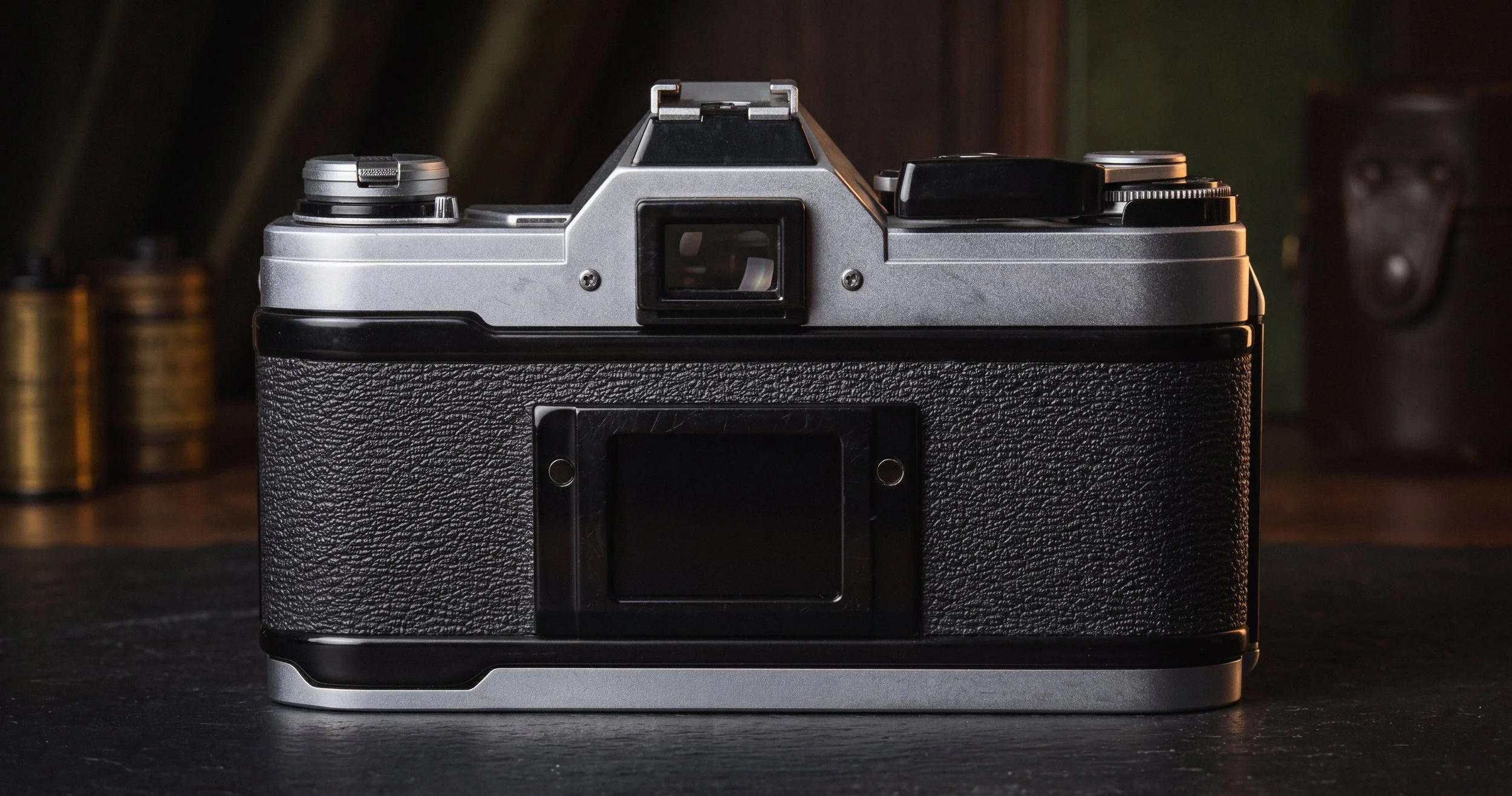

The back of the camera is completely plain, with just the viewfinder behind the prism housing, and the film door with the door latch to the left and the hinges to the right, from this viewpoint. There’s not even a window to check the film that you have loaded — instead there is a holder for displaying the end of the cardboard film packet to serve as a reminder.

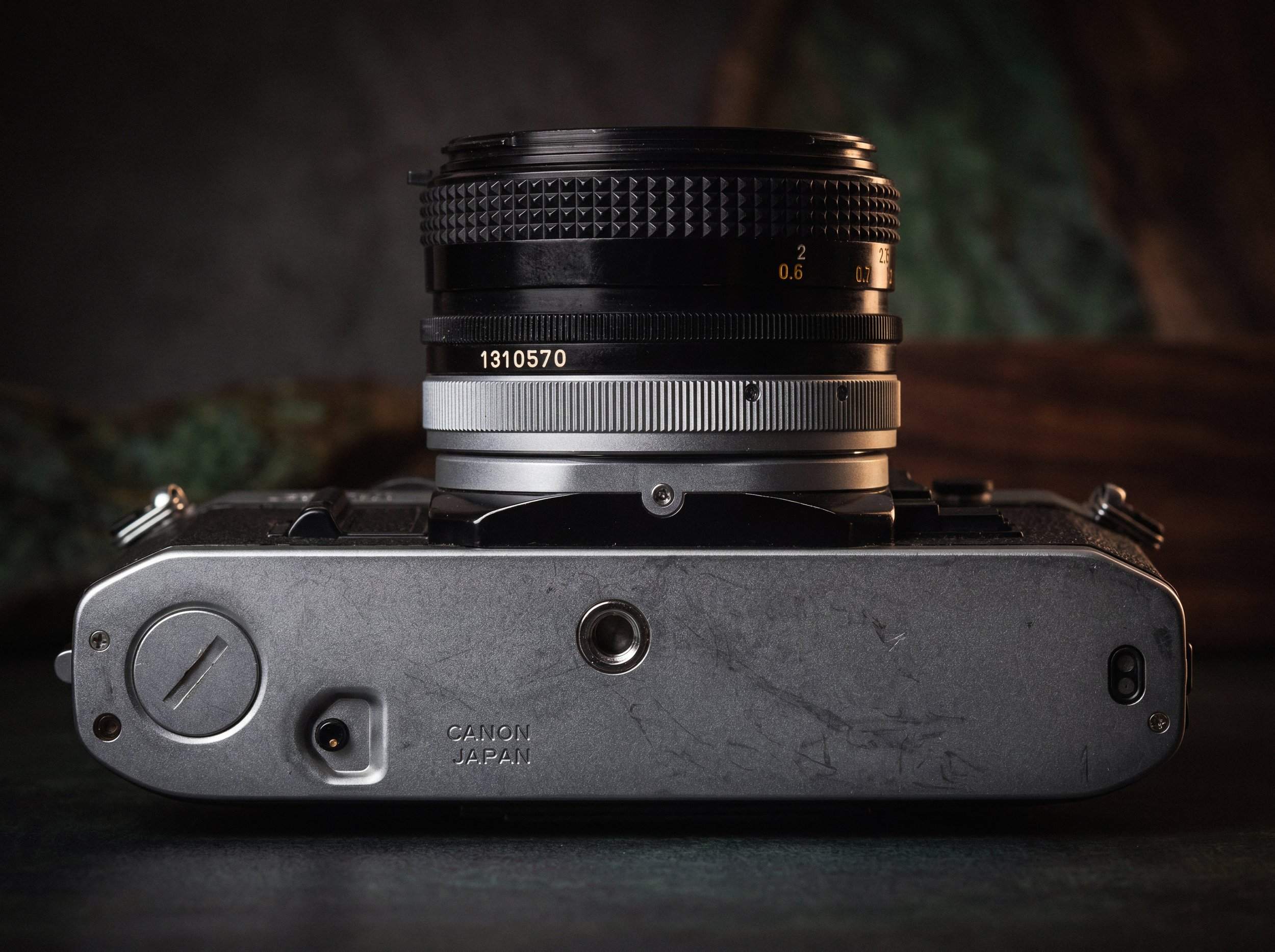

On the baseplate there is more to see. At the left, the circular winder coupling cover and the small winder positioning hole just below it — which allow attachment of the Power Winder A accessory. Further right, the recessed film rewind button, serial number and CANON JAPAN stamp, and the tripod mount centrally. At the far right, the control terminals for Power Winder A.
The Canon Cough
Every A-series Canon body — the AE-1, AE-1 Program, AT-1, A-1 and AV-1 — shares one famous mechanical quirk that affects roughly half the cameras you'll see for sale on eBay today, and it's worth knowing about before you buy. The condition is universally known as the "Canon Cough" or, more clinically, the "squealing shutter syndrome". As the camera ages, the lubricant on a small lever inside the mirror box dries out and the lever begins to chirp, squeak, or in extreme cases produce a distinct high-pitched cough each time you press the shutter release. The sound is a clear indicator that the mirror-cocking mechanism is wearing itself out, and left unaddressed the squeal will eventually progress to mechanical failure (Talk Photography).
The fix is the same on all A-series bodies: the mirror box must be removed and the offending lever properly cleaned and re-lubricated. It is not a job for the home tinkerer, and despite a number of YouTube videos suggesting that you can fix the cough by injecting a drop of oil through a small hole in the side of the mirror box, this approach is universally condemned by professional camera technicians, who point out that it only addresses one side of the assembly and frequently turns a £50 service into a £200 mirror-clean. The proper repair, done by a competent technician, costs around £80–£120 in the UK and adds a decade or more of trouble-free service to a camera that may otherwise be ready to retire.
A correctly serviced AT-1 (or any A-series camera) is essentially silent on shutter release. A coughing one announces itself across the room. When buying second-hand, fire the camera a few times and listen carefully; the squeal is impossible to miss once you know to listen for it.
The lens: Canon FD 50mm f/1.8 S.C.

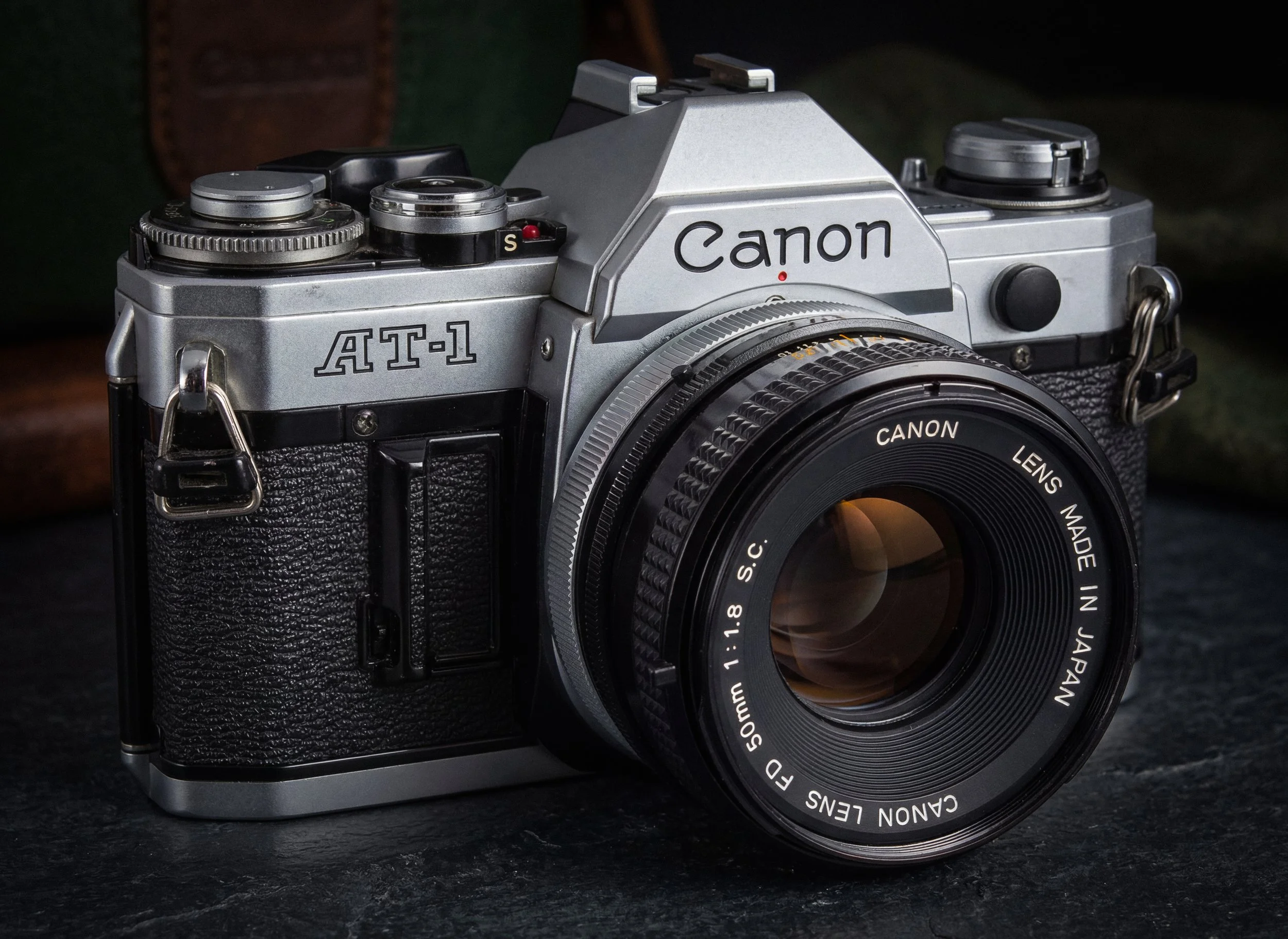

The lens mounted on the camera in these photographs is the Canon FD 50mm f/1.8 S.C. in its breech-lock chrome-nose form — the standard nifty fifty that shipped with countless Canon SLRs from 1973 onwards, and one of the all-time bargains of the second-hand lens market. The "S.C." marking visible on the front bezel stands for Spectra Coating, Canon's proprietary single-layer anti-reflection treatment of the period (the higher-end lenses got the multi-layer "S.S.C." or Super Spectra Coating; the 50mm f/1.8 stayed with single-layer S.C. throughout its breech-lock life) (Jonathan Gazeley).
The optical formula is a six-element, four-group double-Gauss design — the same fundamental layout that Carl Zeiss's Paul Rudolph had patented in 1896 and which had been refined repeatedly for fast normal lenses ever since. Canon launched the original FD 50mm f/1.8 in March 1971; the S.C. version arrived in 1973 with the new coating; a slightly revised S.C. (II) followed in 1976 with the aperture-blade count reduced from six to five, a slimmer barrel, and a weight drop from 255 to 200 grams. The lens visible on the AT-1 here is the S.C. (II) — the most commonly encountered breech-lock variant and the one most often found in bundles with second-hand A-series bodies.
Optically the lens is excellent. The double-Gauss formula was, by 1976, a thoroughly mature design, and Canon's execution of it is sharp from f/2.8 onwards, very sharp from f/4 to f/8, with mild softening at the corners wide open and a gentle, slightly warm rendering that came from Spectra Coating's particular spectral characteristics. Bokeh is pleasant if not particularly distinguished — the five-bladed aperture produces a slightly pentagonal out-of-focus highlight in the corners of the bokeh disc, which the earlier six-bladed S.C. (I) did not. Minimum focus is 0.6 metres, giving a maximum magnification of about 1:10 — close enough for tight head-and-shoulders work but not really macro range. Filter thread is 55mm, which by happy coincidence is the same as several other common Canon FD lenses, making filter sets easy to assemble.
The breech-lock mount, characteristic of all pre-1979 FD lenses, works by aligning the red dot, pushing the lens straight onto the body, and then rotating only the silver chrome ring at the rear of the lens until it clicks home. The lens body itself does not move during mounting. This is slightly slower in use than a conventional rotating bayonet, but mechanically more precise — the lens registration to the body is fixed by the lens-body interface itself rather than by the bayonet tabs, which is one reason early FD lenses have a reputation for excellent sample-to-sample consistency. Canon replaced the breech-lock with a conventional rotating bayonet in 1979 for the New FD line, but the optical formulas across the late breech-lock S.C. and the early New FD versions of the 50mm f/1.8 are identical.
Rafferty’s Wheelbarrow, October 2004
The frame above is from the first roll I put through the AT-1, in late October 2004. The setting is our front garden in Canterbury; the subject is my three-year-old son Rafferty, sitting on the edge of our old metal wheelbarrow with a red plastic spade, ‘helping’ to clear up the autumn leaves that had been falling for the previous week or two. The light is the slightly low-angled afternoon sun of an English October, coming in from camera right, and the warm tones in the leaves on the lawn and the cool green-and-shadow of the conifer hedge behind are characteristic of Agfa Vista colour film — which had a slightly punchy, slightly cool-shadow look that I remember being very fond of at the time, and which was one of the cheaper colour films available in Asda and Boots before Agfa stopped making it.
The shot is hand-held, almost certainly at around f/4 or f/5.6, somewhere in the region of 1/250 second to handle the moving subject. The selective focus on Rafferty's face with the leaves and the wheelbarrow softening into the background is what the 50mm f/1.8 does well at moderate distances and moderate apertures. The shadows on the right side of his face and across the front of his shirt are slightly deep, in the way that small-format colour negative of that era tended to render late-afternoon shadow detail, but the exposure on his face is essentially right, and the metering must have been close enough on the day to keep his skin tones in a usable range.
Twenty-two years on — Raff's about to turn twenty-five as I write this) — it's still a lovely photo of him. One of the small unexpected pleasures of buying second-hand cameras is that the first roll you put through can often turn out to contain a frame you'll keep for the rest of your life. The AT-1 did not, in any technical sense, produce a better photograph than any other manual SLR I owned at the time. It's a perfectly competent body with perfectly competent metering and a perfectly good standard lens. But there was something about the way that particular camera, on that particular afternoon, with that particular roll of cheap film, lined up to give me that frame. Twenty-two Octobers later, I have not regretted that eBay purchase for a single one of them.
What it's like to own one now
The AT-1 is, in 2026, one of the great quiet bargains of the second-hand film camera market. It doesn't have the cachet of the AE-1; the all-manual brigade prefer the K1000 or the Spotmatic; the gear-collector contingent goes after the A-1 and the New F-1; and the AT-1 sits in a kind of marketing blind spot where almost nobody is actively looking for it. The result is that working AT-1 bodies, often with a 50mm f/1.8 included, can be found for £40 to £80 in the UK — sometimes less if the seller doesn't know what they have. The Pentax K1000, by way of comparison, has gentle but unwarranted cachet that keeps its prices at around twice that level.
For the photographer who wants a manual-exposure SLR with a properly damped match-needle viewfinder, a solid-feeling chassis, access to the enormous Canon FD lens system, and a battery that's still made forty-nine years after the camera was launched, the AT-1 is exactly the right camera. The metering is reliable, the shutter is accurate to within half a stop on every example I've owned, the viewfinder is bright by 1970s standards (0.82× magnification, ground-glass focusing screen with split-image and microprism aids in the centre), and the FD lens lineup is essentially unlimited at the budget end.
The two things to check before buying: first, listen for the Canon Cough on shutter release (a chirp or squeal means the mirror box needs a service); second, fit a fresh battery and confirm that the meter is responding correctly and the shutter is firing at the right speeds. Beyond those two things, almost any AT-1 you find will be perfectly usable, and likely to remain so for another decade or two.
The AT-1 is, in some ways, the most honest of the A-series — no autoexposure to hide behind, no special features to oversell, no marketing story beyond "this is the cheap one." It exists for one reason: to compete with the Pentax K1000 in the American student market of 1976-77. The fact that it did so capably, and continues to do everything a 35mm SLR needs to do nearly half a century later, is a quiet kind of triumph for a camera that almost nobody talks about.
I'm rather fond of it.
