Zorki 4K
Zorki 4K: a Soviet Leica, a Jena Sonnar, and a small piece of the Cold War
Most cameras tell you a story about engineering. A few tell you a story about geopolitics as well, and the Zorki 4K is firmly in the second camp. It is a copy of a German camera, fitted with a copy of a German lens, made on machinery taken out of Germany as war reparations, in a factory built on the outskirts of Moscow for the express purpose of producing optical instruments for the Soviet military. Half a century later it still works, still takes the same 35mm film the original Leica II took in 1932, and still does so with a particular kind of mechanical bluntness that nothing made west of the Iron Curtain quite matches. (Soviet Cameras)

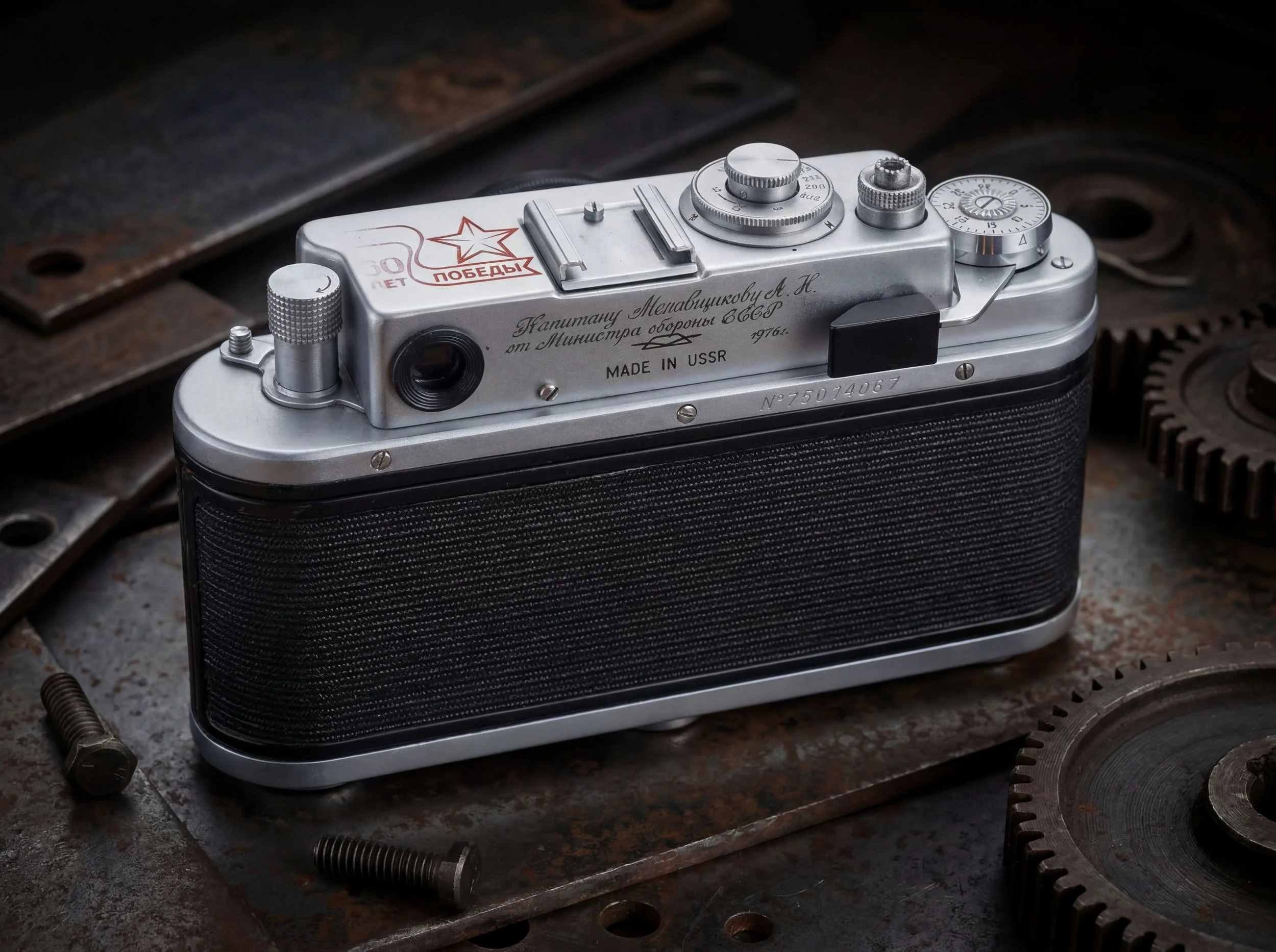

The particular example pictured here is more political than most. The engraving on the back of the top plate reads "Капитану Менавщикову А.Н., от Министра обороны СССР, 1976г" – "To Captain Menavshchikov A.N., from the Minister of Defence of the USSR, 1976" – and the red star and ribbon on the top deck carry the legend "30 ЛЕТ ПОБЕДЫ" ("30 Years of Victory"), marking the thirtieth anniversary of the Soviet defeat of Nazi Germany in May 1945. It is one of a small commemorative run of Zorki 4Ks produced by KMZ for presentation to military officers around the 1975 anniversary; this one was, by the inscription, handed to a Captain Menavshchikov by the Soviet defence ministry the following year. Whatever else it is, it is a piece of small‑arms‑sized social history with a lens on the front. (CollectiBlend)
A short, slightly complicated history
To make sense of the Zorki 4K you have to start with the original Leica II of 1932 – the camera that essentially invented the small, compact 35mm rangefinder as we now understand it – and then follow what happened to a great deal of German optical engineering in 1945 and 1946.
In Ukraine, in the city of Kharkov, a Soviet factory called FED had been making a more‑or‑less faithful copy of the Leica II since 1934. When the German invasion damaged the FED plant during the war, production was disrupted, and in 1948 a second factory was brought into the line to supplement output: the Krasnogorsk Mechanical Works (Красногорский Механический Завод, abbreviated KMZ), established in 1942 just outside Moscow as a military optics plant. From 1949 onwards, KMZ began producing its own variant of the Leica copy, this time badged "Zorki" (Зоркий, "sharp‑sighted"). Five versions of the original Zorki rolled off the line between 1950 and 1956 – all of them still essentially Leica II bodies underneath. (Wikipedia)
In parallel, and rather more brutally, a great deal of the actual production capacity of Carl Zeiss in Jena had been moved east. The Potsdam Agreement of 1945 entitled the Soviet Union to take reparations from German industry, and in October 1946 the Soviet occupation authorities began the dismantling of the Zeiss plants under what was officially called Operation Osoaviakhim. According to historians of the period, the Soviets eventually removed roughly 93% of Carl Zeiss Jena's equipment – machine tools, lens grinding apparatus, optical glass stocks, blueprints and patents – along with around 275 Zeiss specialists, who were relocated to various plants in the USSR. The lion's share of that machinery and expertise ended up at Krasnogorsk and at a sister plant in Kharkov, where it was used to set up production of post‑war Soviet versions of Zeiss's pre‑war designs. (Pixelcraft)
The result, for our purposes, was that by the mid‑1950s the Soviet Union had a domestic capacity to make Leica copies (the Zorki series, with its FED‑pattern body and Leica thread mount) and a domestic capacity to make Zeiss copies (the Jupiter series of lenses, descended from Bertele's pre‑war Sonnar designs). The Jupiter‑8 in particular, a 50mm f/2 normal lens, was for the next forty years the lens most often paired with a Zorki body, and the two together formed the standard issue Soviet rangefinder kit.
The Zorki 4 itself, introduced in 1956, was the longest‑running and most refined member of the Zorki line: a slow‑and‑fast‑speeds Leica‑pattern rangefinder with a top shutter of 1/1000s, a combined viewfinder and rangefinder window (rather than the separate windows of earlier Zorkis), a self‑timer, a flash sync socket and a removable back plate for loading film. It stayed in production from 1956 to 1973, with over 1.7 million units made, and is generally reckoned the most pleasant of the Zorkis to use. The 4K (Зоркий‑4К, where the К stands for "курок" – "trigger" or "lever") arrived in 1972 as a lightly modernised export variant, with one significant change and a couple of minor ones, and stayed in production until 1978, by which point the Zorki line was being wound down in favour of KMZ's Zenit SLRs.
What "4K" actually means
The difference between a Zorki 4 and a Zorki 4K is, in the end, quite small but quite welcome. The 4 had a film advance knob on the top plate – a rotating cylinder you turned with thumb and forefinger between frames, in the manner of every Leica II ever made. The 4K replaced that knob with a sprung lever, the classic 1970s short‑throw advance lever that nearly every other 35mm rangefinder by that point had adopted. That is what the K stands for: the lever (курок) advance.
A few other small things changed at the same time. The shutter dial was slightly reorganised so that all speeds (slow and fast) lived under one combined dial rather than the separate slow and fast dials of the early Zorki 4. The rewind knob acquired a small fold‑out crank in the post‑1973 versions. And the top plate engraving became cleaner, with the ZORKI‑4K legend in a slightly more confident sans‑serif than the slightly fussier ZORKI‑4. None of these are revolutionary changes; collectively they make the camera noticeably more pleasant to use.

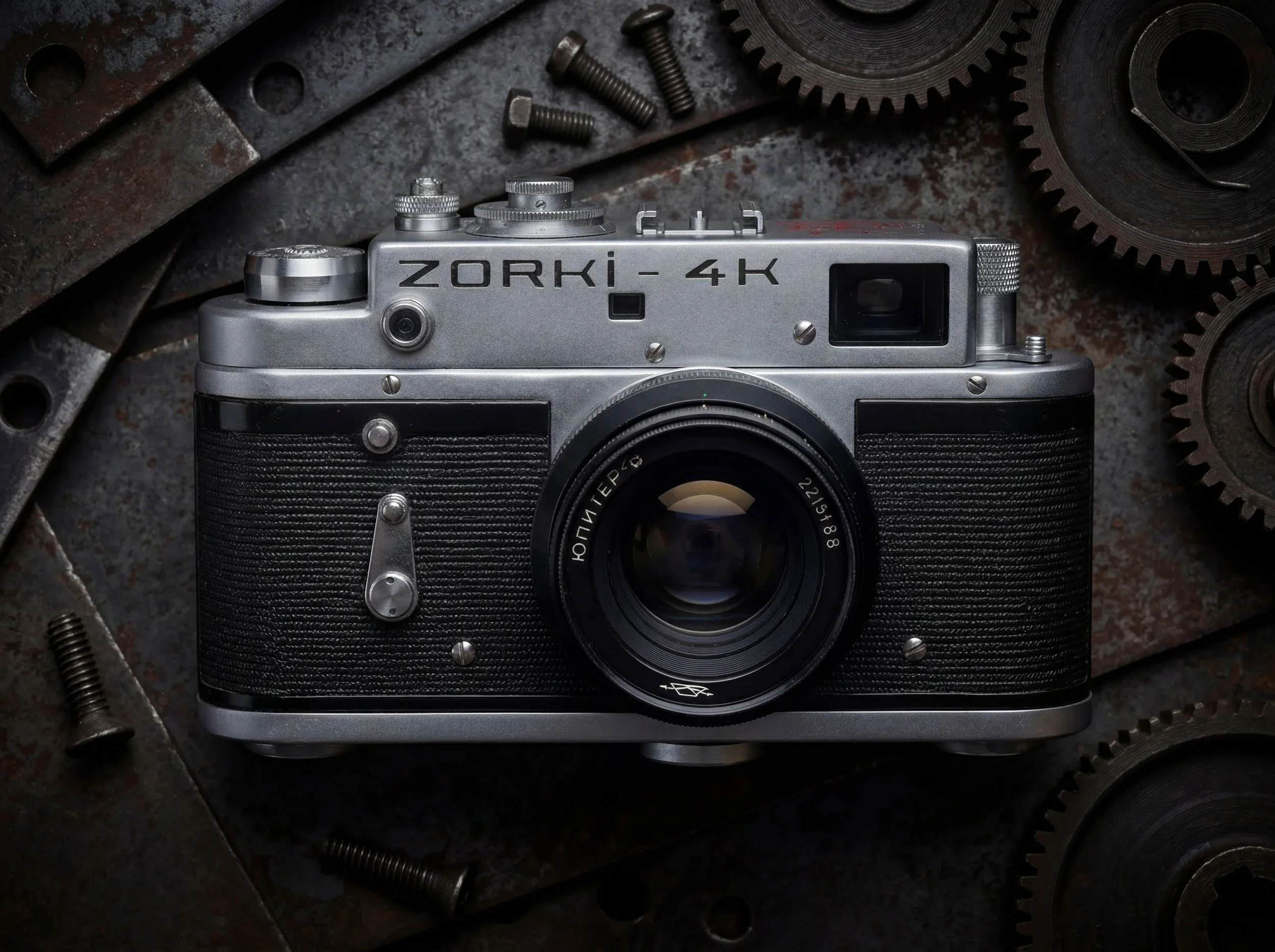

In the example shown here, you can see the lever advance peeking up under the thumb position on the top plate, the combined shutter‑speed dial behind it, the rewind knob to the left of the prism hump (such as it is), and the small chromed self‑timer lever on the front of the body. The 4K kept the Zorki 4's removable cold shoe – there is no flash hot‑shoe contact, just a mounting bracket – and the flash sync socket sits low on the front of the body next to the lens mount.
The body in detail: roughly cast, generally honest
A Zorki 4K in the hand is a slightly heavier, slightly cruder version of a Leica IIIc. The top plate, bottom plate and the chassis are die‑cast and machined aluminium alloy, finished in either bright chromed plate (as here) or, on a smaller proportion of bodies, in black paint. The leatherette is a coarse vinyl rather than the proper grained leather of a Leitz product, and the edges of the cast metalwork are noticeably less crisply finished than a contemporary Wetzlar camera. None of which actually matters; assembled and oiled, it works.

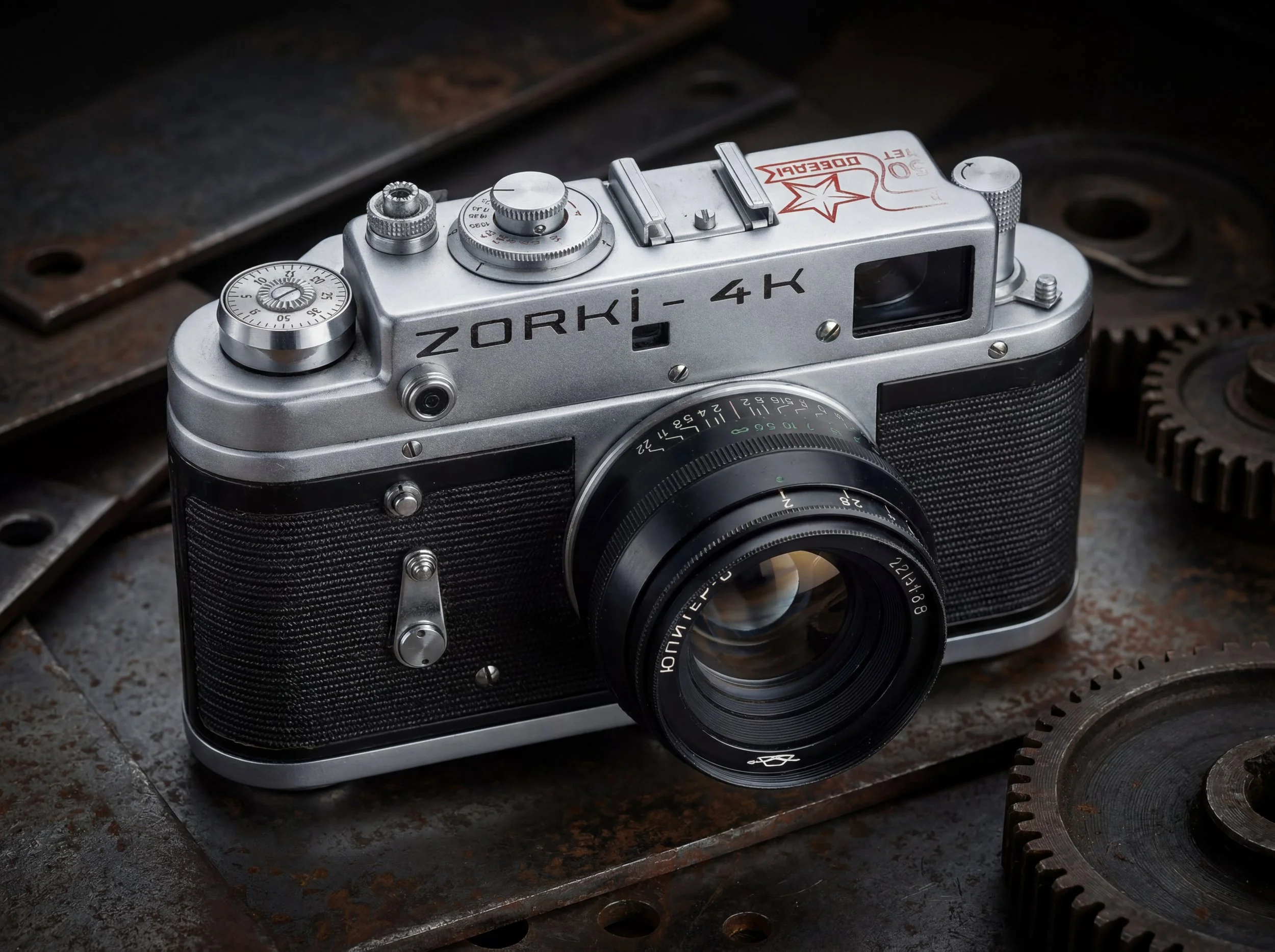

Reading from left to right across the top plate of this example:
A rewind knob on the far left (the small chrome cylinder with a knurled top) which on later production bodies adds a fold‑out crank.
A diopter‑adjustment lever next to the rangefinder eyepiece on the back.
The combined viewfinder/rangefinder window on the rear of the top plate.
The famous "30 ЛЕТ ПОБЕДЫ" engraving in red and silver, with a small star and ribbon motif, marking this body as a 30th anniversary commemorative.
The accessory shoe (cold, no flash contact) in the centre of the deck.
The shutter speed dial, with positions for B, 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/125, 1/250, 1/500 and 1/1000 second. Note that, like a Leica, this dial lifts and rotates for setting and spins as the shutter fires – do not put your finger on it during the exposure, which is a common new‑user fault and which can mark the dial.
The small chrome shutter release with its threaded centre for a cable release.
The film advance lever on the right of the top plate, with its short, positive throw.
A small frame counter window beside it, manually reset on loading by turning the knurled outer ring.

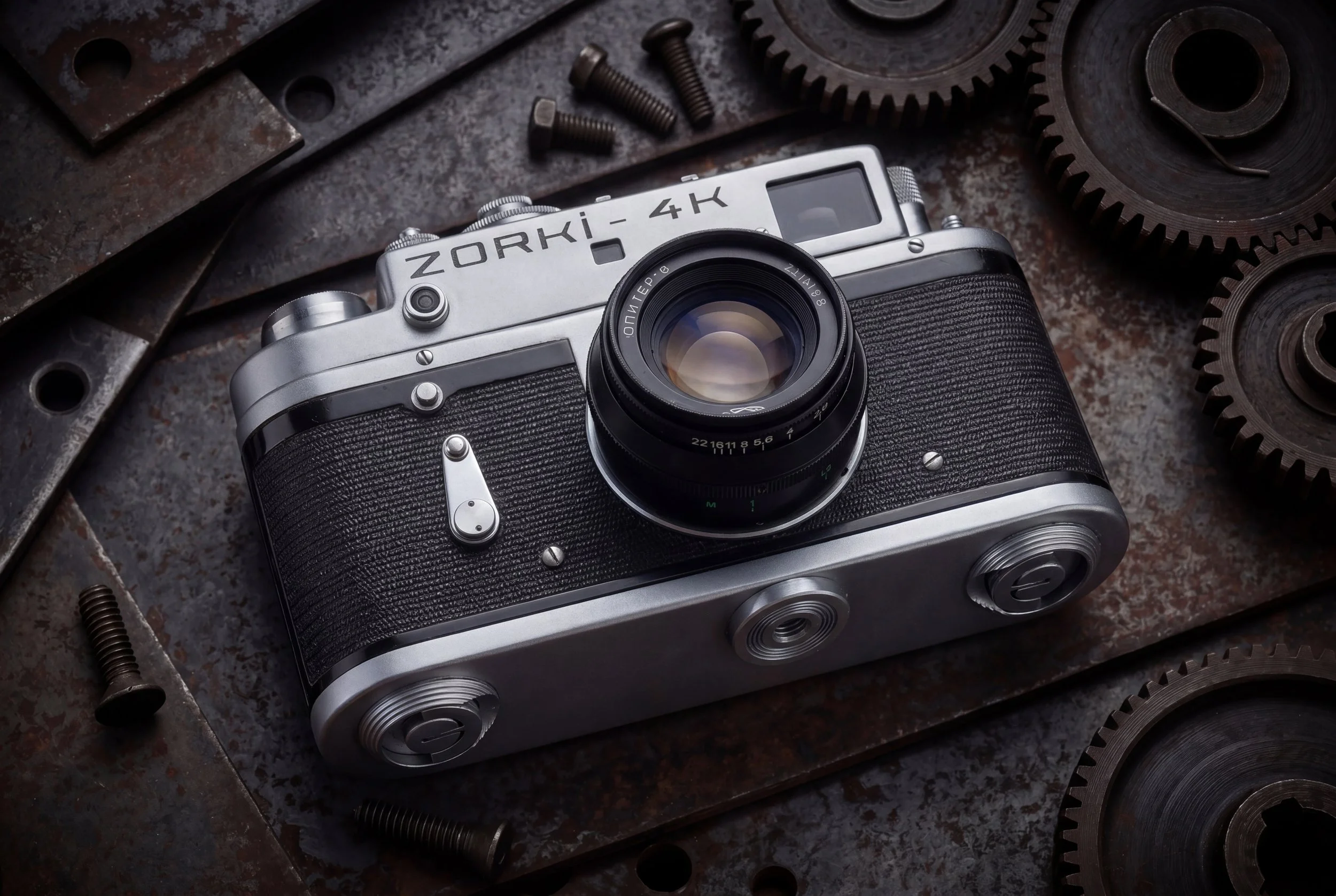

On the front face of the body, below and around the M39 lens mount, you have the self‑timer lever, the flash PC sync socket, and a small chromed strap lug on each end of the body. On the bottom of the body is the removable baseplate – the Zorki 4 and 4K both retain the Leica‑pattern bottom loading, where you remove an entire plate from underneath the camera and slide the film cassette up into the body, rather than opening a hinged rear door. (Yes, this is a deeply old‑fashioned way to load film. Yes, it is slow. Yes, after about three rolls you will have made your peace with it.)
The viewfinder is one of the things that most clearly marks the Zorki 4 series as a step up from the earlier Leica‑II copies in the Zorki line. Where the original Zorki 1 (and a Leica II) has separate windows for the rangefinder patch and the framing finder, requiring you to focus through one and frame through the other, the Zorki 4 combined the two into a single eyepiece: you look in one finder, see a bright frame, and within the frame is a yellowish rangefinder patch that you align by turning the lens. Magnification is around 1× (slightly above unity), the rangefinder baseline is around 67mm, and the patch is yellow rather than the warmer orange of a Leica M. It is perfectly adequate – not as crisp as a Leitz finder, but vastly better than no finder at all. (Flickr Zorki 4K specs)
The shutter is a horizontally‑travelling cloth focal‑plane unit, directly descended from the Leica II's, with speeds from 1 second to 1/1000s plus B, and a flash sync at 1/30s on most production examples (some run at 1/50). It is a slightly noisy mechanism by Leica standards – the curtains slap rather than hum – but it is reliable, easily serviced by any traditional camera technician, and (importantly) entirely mechanical. No batteries are required, there is no meter, and the camera will sit on a shelf for thirty years and then fire its slowest speeds correctly when you pick it up.
A small but important warning about shutter and lens
There is one piece of Zorki lore that any new owner needs to know about before they break something expensive. On a Leica, you can set the shutter speed at any time. On a Zorki 4 / 4K (and on every Leica II‑pattern camera), you must wind the shutter on before you change the speed. If you lift and rotate the shutter dial with the shutter uncocked, you can damage the slow‑speed escapement or knock the curtain timing out. It costs nothing to remember – just wind on, then set speed, then shoot. But cameras come back from servicing every week because someone didn't. (Mike Eckman)
There is a second warning, of a more specialised kind, about Jupiter lenses on Zorki bodies. The Soviet rangefinder system, although nominally compatible with Leica's M39 thread mount and 28.8mm flange focal distance, was actually calibrated to a slightly different focal flange combination – set up by Krasnogorsk to a 52.4mm rangefinder‑to‑film registration, where Leica's was 51.6mm. This means a Jupiter lens on a Leica body, or a Leitz lens on a Zorki body, will be very slightly out of rangefinder calibration. In practice the error is small enough that most people never notice it at f/8 on a wide normal lens, but wide open on a fast 50mm it can give you a focus shift large enough to spoil portrait pictures. There are cottage‑industry technicians (notably Skyllaney in the UK and Brian Sweeney in the US) who will recalibrate a Jupiter to Leica spec or vice versa for a sensible fee. (35mmc on rehoused Jena Sonnars)
On a Zorki 4K with its own native Jupiter‑8, of course, this is a non‑issue – the lens is matched to the body it was designed to live on. The shift is something to know about only if you ever decide to take that lovely little Jupiter and put it on a Leica.
The lens: a Jupiter‑8, which is to say, a Sonnar
Mounted on this particular body is a black‑barrel Jupiter‑8 (Юпитер‑8) 50mm f/2, almost certainly a late‑production example from KMZ. The lens is the most quietly remarkable thing on the camera. It is, optically, a direct descendant of Ludwig Bertele's 1932 Carl Zeiss Sonnar 50mm f/2 – the lens Bertele designed in Jena for the original Contax I rangefinder, and which over the course of the 1930s became one of the most highly regarded normal lenses ever made. Six elements in three groups, with a heavily cemented middle group that puts an unusual amount of glass close to the diaphragm, giving the lens its characteristic high contrast, low flare and lovely tonal rendering on black and white film. (Camerajunky, 35mmc Planar vs Jupiter‑8 comparison)
The Jupiter‑8 is, almost literally, that lens. When the Soviets dismantled the Zeiss Jena plant in 1946, they took the optical formulas, the production machinery, the glass stocks and a number of the workers who had built the originals. The first post‑war Soviet Sonnars were made on the same machines that had made the wartime Zeiss ones, with the same glass and to the same prescription, simply rebadged as "ZK" (an abbreviation of "Sonnar Krasnogorsk" in Cyrillic) and then, from around 1949 onwards, as Jupiter‑8. Through the 1950s and 1960s the design was gradually adapted to use post‑war Soviet glass types, and the mechanical housings were redesigned a couple of times (this black‑barrel version is the so‑called "Type 4" produced from the early 1980s through the fall of the Soviet Union in 1991), but the basic optical formula has remained pre‑war Zeiss throughout. (Leicaphilia, Leica Lenses for Normal People)
In use, this means a Jupiter‑8 behaves rather differently from a more modern 50mm f/2. The aperture mechanism has no click stops – the ring rotates smoothly between f/2 and f/22, which is irritating until you realise it means you can set any intermediate aperture you like, including the half‑stop sweet spots between values. The focus throw is long, from 1m to infinity, with the focus ring concentric with the aperture ring and a small infinity lock that you have to depress to focus past the locked position. Contrast wide open is slightly lower than a modern lens, with a touch of softness in the corners and a tendency to flare against bright sources; by f/4 the lens is properly sharp, and by f/5.6 it is rendering with that distinctive Sonnar mid‑tone separation that you can recognise on a print without being told.
The forest image below – the moss‑grown stump in Captain's Wood near Whitfield, in Kent – was taken on this combination with Ilford HP5 black and white film, probably at around f/4 and 1/60s, and shows the Jupiter‑8 doing what it is best at. Note the smooth fall‑off from the in‑focus stump into the slightly swirly out‑of‑focus foliage at the edges of the frame; the way the deep shadows under the canopy hold detail without dropping to pure black; the way the highlights through the leaves carry a slightly creamy gradation rather than burning out. None of which is the camera's doing, exactly. The body just held the film flat and timed the exposure. The look is the lens's, and the lens is, essentially, a 1932 Carl Zeiss Sonnar that happens to have been built fifty years later on the wrong side of a wall.
What it's like to use, in 2026
The Zorki 4K is the kind of camera that rewards a particular kind of patience. Load it (bottom loading; trim the film leader long, slide the cassette up into the body, hook the leader over the take‑up spool, replace the bottom plate, wind on a couple of frames). Set the ISO of your film on the small dial under the rewind knob (this is purely a reminder – there's no meter to talk to). Cock the shutter, set the speed, focus, recompose, shoot. The shutter fires with a definite mechanical thwack, the lever wind moves smoothly, and after about half a roll the rhythm becomes addictive.
There are things you give up. There is no light meter and no automation, so you carry a handheld meter or a phone app (Pocket Light Meter on iOS is more or less the standard) and learn to estimate exposure. The viewfinder squints down 35mm‑equivalent fields of view through a small port, and the rangefinder patch can be hard to see against light backgrounds. The 1/30s flash sync is too slow for fill‑flash work in daylight. The bottom‑loading is fiddly the first ten times. And the camera will, if you let it, develop the very specific Soviet faults of its kind – the cloth shutter can pinhole with age and let light strike the film; the slow‑speed escapement will gum up if it sits unused for a decade; the rangefinder vertical alignment will drift if you knock the camera.
But the things you keep are the things that, for some of us, are what film cameras are for in the first place. A fully mechanical machine that asks nothing of you except attention. A lens with a heritage that runs unbroken from a 1932 Zeiss design bench to your hand. A genuinely modest price of entry (a clean Zorki 4K and Jupiter‑8 together is still well under what a single roll of Leica film cost in 1973, in real terms). And, on this particular body, a small Cyrillic engraving on the back of the top plate that quietly carries the politics of an entire century. Captain Menavshchikov is presumably long gone, and the Minister of Defence who signed off on his presentation gift in 1976 cannot have imagined that, fifty years later, his ceremonial gesture would still be making pictures of an English oak wood. The Zorki 4K's whole point, in the end, is that it just keeps going.
