Canon AE-1
There are arguably only two or three cameras in the history of 35mm photography that genuinely changed the industry around them, rather than simply doing what was already being done a little better. The Leica I in 1925, the Nikon F in 1959, perhaps the Olympus OM-1 in 1972 — and then the Canon AE-1 in 1976, which is the camera that genuinely democratised the 35mm SLR. By any reasonable measure the AE-1 is the most successful interchangeable-lens camera ever made: Canon sold an extraordinary 1.2 million units in the first twenty months of production, and went on to ship over 5.7 million of them between April 1976 and the end of the production run in 1984 (678 Vintage Cameras). For comparison, the Pentax Spotmatic — which had been the previous best-selling amateur SLR — managed 2.6 million units across its first nine years on the market. The AE-1 doubled that figure, and it did so by being the first SLR ever designed to be sold to people who didn't already own one.
It was also, more quietly, the first 35mm SLR in history to have its core functions controlled by a built-in microprocessor — a single integrated-circuit chip that handled exposure calculation, shutter timing, aperture coupling, and the entire shutter-priority automation system from a few square millimetres of silicon. This is the kind of statement that sounds slightly underwhelming today, when every camera has a CPU and most have several, but in 1976 it was genuinely revolutionary. Canon's engineers were able to reduce the AE-1's total parts count by roughly 300 compared to their professional F-1 of 1971, simply by replacing whole mechanical sub-assemblies with electronic logic running on the new chip. The result was a camera that could be both cheaper to manufacture (because there were fewer parts and most of them were plastic) and more capable than its predecessors (because the microprocessor could do things mechanical linkages couldn't) — a combination that essentially every Japanese camera manufacturer spent the next decade trying to replicate (Wikipedia).
A short history of how Canon ended up here
By the early 1970s, Canon had been chasing Nikon for roughly two decades and had never quite caught them. Nikon had owned the professional 35mm SLR market since the F came out in 1959, the Nikkormat had owned the serious-amateur market since 1965, and even at the lower end Pentax's Spotmatic was outselling everything Canon could put against it. Canon's own professional flagship, the F-1 of 1971, was a perfectly creditable competitor to the Nikon F2 and was used by some professionals, but Canon had failed to dent Nikon's hold on press photography or sports. At the amateur end, the FTb of 1971 was a solid mid-range mechanical SLR that competed honourably with the Nikkormat and the Spotmatic but had never broken out commercially. By 1974, Canon's senior management had concluded that incremental improvement of the F-1 / FTb formula was not going to be enough. They needed to do something different.
The answer was a complete strategic rethink. Where the F-1 and FTb had been engineered along traditional lines — heavy brass and aluminium chassis, mechanical linkages between every control, individual specialist components for each function — the new camera was designed from a clean sheet to integrate as many functions as possible into a central microprocessor, to share major assemblies with future Canon SLRs to bring per-unit costs down, and to use injection-moulded plastic for outer panels wherever the mechanics didn't demand metal. The brief was for a camera that could be sold for roughly half the price of an F-1, deliver most of the same photographic capability through clever automation, and be advertised on television (which, astonishingly, no 35mm SLR manufacturer had ever previously done) to a mass-market audience of people who had never owned a serious camera before.
When the AE-1 was launched in April 1976, it was priced at $413 list — but with a heavy dealer discount that brought the street price in the United States down to $199.95, undercutting essentially every other interchangeable-lens SLR on the market by a significant margin (the equivalent in 2025 money is approximately $1,100, which still makes it an aggressive consumer price for a system camera) (Vintage Camera Digest). Canon backed it with what was, at the time, the largest consumer-electronics advertising campaign anyone had ever run for a camera: prime-time television commercials on American network TV, full-page colour adverts in mainstream lifestyle magazines, and a celebrity-endorsement deal with the Australian tennis champion John Newcombe, who fronted the print and television campaign for the next several years under the slogan "So advanced, it's simple" (YouTube). The campaign also coincided with the 1976 Montreal Olympics, where Canon supplied AE-1 bodies to amateur photographers and sponsored a significant share of the photographic coverage. The result was a kind of cultural saturation that no camera had ever previously achieved.
By 1978 the AE-1 had become so culturally ubiquitous that one industry analyst, quoted in Fortune magazine in January 1981, called it "the Chevrolet of the 35mm market" (encyclopedia.com). It had also forced every other manufacturer to develop their own consumer-targeted, microprocessor-controlled SLRs in response: Nikon released the EM in 1979, Olympus the OM-10 in the same year, Pentax the ME and ME Super, and even Leica started thinking about a consumer SLR (the R3, also 1976, though that was a parallel development rather than a direct response). The Canon AE-1 didn't just sell — it changed what every other manufacturer thought a serious camera was supposed to be.
The A-series platform
The AE-1 was the first member of what Canon called the A-series, a deliberately-architected family of cameras designed to share the same fundamental chassis and most of their major sub-assemblies. The series eventually included:
AE-1 (April 1976) — shutter-priority automation, full manual, microprocessor control
AT-1 (December 1977) — manual-only stripped-back version for budget buyers and student photographers
A-1 (April 1978) — flagship of the line, with five exposure modes, LED viewfinder display, and the famous all-black finish
AV-1 (1979) — aperture-priority version for the North American market
AE-1 Program (1981) — direct successor with added program-AE mode
AL-1 (1982) — beginner-oriented Quick Focus model with focus-confirmation LEDs
All six share the same compact aluminium-alloy chassis, the same cloth-curtain horizontal-travel focal-plane shutter, the same FD breech-lock lens mount (with later models also supporting the New FD bayonet-style mount), the same viewfinder housing, and the same general control idiom of a top-plate shutter-speed dial, a separate ASA setting around it, and a film-advance lever on the right. What differs between them is mostly the position and complexity of the controls on the top plate and the rear, the exposure-mode capabilities, and the cosmetic finish (YouTube).
The platform approach was an enormous commercial advantage. Canon could amortise their tooling and component costs across six camera models and a production run of well over ten million bodies across the full A-series, which is one of the reasons the AE-1 in particular could be sold at such an aggressive consumer price. It also means that almost every spare part for an AE-1 will also fit several of its siblings, which has been a quiet boon for the second-hand market four decades later.
The body and the shutter
The AE-1 measures 141 × 87 × 48 millimetres and weighs 590 grams without lens or battery — slightly lighter than an FTb, considerably lighter than an F-1, and exactly in the comfortable sweet spot for one-handed handling with a 50mm lens attached. The chassis is an internal aluminium-alloy die-casting with a brass top plate and bottom plate, wrapped in vinyl leatherette on the sides and rear. The outer cosmetic top cover is engineering plastic rather than the brass-plated metal of the F-1 — a cost-saving measure that was widely criticised in the photographic press at the time but which has, in retrospect, proven entirely durable; most surviving AE-1s have intact top covers nearly fifty years after manufacture (Matchplayer).
The shutter is a four-axis horizontal-travel cloth focal-plane mechanism, electromagnetically controlled by the central microprocessor, running from 2 seconds to 1/1000 second plus Bulb. Flash X-sync is 1/60 second — slower than the Nikon FE's 1/125 or the Olympus OM-1's 1/60-but-with-titanium-foil-curtains, and one of the AE-1's few genuine technical weaknesses. The cloth curtains are quiet and well-damped (the AE-1 is, to my ear, one of the quieter SLRs of its era — significantly quieter than a Nikkormat or a Spotmatic) but the horizontal-travel design fundamentally limits the X-sync speed, and the 1/60 ceiling means that fill-flash work in daylight with fast lenses is more constrained than it would be on a vertical-travel metal-blade design.

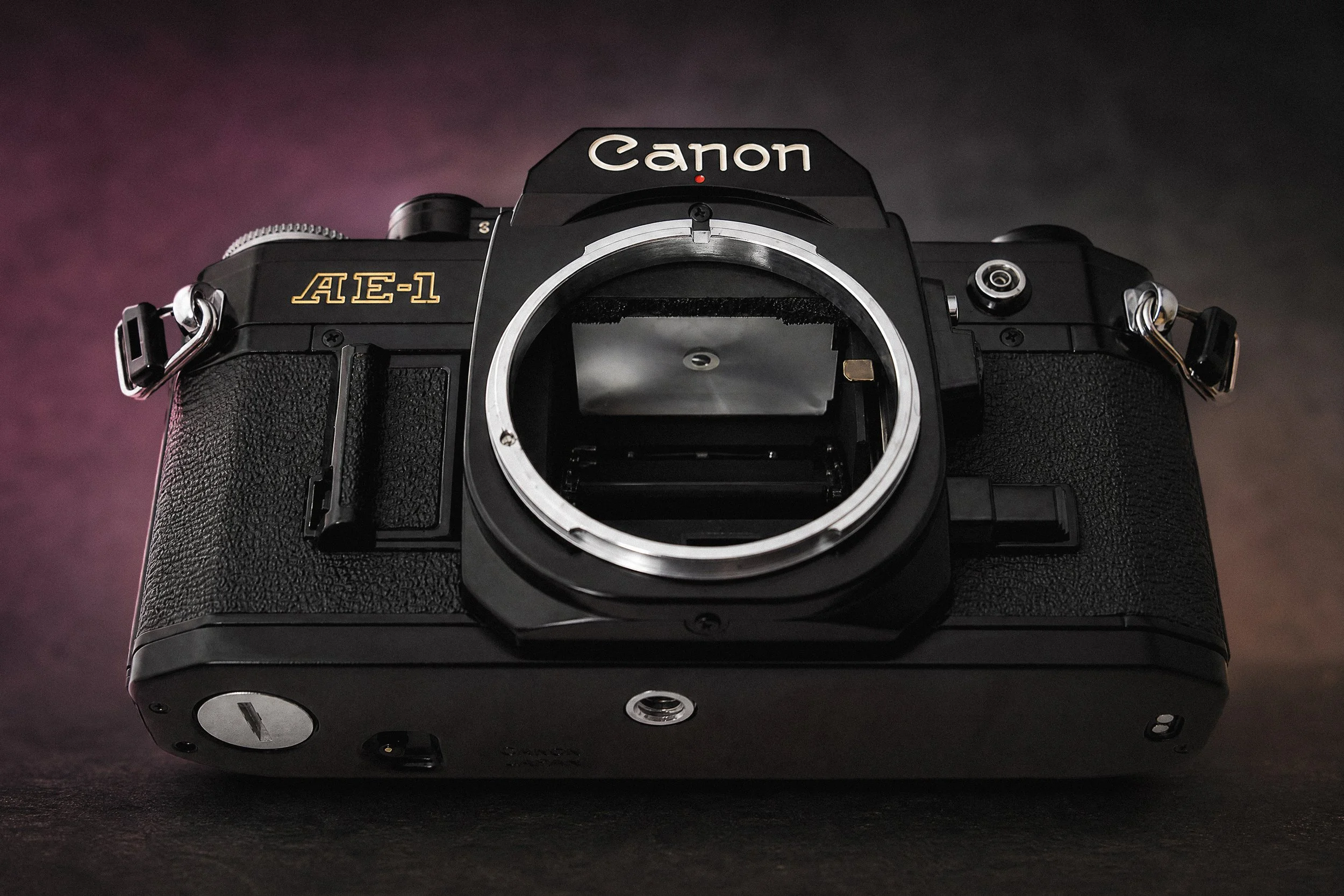

The lens mount is the Canon FD breech-lock mount, which accepts both the original FD breech-lock lenses (silver locking ring at the rear, the lens body itself doesn't rotate during mounting) and the later New FD lenses (which use a conventional rotating-bayonet system inside the same lens-throat dimensions, so are mechanically and electrically compatible). The AE-1 will also accept older Canon FL-mount lenses via stopped-down metering, which gives the camera a usable backwards-compatibility range stretching back to the early 1960s. The two cameras shown in this post are both wearing New FD 50mm f/1.8 lenses — the bayonet-mount, all-black, plastic-barrelled version introduced in 1979, which is the most common standard lens you'll find on AE-1s in the second-hand market today.
Power comes from a single 4LR44 6V alkaline battery (or the equivalent 4SR44 silver oxide, or the long-since-banned 4G-13 mercury cell that the camera was originally specified for). Battery life is good — most users get a year or more out of a single cell under normal shooting — but the camera will not function at all without a battery: shutter, meter, and all controls are electronic, so a flat battery means a dead camera. This is, again, one of the AE-1's small technical weaknesses; a Nikkormat or an FTb of the same era will shoot all day with a dead meter battery using sunny-16, but the AE-1 simply won't fire. Carrying a spare battery in the camera bag is a sensible habit for any A-series owner (Canon Camera Museum).
The Canon Cough
No discussion of the AE-1 — or of any A-series camera — is complete without mentioning the famous Canon Cough (also called the Canon Squeal, depending on which forum you read). It is one of the most well-documented mechanical failure modes in 35mm camera history, affects essentially every A-series body of a certain age, and is the single most likely problem you'll encounter when buying a second-hand AE-1 today.
The cause is straightforward. Behind the mirror box, on the right-hand side of the camera, there is a small geared damper assembly that controls the rate at which the mirror returns to its rest position after the exposure. The gears in this assembly are lightly lubricated at the factory with a specific silicone-based grease which is meant to last the lifetime of the camera. In practice, the grease tends to dry out and migrate after fifteen to twenty years, leaving the gears dry and the damping shaft running metal-on-metal. The result is a high-pitched squeal that begins as a faint chirp on shutter release, gradually develops into a clearly-audible squeak that announces itself across the room, and eventually progresses to a full-throated cough that drowns out the shutter sound entirely. Left untreated, the dry gears will also slow the mirror return down, which causes the camera to mis-time exposures and, in extreme cases, to lock up entirely (YouTube, Reddit).
The fix is well-known but should be done properly. A drop or two of a light silicone-based gear oil, applied with a fine-tipped syringe through a specific access point on the right-hand side of the body (sometimes through a screw hole that has to be temporarily removed, sometimes through a small access port in the bottom plate, depending on which version of the chassis you have), will lubricate the damper assembly and silence the squeal. The critical thing is to use the right oil and to apply it in tiny quantities — a single drop in the right place is enough; more than that risks the oil migrating onto the shutter curtains or the mirror itself, which will then need a full strip-down and clean. There are dozens of YouTube tutorials walking through the procedure, several of them genuinely excellent, but the consensus is that if you're not confident with small mechanical work, the right answer is to send the camera to a competent technician for a proper Clean-Lubricate-Adjust (CLA) rather than to attempt the fix yourself (YouTube).
When buying a second-hand AE-1, the cough is the single most important thing to check. Fire the shutter several times in quick succession in a quiet room and listen carefully. A correctly serviced body is essentially silent on shutter release — the mirror slap is brief, well-damped, and quieter than the equivalent Nikon FE or Olympus OM-2. A coughing AE-1 will announce itself unmistakably. The cough is a fixable fault rather than a fatal one, and a body with a cough that's otherwise sound can be bought cheaply and then taken to a technician for a CLA at around £80-£120 — but it's worth knowing what you're getting into.
The Controls

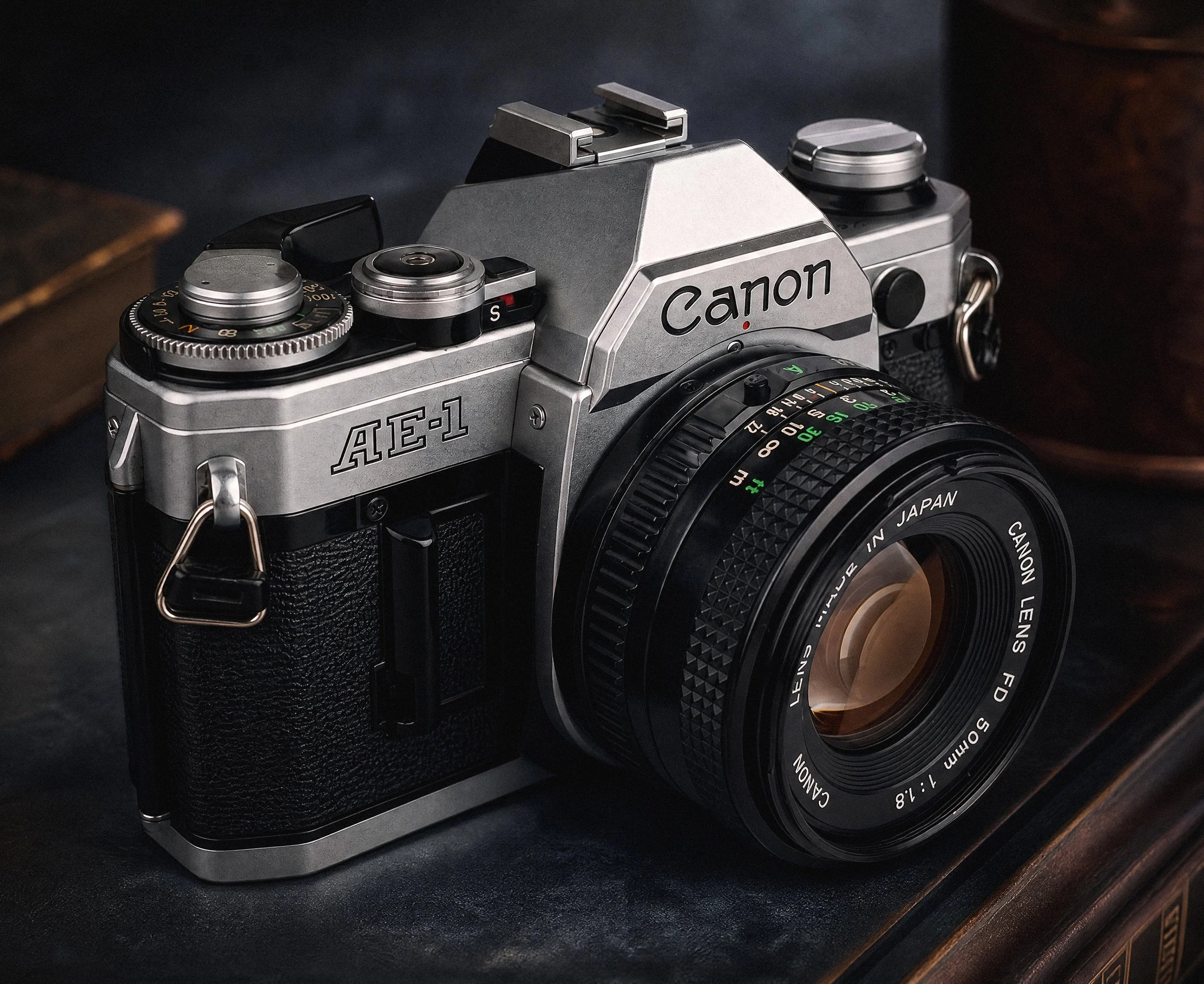

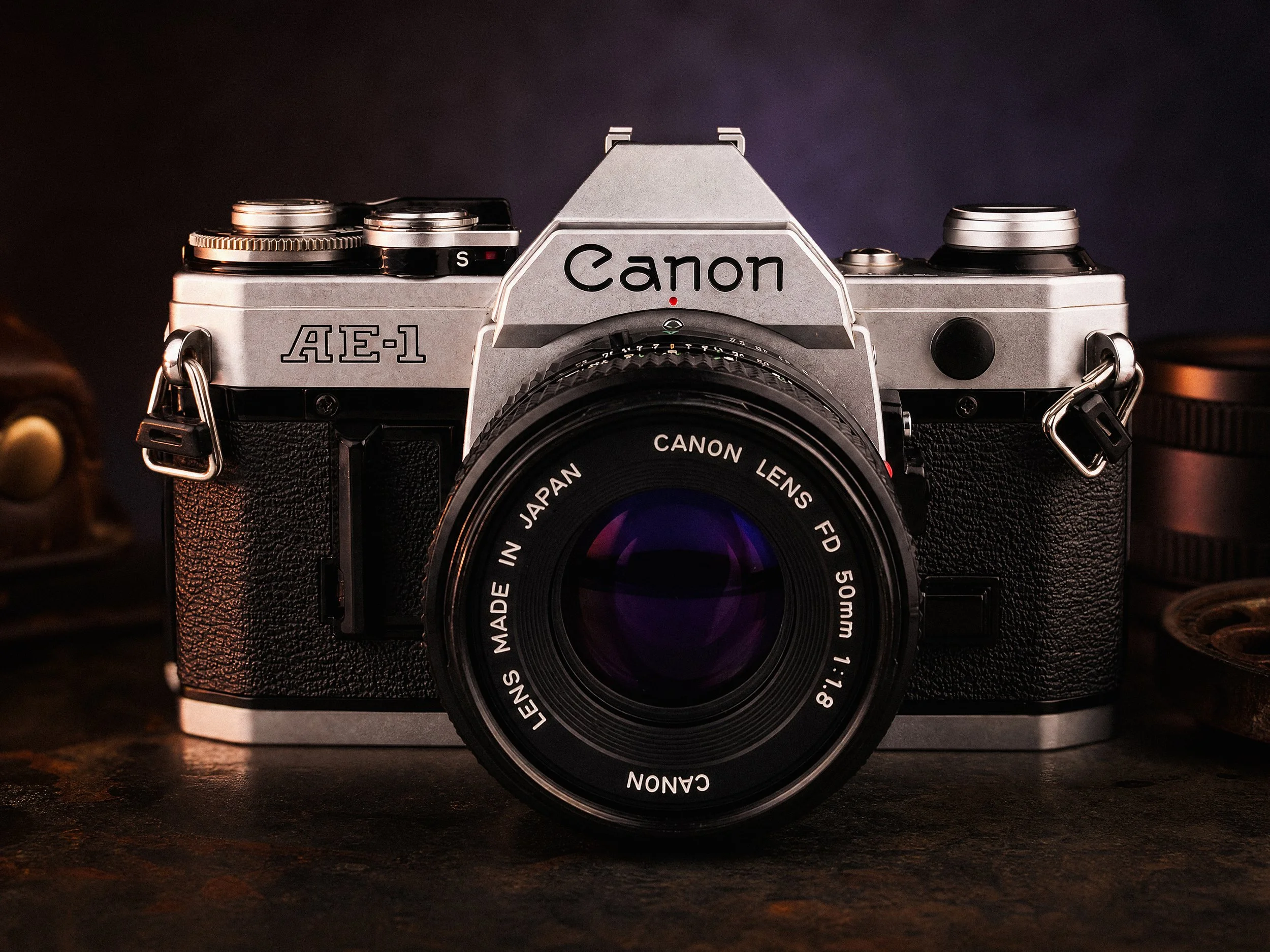

The AE-1 was designed to be accessible to new SLR users, and marketed on its simplicity — the straightforward control system reflects this. On the front of the camera, there’s the battery door and latch to the left of the lens, and on the lens mount itself at the 2 o’clock position a pair of buttons for Backlight Control and Exposure Preview. Below those, at the 4 o’clock position, the Stop-Down Slider — which is required for shooting with FL lenses. At the front of the top plate, to the right of the prism, lies the PC Flash Sync socket — which usually comes with a black protective cover if it has not been lost.

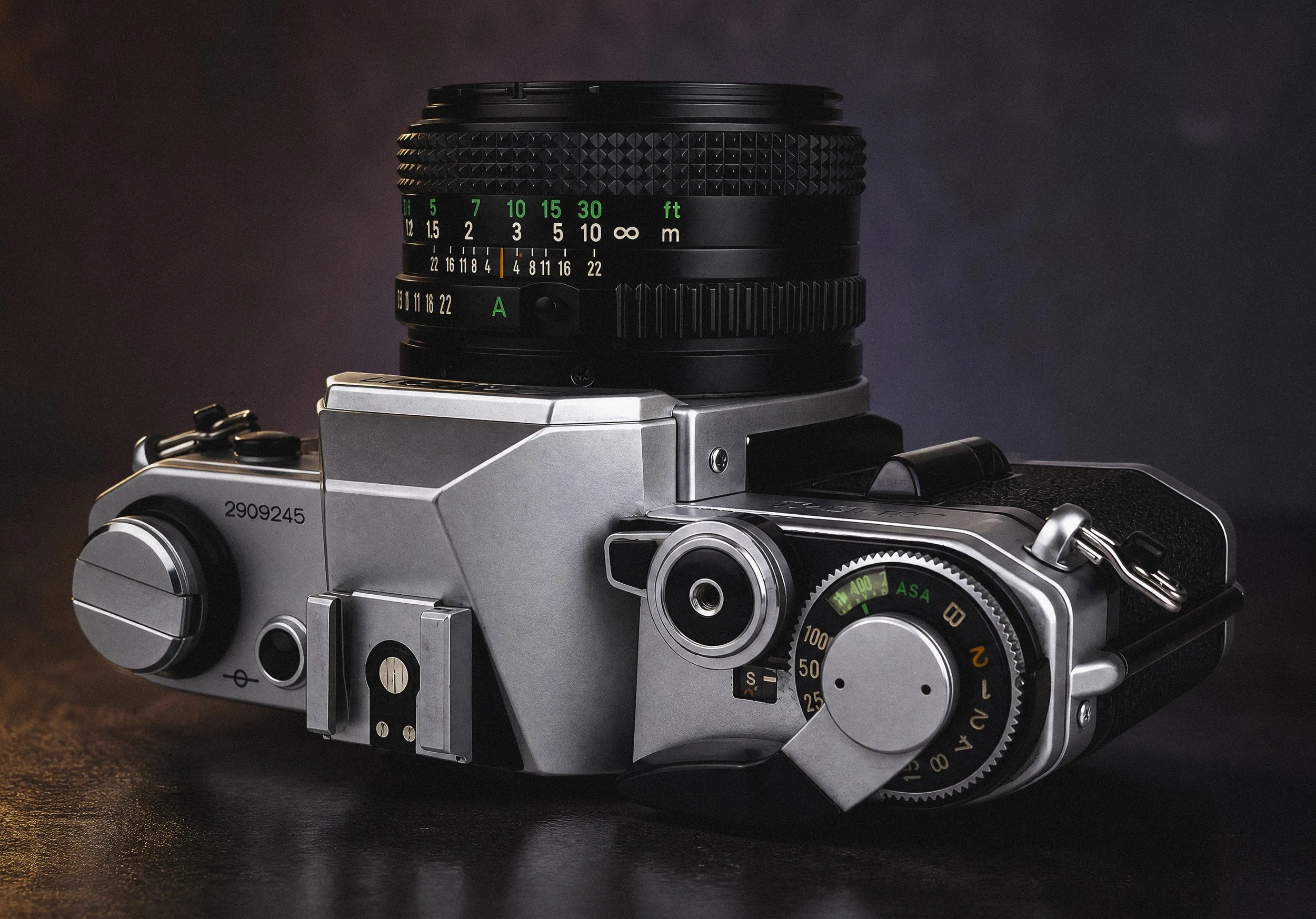

On the top plate, at the left, is the film rewind knob with its fold-out crank, and next to it, the battery check button. In the centre, the hot shoe sits atop the prism housing, and just to the right is the shutter release button, with a central cable release thread and surrounded by the self-timer lever and shutter release lock. Right next the the shutter button, there is a small red LED for the self-timer and battery check functions. The small, square, frame counter window is directly behind the shutter release.
Furthest right on the top plate, the film advance lever is surrounded by the shutter speed dial with speed settings from B to 1/1000 seconds, and this control also incorporates the film-speed setting. A small window to the front of the shutter speed dial allows the ASA setting to be seen. Shutter speeds are set by turning the knurled chrome ring of the dial, but by pulling up the surround of the dial assembly and turning it, you can select a film speed from ASA 25 to 3200.

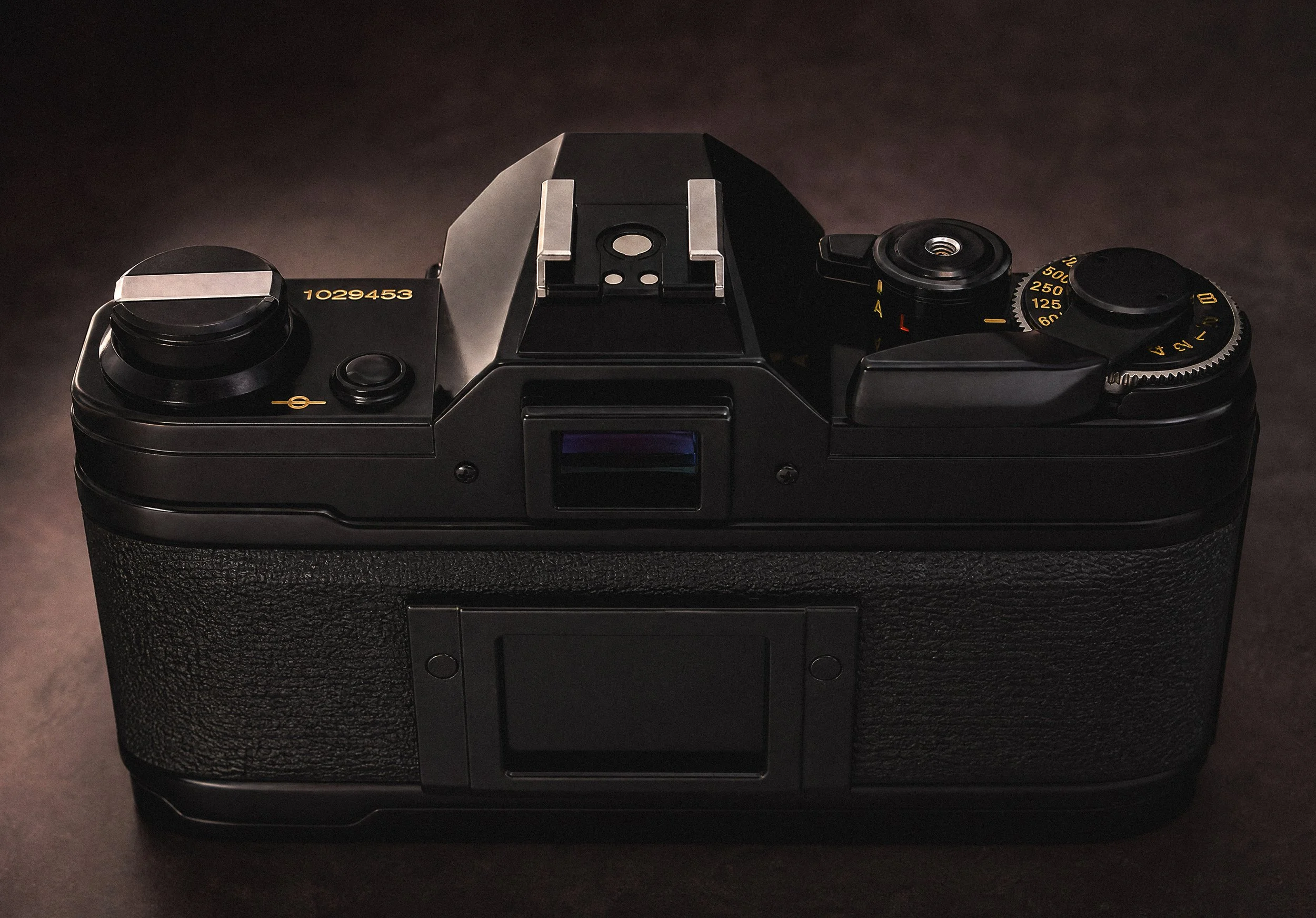

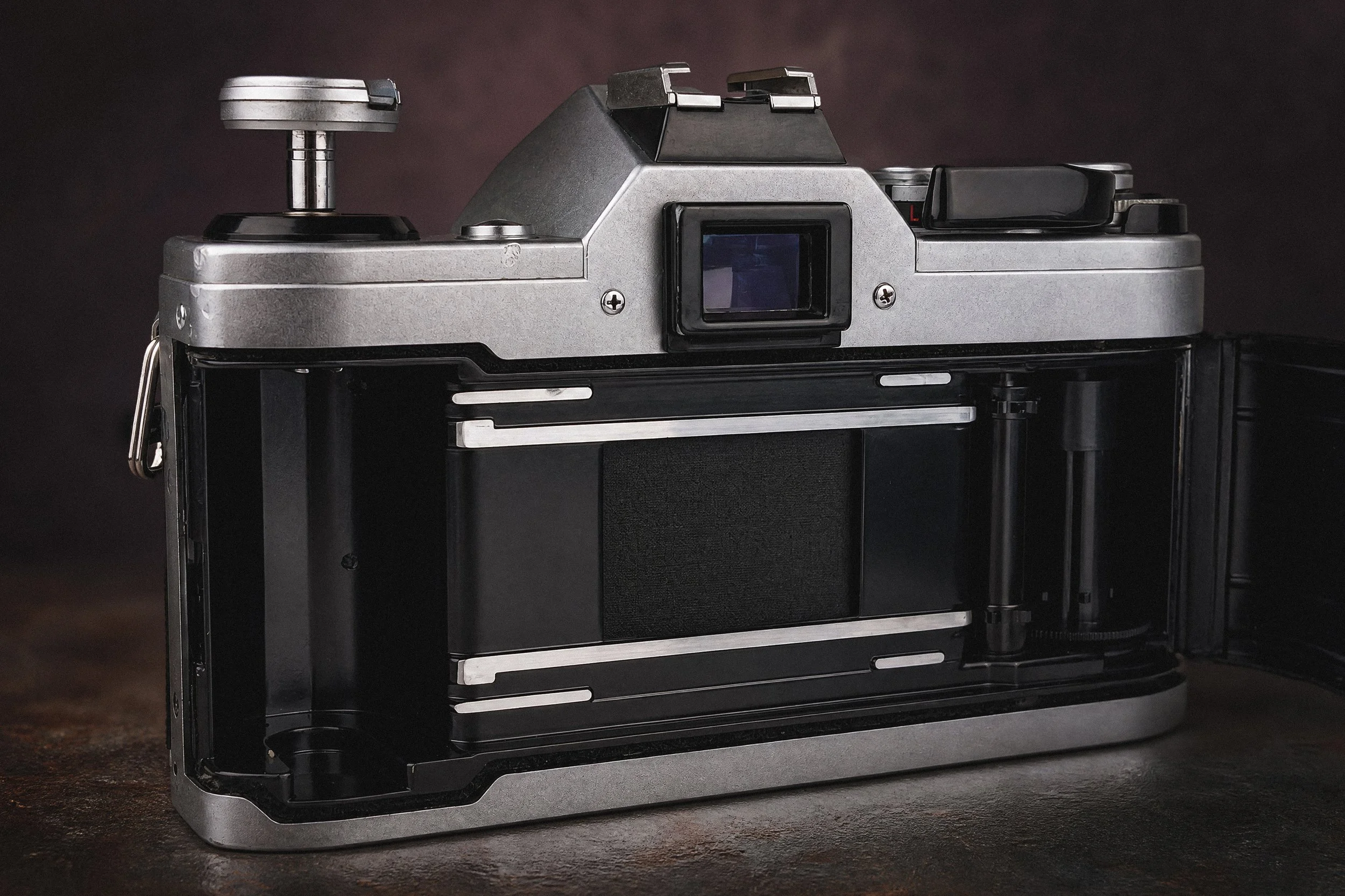

The back of the camera is completely plain, with just the viewfinder behind the prism housing, and the film door with the door latch to the left and the hinges to the right, from this viewpoint. There’s not even a window to check the film that you have loaded — instead there is a holder for displaying the end of the cardboard film packet to serve as a reminder.

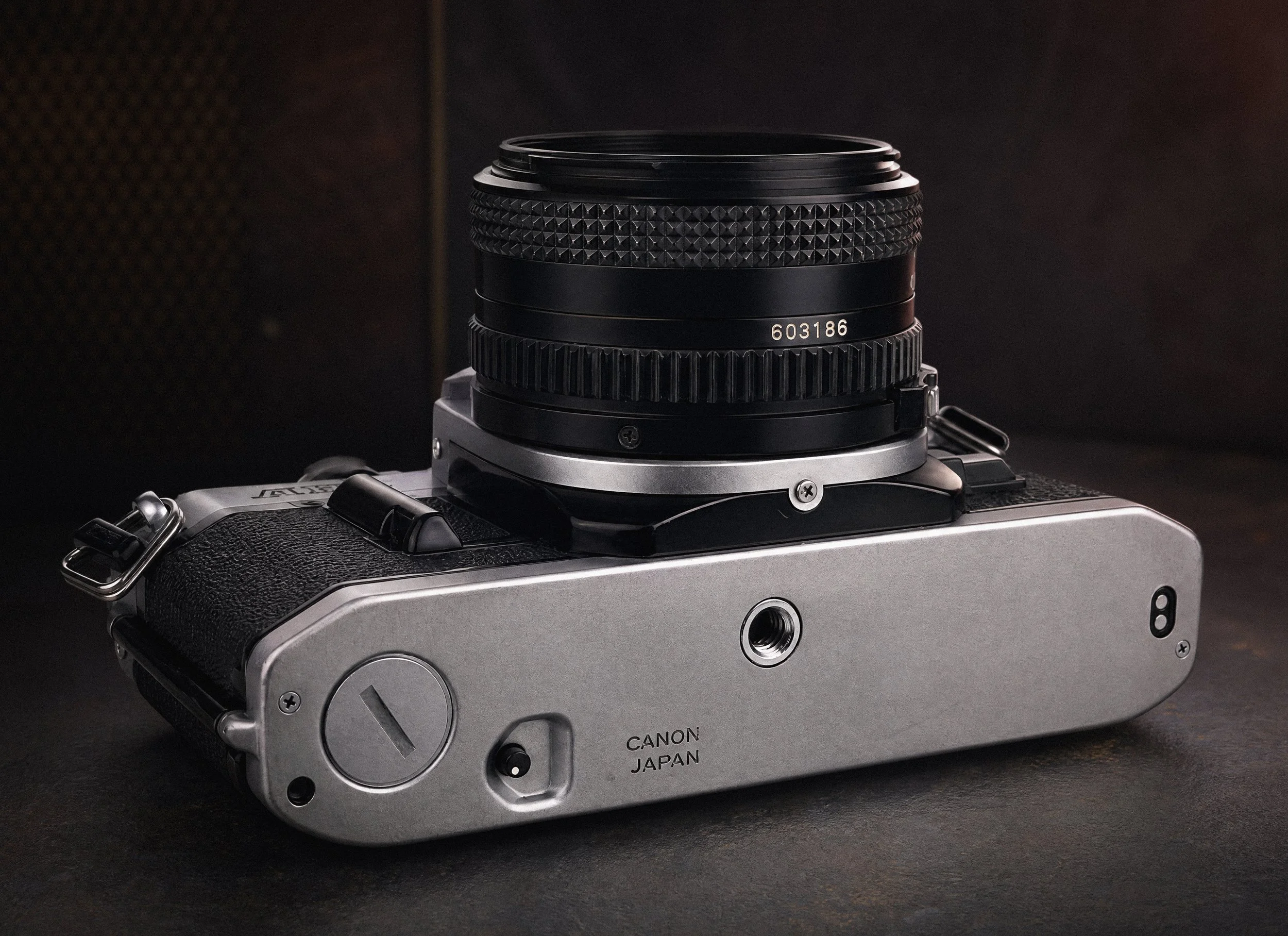

On the baseplate there is more to see. At the left, the circular winder coupling cover and the small winder positioning hole just below it — which allow attachment of the Power Winder A accessory. Further right, the recessed film rewind button, serial number and CANON JAPAN stamp, and the tripod mount centrally. At the far right, the control terminals for Power Winder A.
Metering and exposure
The AE-1's metering system uses a silicon photocell (SPC) for through-the-lens centre-weighted full-aperture measurement, which was a notable upgrade over the cadmium-sulphide (CdS) cells used in earlier Canon SLRs. The SPC responds much faster to changes in light level (a CdS cell takes a noticeable fraction of a second to settle, while an SPC responds essentially instantly), has no memory effect after exposure to bright light, and has a wider dynamic range — Canon quoted a metering range of EV 1 to EV 18 at ISO 100 with an f/1.4 lens, which means you can meter accurately from a very dimly-lit room to bright snow under direct sunlight without any difficulty. The ISO range is 25 to 3200, set by a ring around the shutter-speed dial on the top plate.
Exposure modes are two: shutter-priority AE (you set the shutter speed, the camera picks the aperture via electronic coupling to an FD lens with its aperture ring set to the "A" position), and full manual (you set both shutter and aperture, and the viewfinder needle shows the meter recommendation against your chosen aperture). There is no aperture-priority mode and no program AE — those came with the AV-1 (1979) and the AE-1 Program (1981) respectively. There is also a small exposure-compensation facility on the rear of the camera, giving ±1.5 EV of override, and an AE-Lock button that lets you meter from one part of the scene and recompose before firing. The viewfinder shows the meter needle on the right edge, with an aperture scale that updates in real time as you change the shutter speed or as the light changes. It is, for an automatic camera of its era, a remarkably clear and informative finder.
The microprocessor — which Canon supplied from their own electronics division but which used circuit designs developed with Texas Instruments and Toshiba — handled the entire calculation of correct exposure, the coupling between the meter reading and the aperture ring on the lens, the shutter-speed selection in priority mode, and the actuation timing of the shutter curtains themselves. By absorbing all of these functions into a single chip, Canon were able to eliminate roughly three hundred individual mechanical components that would have been needed in a conventional electromechanical design — which is the parts-count reduction figure Canon themselves quoted in their original marketing materials, and which is what made the AE-1's aggressive launch price possible (link). The CPU is, by modern standards, a primitive piece of silicon — a few thousand transistors at most, running at very low clock speeds — but it is the chip that established the template for every microprocessor-controlled SLR that followed it.
Black, chrome, and the question of finish

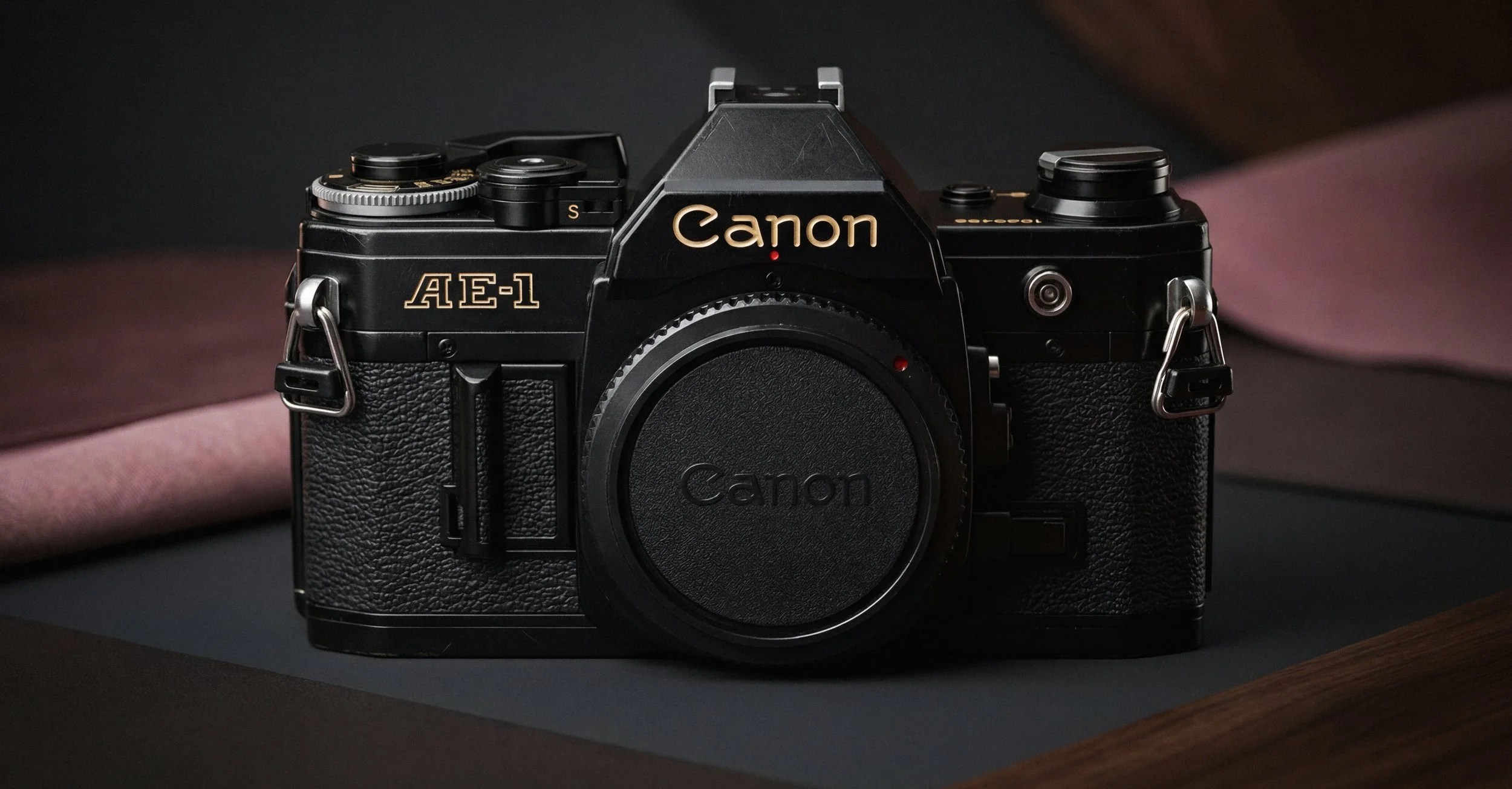

The AE-1 came in two principal cosmetic finishes during its eight-year production run: the standard black-with-chrome-top version (technically a satin-black body with a polished chrome-plated top plate, bottom plate, and lens-release lever), which is what most buyers in 1976-1984 actually bought; and the rarer all-black version (black body with matte-black-painted top and bottom plates), which Canon offered as a slightly more expensive alternative aimed at buyers who wanted the AE-1 to look more like a professional camera (CollectiBlend). The all-black version is uncommon enough to be slightly collectable today, but not so rare as to command a dramatic premium — a clean working all-black AE-1 in 2026 will typically fetch £100-£140 against £70-£100 for the equivalent chrome-top body, which is a meaningful but not extravagant uplift.
The two AE-1s photographed in this post include one of each variant. The chrome-top body is closer to the "default" AE-1 that most owners of the era would have had, while the all-black version is the slightly fancier sibling. Both bodies are wearing the same lens — the New FD 50mm f/1.8 — and both work exactly the same way; the cosmetic finish is the only meaningful difference between them. There is, however, a small visual difference in how the controls read: on the chrome-top body, the engraved white-on-black markings on the shutter-speed dial and ASA ring are highly legible against the polished chrome, while on the all-black body the same markings are picked out in white-on-matte-black, which gives a slightly more subtle and less obviously-labelled look. Photographers who want their gear to look discreet tended to prefer the all-black version; photographers who wanted their gear to be quickly readable in poor light tended to prefer the chrome-top.
Raffy’s Green Machine, Fordwich, October 2008
I came to the AE-1 about thirty years after most of its original buyers, in late 2007, by which time the eBay second-hand market in old film cameras had reached the sweet spot where good clean A-series bodies were still being sold by their original owners at sensible prices but had not yet been bid up to the levels they would reach in the 2020s analogue revival. I bought my two AE-1s — the chrome-top and the all-black — from two different sellers over a period of about three weeks, paying I think around £40 for the chrome and £55 for the all-black, both with a New FD 50/1.8 attached. They were the kind of bodies that had clearly been carefully looked after for thirty years and then gently set aside when their owners moved to digital, and both arrived in working order with no cough, no light-seal degradation, and the original Canon neck straps still attached.
The photograph above was shot on one of those two bodies the following autumn, in October 2008, on a Sunday-morning family walk along the Stour Valley Way through Fordwich in Kent. Fordwich is a small village just north-east of Canterbury, on a bend in the Great Stour where the river opens out into the wetlands around Westbere Lakes — a former gravel-pit site that's now a Site of Special Scientific Interest and one of the better local walking routes for getting the boys out of the house on a Sunday morning. The light was the soft late-October Kent sunlight coming through still-green willow and alder canopy along the river, and the path was a narrow gravel-and-earth track running through low scrubby vegetation between the lakes and the river.
The subject of the frame is my son Rafferty, who at the time was seven years old, and his prized Green Machine trike — the modern reinvention of the 1970s Big Wheel, designed so that the rear wheels can be steered independently of the front wheel to allow controlled skids and slides. Rafferty had brought it on the walk specifically because the Stour Valley Way path had several long straight gravelled sections that were perfect for pulling stunts on, and he had spent most of the morning racing ahead of the rest of us, executing dramatic skids around the corners and waiting at the bottom of each slope for the rest of us to catch up. The frame shown was taken at one of those waiting points, with Rafferty paused mid-track looking up at the camera, both hands on the handlebars, with the look of a child who is just slightly indignant at having been made to stop for a photograph.
The film is Kodak TMAX 400, and the AE-1's metering has done an excellent job of reading the dappled woodland light through the canopy. The bright midground (Rafferty himself, the silver-grey of the Green Machine) is well-exposed and the shadow detail under the trees is open and readable; the highlights on his hair and on the chromed trike handlebars are crisp but not blown. The lens is the New FD 50mm f/1.8 — the same lens worn by the chrome body in the studio shots above — and the perspective in the frame is the result of getting in close and low, crouching down with the camera not far above path level to put the trike's big front wheel into the foreground and Rafferty's face into the middle distance. The TMAX 400 grain pattern is unmistakable in the foliage at the edges of the frame, sitting nicely in the texture of leaves and gravel without ever intruding.
What it's like to own one now
Forty-nine years after launch, with 5.7 million units in circulation and a small but lively community of repair technicians keeping them running, the AE-1 sits in a particular position in the modern second-hand market. Clean working examples on UK eBay can be found between roughly £70 and £150 for the chrome-top body with a New FD 50/1.8 attached, slightly more for the all-black version, more again if the body has been recently serviced and confirmed cough-free. It is, by some margin, the cheapest entry point into the FD-lens system, and it is the camera I would recommend to almost anyone who asked me how to get started with manual-focus 35mm film photography on a sensible budget.
What you get for the money is a camera that does the basics extremely well. The viewfinder is bright and clear. The meter is accurate and fast-responding. The shutter-priority automation is unobtrusive and reliable. The build is light enough for a long walk and solid enough not to feel cheap. The FD lens range is enormous, deep, and almost entirely available second-hand for fractions of what equivalent modern lenses cost — a New FD 50/1.8 will set you back £20-£40 in good condition, a New FD 28/2.8 perhaps £50-£70, and the more exotic New FD primes (the 24/2.8, the 35/2, the 85/1.8) remain available at prices that would have been considered cheap even in 1985. For anyone who wants to learn the fundamentals of 35mm film photography without spending a great deal of money, the AE-1 plus a New FD 50/1.8 remains, in 2026, an outstanding starter kit.
The two genuine maintenance concerns are the Canon Cough (already discussed) and the light seals. The black foam-rubber light seals around the film-door hinge, the back-door edges, and the mirror damper degrade over decades into a sticky tarry mess that fails to seal properly and which contaminates everything it touches. Replacement light-seal kits are widely available on eBay for under £10, and the replacement procedure is genuinely straightforward — a Sunday afternoon's work with a cotton bud, some isopropyl alcohol, and a fresh roll of self-adhesive foam tape. Most AE-1s sold today have either already had their light seals replaced or genuinely need them done before they go back into service; check before you buy.
Beyond those two issues, the AE-1 is one of the most reliable 35mm SLRs ever made, simply by virtue of the staggering volume in which it was produced. Parts are everywhere. Service manuals are widely circulated. Technicians who know the camera intimately are still working. And the camera itself — half a century after Canon's engineers sat down with a brief to build something nobody else had built before — continues to do exactly what they designed it to do: take photographs cleanly, reliably, simply and well, with the kind of unfussy competence that earned it the largest sales of any 35mm SLR in history.
