Canon EOS 10
The Canon EOS 10 — known in North America as the EOS 10s, and as the EOS 10s QD in its Quartz Date variant — is one of those late-twentieth-century cameras that achieved a curious split personality almost immediately after launch. On paper, in March 1990, it was the most technologically ambitious mid-range autofocus SLR Canon had ever made: the first EOS body with multiple AF sensors, the first with selected-focus-point illumination in red, the first with eight-zone evaluative metering, the first with a sprocketless film transport, and — most peculiarly — the first 35mm camera anywhere with a built-in barcode programming system that let you transfer pre-canned exposure presets from a small printed reference book to the camera via an accessory barcode wand. In practice, it turned out to be a perfectly competent enthusiast SLR with one famously useless gimmick bolted on the side, and went on to win both the European Camera of the Year 1990-1991 and the Japanese Grand Prix 90-91 design awards before settling into a steady five-year production run as Canon's mid-tier offering until being quietly replaced by the EOS 50/50E in 1995 (Canon Camera Museum).
I bought my own EOS 10 in 1990, almost immediately after it appeared in British shops, by trading in my EOS 620 against it at a camera shop in central London whose name I genuinely cannot now remember. Looking back at the decision from thirty-six years later, I can see fairly clearly that I was talked into the swap by some combination of new-camera magazine hype, shop-counter enthusiasm and the genuine pleasure of buying a new camera, rather than by any pressing photographic need. My three-year-old EOS 620 was doing absolutely everything I needed of it, and the EOS 10's various refinements over it were almost entirely orthogonal to the kind of casual photography I was doing in those years. Knowing my predilection for shiny things, I suspect the glowing red AF focus marks in the viewfinder may have been a factor.
What I did not anticipate at the time was that the EOS 10 would, by sheer accident of timing, end up being my primary 35mm camera for the next fourteen years, not replaced until I went fully digital in 2004. Through that long stretch, my photography had taken a back seat to medical training, getting married, buying a house and starting a family, and the EOS 10 had quietly become "my camera" — the body that got pulled out of the cupboard for birthdays, weddings, weekends away, and the births of my first two children. When I came to write this article and searched the Lightroom catalogue for everything tagged "eos10", I was startled to discover quite how comprehensively this slightly unloved mid-range body had documented the entire formative decade of my adult life.
A short history of the camera
By 1990 the EOS system was three years old and Canon had already built out a substantial range of bodies on top of the EOS 650/620 launch chassis: the EOS 750/850 QD of 1988 (entry-level, fixed-focus-screen, simple metering), the EOS 630 QD of 1989 (a development of the 620 with seven user-customisable functions and a 5fps motor), and crucially the EOS-1 of September 1989 (the first professional EOS, with weather sealing, a 100% pentaprism viewfinder and the BASIS autofocus system Canon developed specifically for sports and news work). The EOS 10 was conceived as the consumer-end inheritor of the EOS-1's BASIS technology — taking the professional camera's autofocus expertise and packaging it in an enthusiast body at less than half the price.
Two cameras were announced together in March 1990: the EOS 700 QD (a simpler, single-AF-point body sold at the bottom of the mid-range) and the EOS 10/10s QD (the new mid-range flagship). The EOS 10 introduced four genuinely significant pieces of new EOS technology in one body. First was a new three-point Multi-BASIS autofocus sensor, replacing the single-point AF systems of every earlier EOS body except the EOS-1, and arranged horizontally across the centre of the frame — the EOS-1 had three points but arranged differently. Second was Canon's first eight-zone evaluative metering system, coupled to the AF points so the camera knew which part of the frame the photographer was actually trying to focus on. Third was the red-LED-illuminated focus point indicator in the viewfinder — when an AF point activated, the small etched bracket around it lit up briefly in red, the first time this had been done on any camera and a feature that would spread across the entire industry within a few years. And fourth was the barcode reader programming system, which we will get to (678 Vintage Cameras).
The camera was launched in two main variants, externally identical apart from the back: the plain EOS 10s (with a standard hinged back) and the EOS 10s QD (with a quartz-date back that imprinted date/time data on the bottom-right corner of each frame, controlled via a small bank of buttons inside a hinged cover on the back of the camera). In August 1991, Canon marked production of its 60 millionth camera with a special EOS 10 Commemorative Kit sold in a limited number of titanium-finish bodies — the only EOS 10 ever made in anything other than the standard matte-black plastic finish, and now an extremely sought-after collector's item. The camera stayed in production until early 1995, when it was replaced by the EOS 50/50E (sold as the Elan II/IIe in North America), which carried forward the same three-point AF concept but added eye-controlled focus point selection, an LCD-illuminated top-plate display, and a substantially more refined external design.
The barcode reader
The single most-discussed and most-derided feature of the EOS 10 is, of course, the Barcode Program system, the world's first attempt to put a barcode-based programming interface on a 35mm camera. The dark-red circular indented bump visible on the right lower corner of the camera body (as viewed from the front) is not, as one might reasonably assume, a self-timer LED or a remote control sensor: it's the receptor window / activation button for the Canon Barcode Reader E, a separately-sold handheld accessory the size of a chunky permanent marker, with a barcode-reading nozzle at one end and an infrared transmitter LED at the other (Utah Film Photography).
The way it was supposed to work was as follows. Canon supplied a small printed Barcode Book with the camera, containing example photographs of 23 specific shooting scenarios at launch (plus four more added in 1991): "Portrait against a bright background", "Wedding with candlelight", "Sports action", "Close-up with zoom lens macro setting", "Baby portrait", "Stained glass from close range", and so on. Each example photograph was accompanied by a printed barcode that encoded all the relevant camera settings — shutter speed, aperture, ISO, AF mode, metering pattern, flash use, exposure compensation, focus point selection — that Canon's photographers had determined would produce that specific look.
To use the system, you would find the photograph in the book that most closely resembled what you wanted to shoot, drag the barcode reader's nozzle across the barcode underneath it (which the reader announced with a small beep), then press the reader's other end onto the small red receptor button on the camera body. Pressing the receptor in slightly would transfer the settings via infrared. The camera would beep, set itself to the appropriate mode, and you would shoot.
In practice, almost nobody ever used it. The barcode reader was sold separately at considerable extra cost; the printed book was bulky and easy to lose; the 23 scenarios on offer were either obvious enough (Portrait, Sports, Close-up) that anyone reaching for the dedicated PIC modes would have got the same settings, or so specific (Stained glass from close range, Wedding with candlelight) that they were genuinely unlikely to be exactly what you needed; and the entire workflow — find the example photo, scan the barcode, transmit to camera, set up the actual shot — took considerably longer than just turning the mode dial to Manual and dialling in the settings you wanted. The barcode reader is also, on a substantial number of surviving EOS 10 bodies, the part most likely to have failed: the small infrared receiver behind the receptor button is electronically straightforward but mechanically fragile, and the chance of finding both a working camera and a working accessory reader in 2026 is essentially nil (Camera Legend).
Canon themselves quietly abandoned the barcode system on every subsequent EOS body. By the time the EOS 50/Elan II appeared in 1995, the small red receptor had simply disappeared, the Barcode Book had vanished from the accessories catalogue, and Canon's marketing materials politely declined to mention it had ever existed. The EOS 10 is, almost certainly, the only mass-market camera ever made that included a barcode reader as a programming interface, and it stands today as a small architectural curiosity from the brief period in the late 1980s and early 1990s when consumer electronics companies were trying to apply barcode technology to absolutely everything they could think of — from cookery books to home audio systems to lawnmowers — before recognising that the technology only really made sense at supermarket checkouts.
The small dark-red receptor bump on my EOS 10, and presumably on every other one still in working order, has been quietly doing nothing for thirty-six years. It is, in a small way, my favourite feature on the camera.
What's inside
The EOS 10's specification reads, with hindsight, like a properly grown-up mid-range autofocus SLR — slightly less professional than the EOS-1 sitting above it, considerably more sophisticated than the EOS 700 and 1000F sitting below it, and broadly comparable in capability to its main contemporary competitors, the Nikon F-801s and the Minolta Dynax 7xi.
The shutter is a vertically-travelling electronically-controlled focal-plane unit with a top speed of 1/4000 second and a flash X-sync of 1/125 second, both inherited essentially unchanged from the EOS 620. Film speed range runs from ISO 6 to 6400 (set automatically via DX coding or manually via a button-and-dial combination), and the autoexposure bracketing range is ±5 EV in 1/2-stop steps. The camera offers an unusually wide selection of exposure modes for the period — nine in total: shiftable Intelligent Program AE, shutter-priority AE, aperture-priority AE, depth-of-field AE (a clever mode in which you focus on the near and far points of what you want sharp and the camera selects an aperture to keep both within depth of field), Programmed Image Control modes (Portrait, Landscape, Close-up and Sports — four of the ten PIC modes that had appeared on the earlier EOS 630), bar code mode, A-TTL flash AE, TTL flash AE, and full manual.
The autofocus system is the Multi-BASIS three-point sensor — three discrete linear sensors arranged horizontally in the centre of the frame, with the centre one being a high-precision cross-type and the outer two being single-axis. Each point can be selected manually by the photographer via a small dial-and-button combination on the back of the camera, or all three can be left active for fully-automatic point selection. AF modes are One-Shot (focus-priority, locks once acquired), AI Servo (release-priority, tracks moving subjects with predictive focus prediction control), and the then-new AI Focus AF (automatically switches between One-Shot and AI Servo depending on whether the subject is moving). The system can autofocus down to EV 0 at ISO 100 — about the light level of a single candle in an otherwise-dark room — and the AF auxiliary beam projected by the pop-up flash can target any of the three sensors specifically.
The viewfinder is a fixed eye-level pentaprism with 0.74× magnification and 92% frame coverage. The focusing screen is the New Laser-Matte Type-A screen, which Canon developed specifically for the EOS 10 to support the red-LED focus point illumination — the AF point outlines are etched into the back of the acrylic screen, and an internal red LED illuminates the appropriate bracket when its sensor activates. A side-effect of this design is that the EOS 10 cannot use interchangeable focusing screens, which was a small step backwards from the EOS 620's seven-screen interchangeable system. The viewfinder also displays shutter speed, aperture, exposure compensation indicator, AF confirmation, partial-metering circle, AE lock, flash readiness, and a four-segment camera-shake alert that warns the photographer when shutter speed and focal length combinations are likely to produce blur.
Other refinements include a built-in motor drive rated at 5 frames per second in continuous mode (impressive for a mid-range body in 1990), a built-in pop-up flash with guide number 12m at ISO 100 (linked to the AF system so output is biased toward whichever AF point is active), a built-in intervalometer for time-lapse work, a mirror lock-up function (omitted on most subsequent EOS bodies until the professional EOS-3), and compatibility with the Canon RC-1 wireless infrared remote control (the EOS 10 was the first EOS body to support it). The body itself is a polycarbonate-clad metal chassis, 154 × 105 × 67mm, 625 grams without battery, in a substantially more rounded and ergonomic shape than the squared-off EOS 620 it replaced (Mir EOS 10s).
The Controls
Considerable thought went into the design of the still relatively new EOS bodies, and the clean, minimalist control layout reflects this. The move away from traditional industrial design and towards ergonomic curves that began with the T90, had continued to evolve.

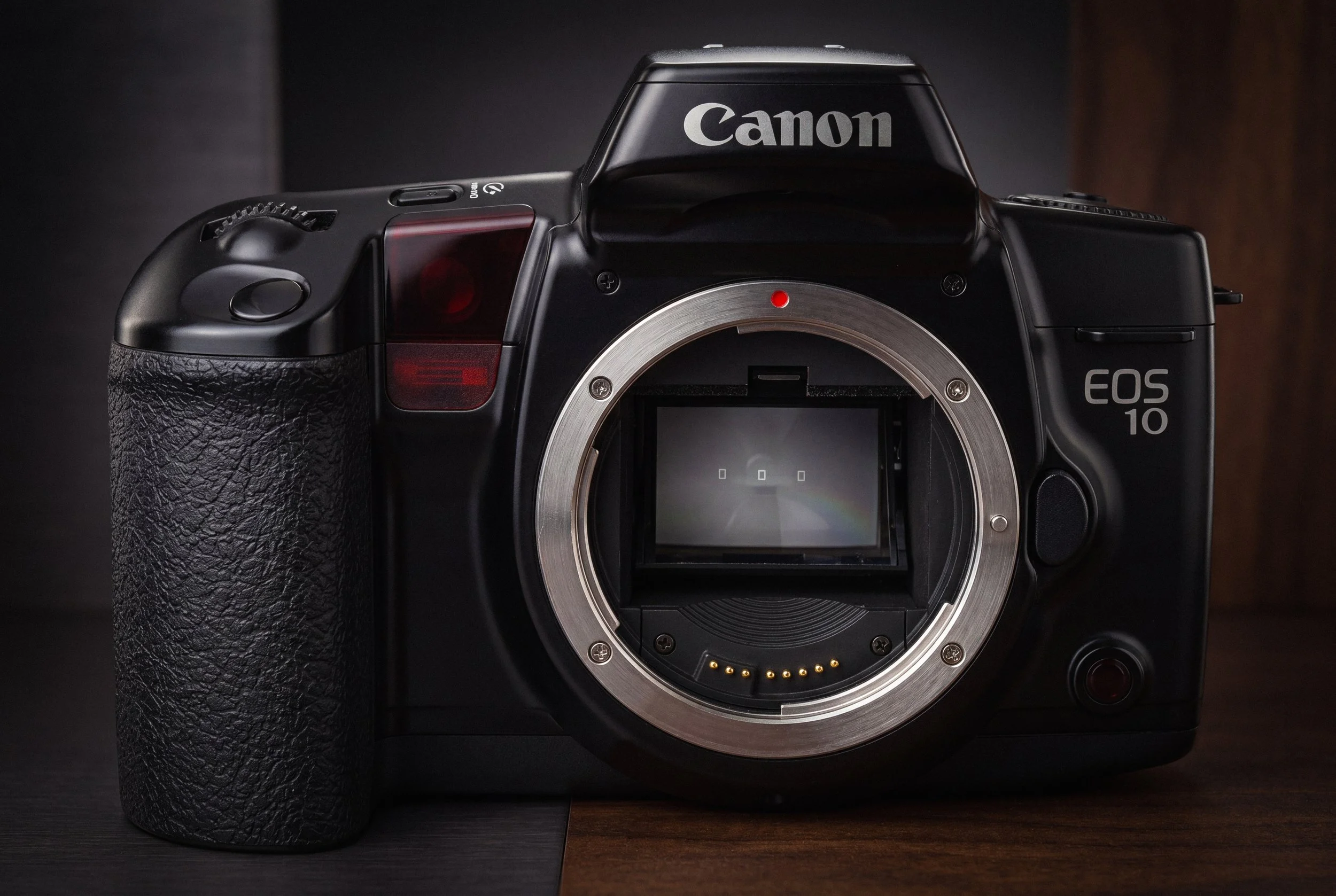

On the front of the camera, to the left of the lens mount (as viewed from the front), there’s the large, comfortable handgrip, with the shutter release and Electronic Input Dial visible on its upper surface. At the 11 o’clock position there’s an unusually large red semi-transparent window in two parts. The upper part is the AF Auxillary Light Emitter, which also acts as the self-timer and remote control indicator. The lower, slightly frosted part is the Remote Control Receiver which supports the Canon RC-1 wireless infrared remote control. On the right of the lens mount, at the 3 o’clock position, the large black lens release button. At the 5 o’clock position, on the lower corner of the body, is a raised black bezel with an indented, dark red, frosted, translucent central button. This is the receptor for the Canon Barcode Reader E; pressing the infrared LED on the reader into the receptor button activates the data transfer to change the settings in Barcode Program mode.

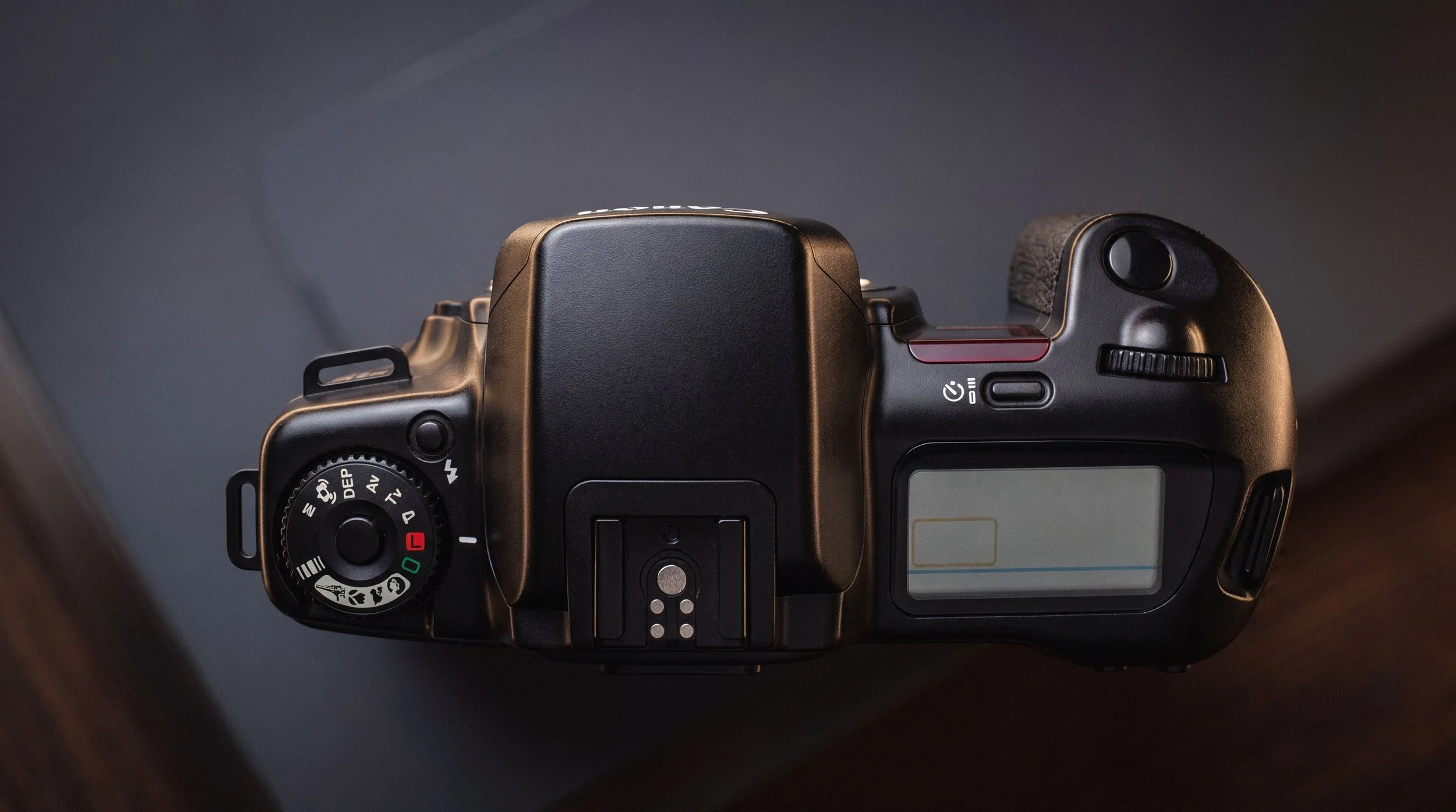

On the top plate, to the left of the prism housing, the space is dominated by the large Command Dial which has a central locking button. Turning the dial clockwise from the Lock position allows you to set Program, Shutter Priority, Aperture Priority, Depth-of-Field AE, Camera Shake Alert and Manual exposure modes. Turning anti-clockwise from Lock, you can set Green Zone (Full-Auto) mode, Programmed Image Control modes for Portraits, Close-Ups, Landscapes and Sports, and the infamous Barcode Program mode. Just forward of the dial lies the Pop-Up Flash activation button. The hot shoe sits on top of the prism housing, and the right side of the top plate is dominated by the large LCD display, with the Self-Timer and Remote Control button just in front of it. On top of the handgrip: the command dial designed to fall easily under your right index finger, and in front of that, the shutter button.

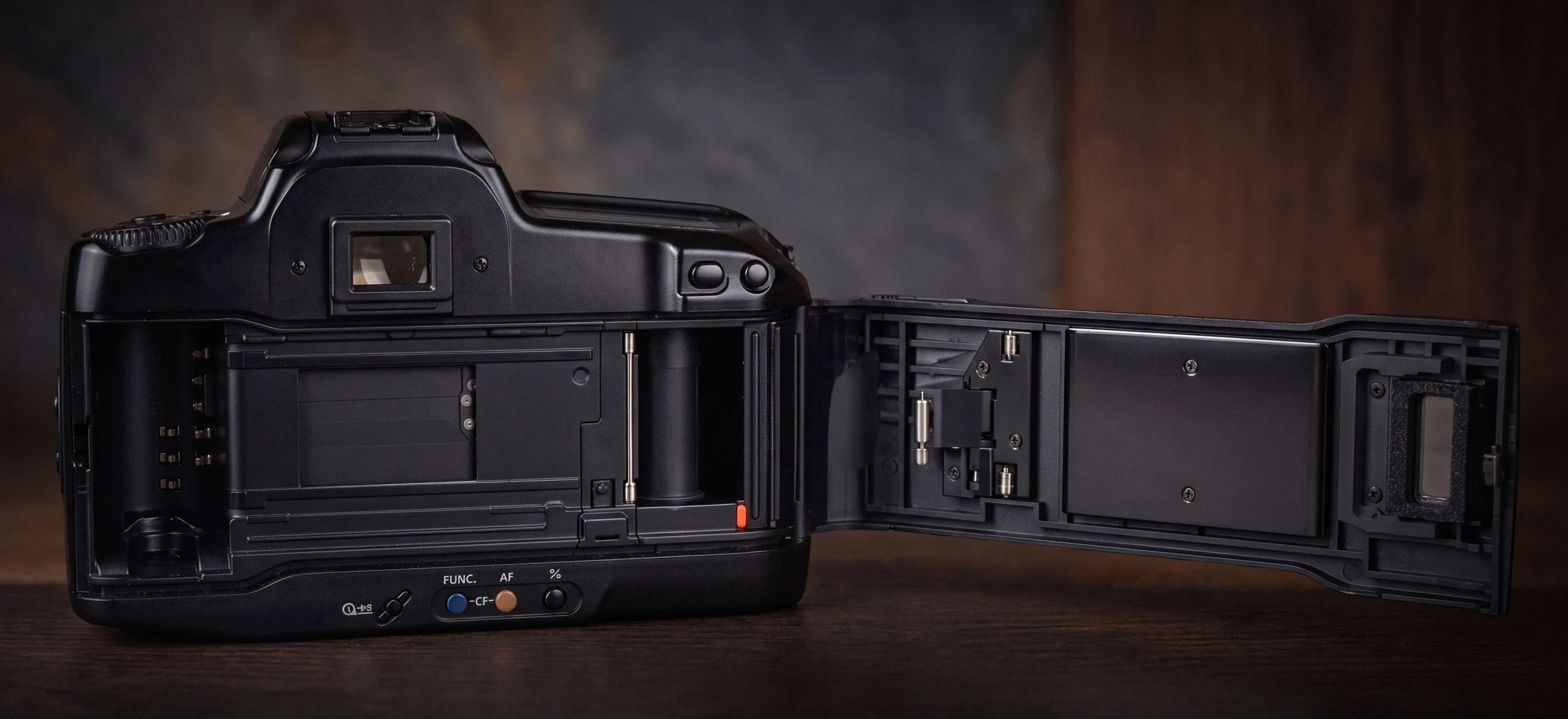

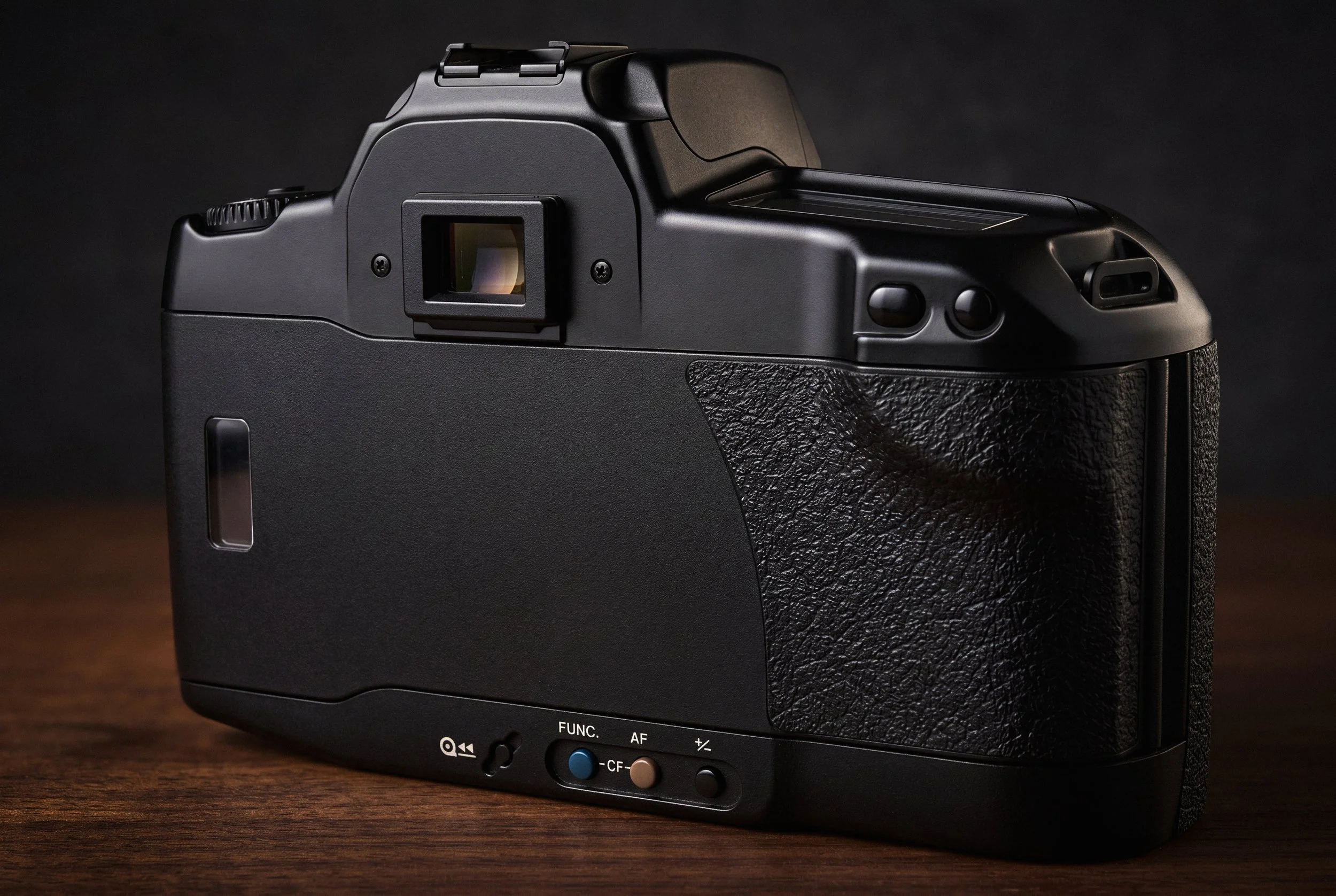

The back of the camera has only a few controls. Along the upper part, in the centre, the large viewfinder eyepiece, with detachable rubber eyecup. On the right, the moulded thumb grip, with two small buttons at the top: on the left the Focus Mark Button, and on the right the Partial Metering button. The camera back film door hinges at the right, and the latch and release button are on the left edge of the body. There’s a film window at the left of the door. Along the bottom edge there are four small buttons: a recessed film rewind button, a blue FUNC. (multi-function selection) button, yellow AF Mode button, and black Exposure Compensation button. These are used in conjunction with turning the Electronic Input Dial to adjust settings.

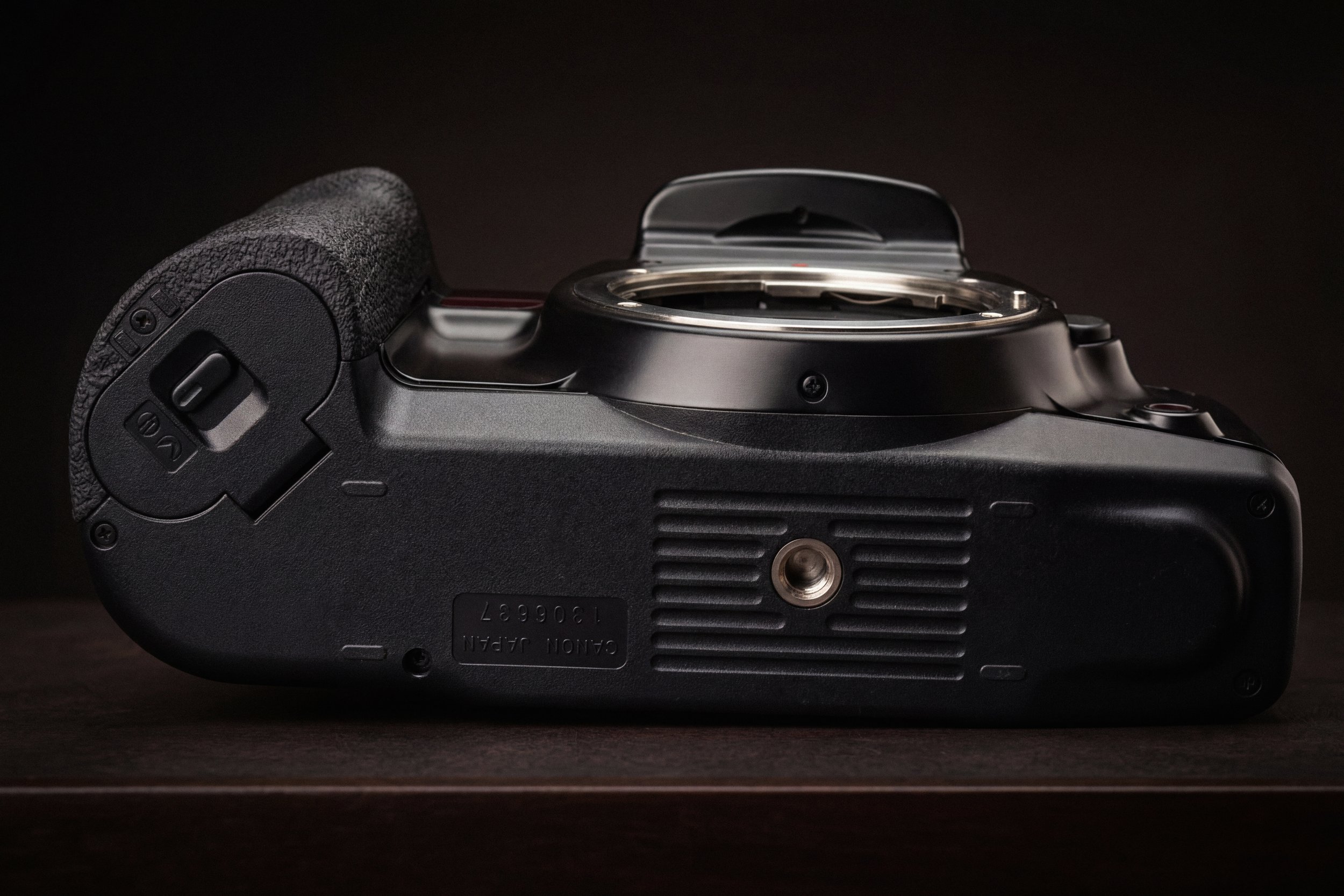

The base of the camera is mostly control-free and there’s only the central tripod mount, and the battery compartment door on the underside of the handgrip to mention here.
The lenses

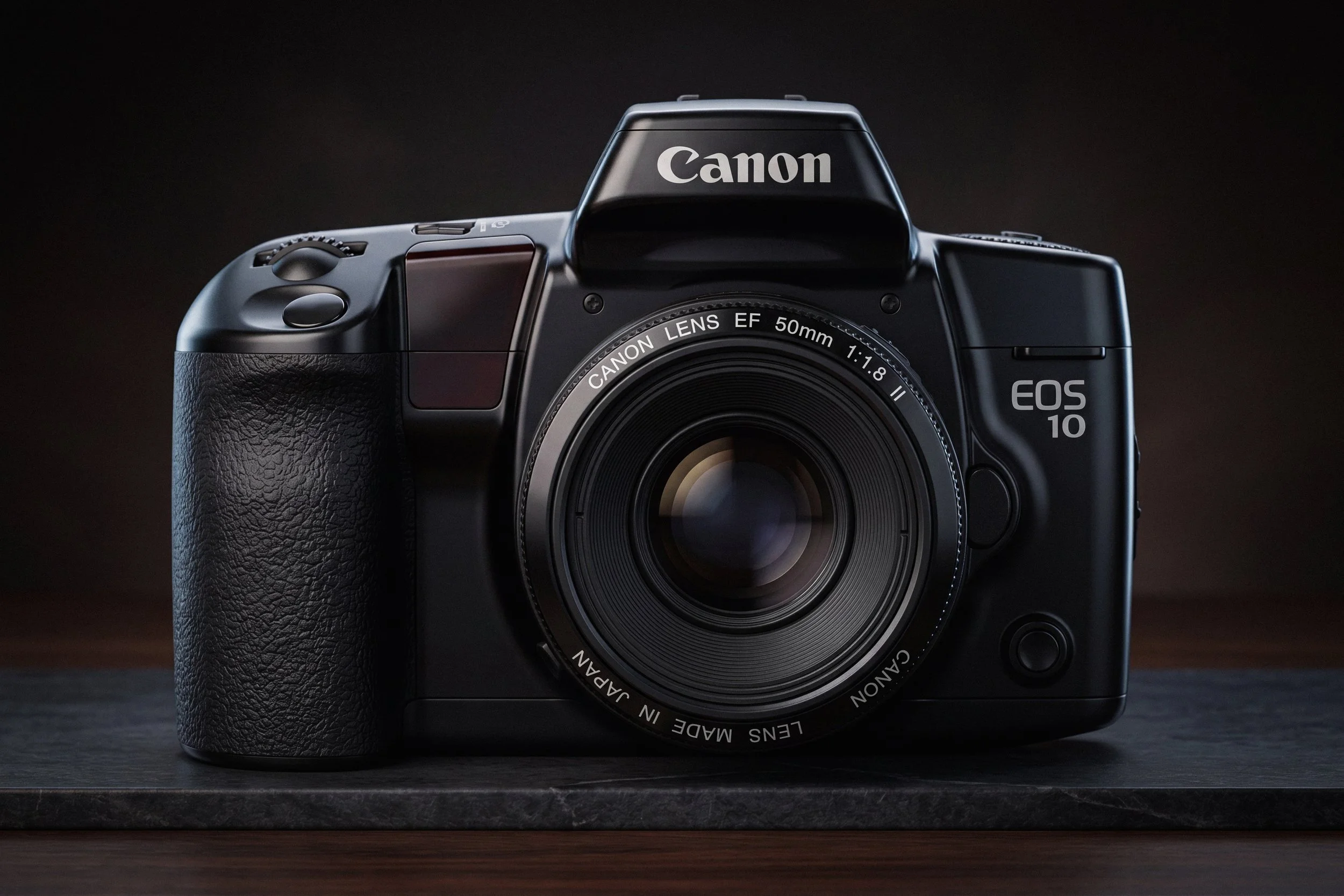

The lens fitted to the EOS 10 in the first image (at the top of the article) is the EF 50mm f/1.8 II, introduced by Canon in December 1990 — eight months after the EOS 10's launch, and the lens with which the camera would most frequently have been sold throughout its production run. The "II" suffix marks this as the second-generation version of Canon's "Nifty Fifty" 50mm normal lens: the original EF 50mm f/1.8 of 1987 had a metal lens mount, a proper distance scale on the focusing ring and a slightly heavier all-metal barrel; the 1990 II version is a cost-reduced redesign with a plastic lens mount, no distance scale, a much thinner focus ring at the front of the barrel, and a substantially cheaper appearance overall. The optical formula — 6 elements in 5 groups, double-Gauss with no special elements, 5-bladed diaphragm, 52mm filter thread — was carried over unchanged from the original, which is why the II version produces images that are essentially identical to those from the metal-mount original at a substantially lower price point (Wikipedia, PetaPixel).
The II version stayed in production for an extraordinary 25 years, from December 1990 until May 2015, when it was finally replaced by the EF 50mm f/1.8 STM. During those twenty-five years it became one of the best-selling autofocus lenses ever made — Canon never released exact production numbers but the lens is estimated to have sold in the multiple millions worldwide. Despite its plastic mount, slightly creaky build quality, audibly buzzing AFD focus motor and notoriously fragile front element, it produces sharp, contrasty, bokeh-rich images from f/2.8 onwards and reasonably soft, slightly glowing images at f/1.8, and is the lens most often recommended to people wanting their first proper fast prime for a Canon EOS body. On an EOS 10 specifically, it makes an excellent everyday combination — light, compact, with the slightly compressed perspective of a true 50mm prime on full-frame 35mm film, and with the small advantage that the EOS 10's three-point AF system handles f/1.8 focusing more reliably than the single-point systems on cheaper EOS bodies of the same period.

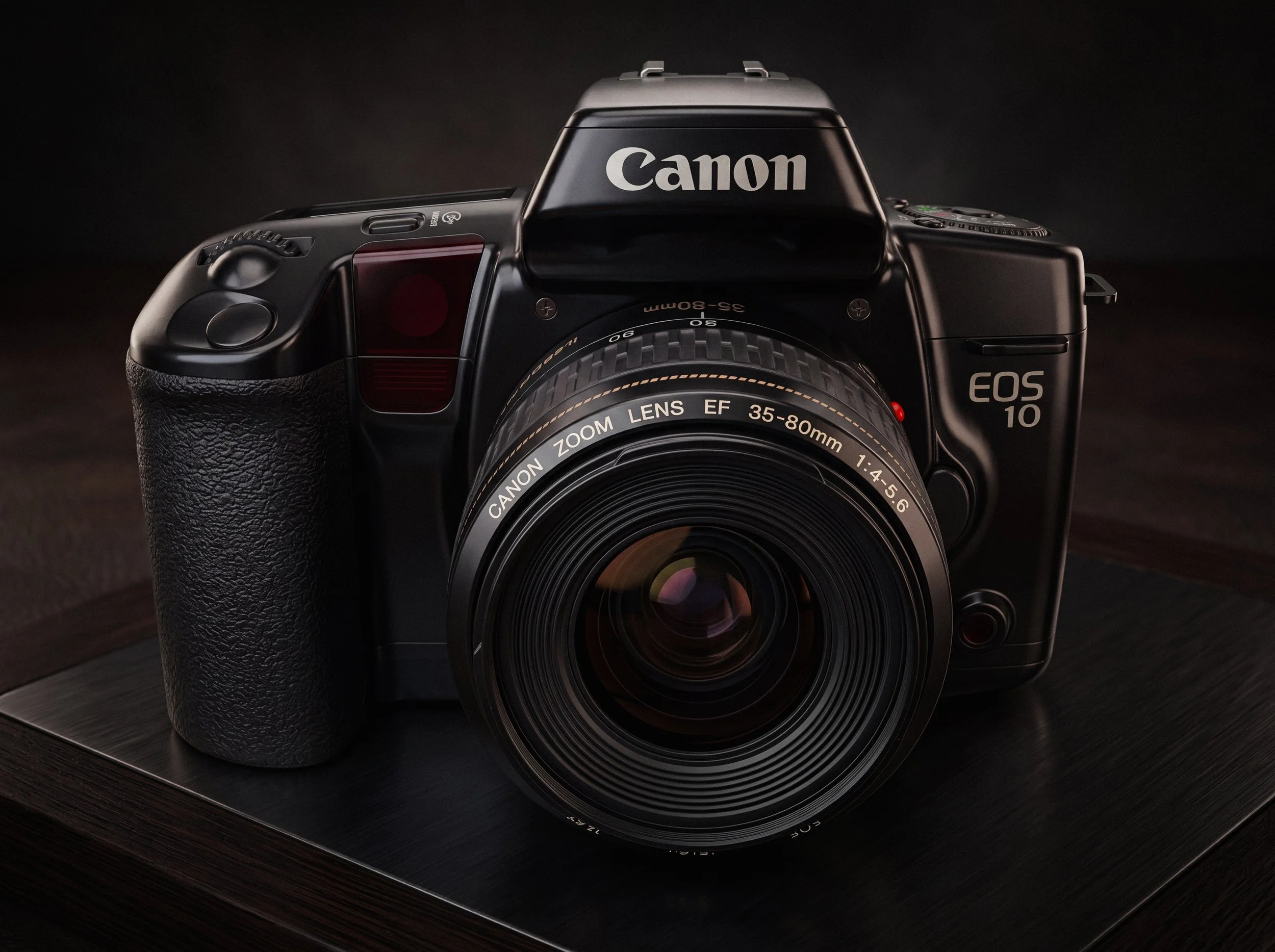

The lens on the final studio shot (above) is the EF 35-80mm f/4-5.6 USM, introduced by Canon in April 1992 at 26,000 yen — one of a long series of entry-level "kit" zooms Canon produced through the early 1990s, and the second of five different EF 35-80mm variants made between March 1990 and March 1995 (in order: the EF 35-80mm f/4-5.6 PZ of March 1990, the plain EF 35-80mm f/4-5.6 of September 1990, the USM version of April 1992, the EF 35-80mm f/4-5.6 II of September 1993, and finally the EF 35-80mm f/4-5.6 III of March 1995). All five share an 8-element-in-8-group optical design and a 52mm filter thread; the USM version is distinguished from its siblings by its built-in micro-USM ultrasonic focus motor, which gives faster and quieter autofocus than the AFD-driven versions, and which makes the small gold "USM" wordmark on the barrel one of the few visible cues to its position in the lineage (Canon Camera Museum).
The EF 35-80mm USM weighs 170 grams, is 65 × 61mm in dimensions, takes 52mm filters, focuses to 0.38m and offers a maximum magnification of 0.25× — modest specifications by any reasonable measure, but entirely appropriate for what it actually was, which was a budget consumer kit zoom intended to be sold with cameras like the EOS 1000F and the EOS 500 to people who had never owned a serious lens before and didn't intend to (FlynnGraphics). Optically it is competent rather than impressive — perfectly capable of producing usable family snapshots at f/8 with even illumination, but never the lens to reach for if you genuinely care about sharpness, contrast or bokeh. The all-plastic barrel and plastic mount were significantly criticised at the time and are universally criticised now, but the lens is in fact extremely durable in normal use, the plastic mount has proved much more shock-resistant than the metal mounts on more expensive lenses (it flexes slightly when knocked rather than transferring the impact to the camera body), and it weighs almost nothing.
The lens that actually took the sample frame below is not pictured in any of the studio shots, but is — almost certainly — the EF 35-135mm f/4-5.6 USM, introduced in March 1990 at the same time as the EOS 10 itself. This is a substantially more sophisticated lens than the budget 35-80 — Canon's first EF zoom with a rear-focusing system (in which only the rear lens groups move during focusing, keeping the front element stationary), 12 elements in 12 groups, a molded glass aspherical element to correct astigmatism, a 58mm filter thread, ring-USM autofocus with full-time manual focus override, and a substantially better optical performance than any of the entry-level zooms in Canon's range at the time (Canon Camera Museum).
This was the lens I bought with the EOS 10 in 1990, on the recommendation of the shop counter, and it stayed mounted on the camera for most of the next fourteen years. The 35-135mm focal range is unusually flexible — wide enough at 35mm for casual indoor work and group shots, long enough at 135mm for portraits and modest telephoto reach — and the rear-focusing optical design and ring-USM motor give it focus performance and image quality that hold up genuinely well on modern digital bodies, never mind on a 35mm film body of the same era. It is, in retrospect, the single most-used lens I have ever owned, and is the lens through which essentially every photograph I took between 1990 and 2004 was made. It is also, by happy coincidence, the lens almost certainly responsible for the sample frame below.
A rainy weekend in Coulsdon, March 2002
The sample frame above was taken on a wet Saturday morning in March 2002, in the Tesco car park on Brighton Road in Coulsdon, South London. We were spending the weekend with our friends Ruth and Nathan, who lived nearby. Rafferty had just turned eighteen months old — exactly the age at which a small child is mobile enough to walk a few steps and curious enough to want to participate in everything around them, but small enough to still need to be carried everywhere. Coulsdon in March of 2002 was wet — properly wet, in the way that South London weekends in early spring routinely are — but Raff was keeping nicely dry with a hat donated by his Uncle Nathan.
The hat — a proper grown-up adult Barbour, in oiled cotton, with a brim wide enough to keep the rain off an eighteen-month-old's entire upper body — sits in the frame at a slightly skew angle, having been hastily plonked rather than carefully fitted. The wet tarmac of the car park stretches out behind him, with parked cars visible, blurred in the background, and the late-winter sky a uniform grey overhead.
The film was Kodak Gold 200 or possibly Kodak Gold 400 — the standard high-street consumer C-41 colour negative film that Tesco's own in-store photo counter sold cheaply by the roll, and which we bought routinely throughout the early 2000s. The lens, on the basis of focal length, image rendering and the kind of subject distance that the frame implies, is almost certainly the EF 35-135mm USM at somewhere around 50-60mm.
What it's like to own one now
The EOS 10 in 2026 is one of the more interesting odd-camera-out items in the EOS film lineage. It's substantially undervalued on the used market — clean working bodies typically sell for £40-£70 in 2026, well below the price of similar-specification Nikon F-801s or Minolta Dynax 7xi bodies, and substantially below the price of the slightly newer and more elegant EOS 50/50E that replaced it. The barcode-reader gimmick has done the camera no favours in collector circles — it dates the body unmistakably to the late 1980s/early 1990s consumer-electronics-gone-mad era — and the slightly chunky, slightly rounded body styling has not aged as gracefully as either the more austere EOS 620 that preceded it or the substantially more refined EOS 50 that replaced it. It is, in short, the camera that everyone slightly forgot about, and that almost no Canon-system buyer specifically seeks out.
What you get for that £40-£70, though, is a camera that does almost everything that almost anyone would actually want from a film EOS body. Three-point autofocus, eight-zone evaluative metering, 1/4000 shutter, 5fps motor drive, depth-of-field AE, intervalometer, mirror lock-up, AI Servo with focus prediction, and compatibility with every EF lens Canon has ever made. The pop-up flash works, the film transport is automatic, the LCD display is clear and well-laid-out, and the body has aged remarkably well — the plastic and rubber are robust, the electronics are reliable, and clean examples remain available in numbers.
If you buy one, the failure modes to know about are the shutter blade bumpers — small foam pads that turn to a sticky black goo with age and can foul the shutter, producing the dreaded "bc" error on the LCD and a jammed shutter. This is a common but repairable problem on any of the early EOS bodies; budget £80-£120 for a service if buying an un-tested example. The other thing to verify is that the rear-door light seal hasn't crumbled (also typical for unmaintained examples, fixable with a kit and a steady hand). The camera takes 2CR5 lithium batteries — still widely available in 2026. Expect to pay around £8 each; they last for around 50 rolls of film.
Don't waste any time looking for the Barcode Reader E. It was a useless gimmick when new, and it's a useless gimmick now; finding a working one would be a small triumph of dedication, and using it would gain you precisely nothing photographically. Better to leave the small red receptor in the corner doing what it has been doing for the past three decades, which is patiently waiting for a signal that has long since ceased to be transmitted.
