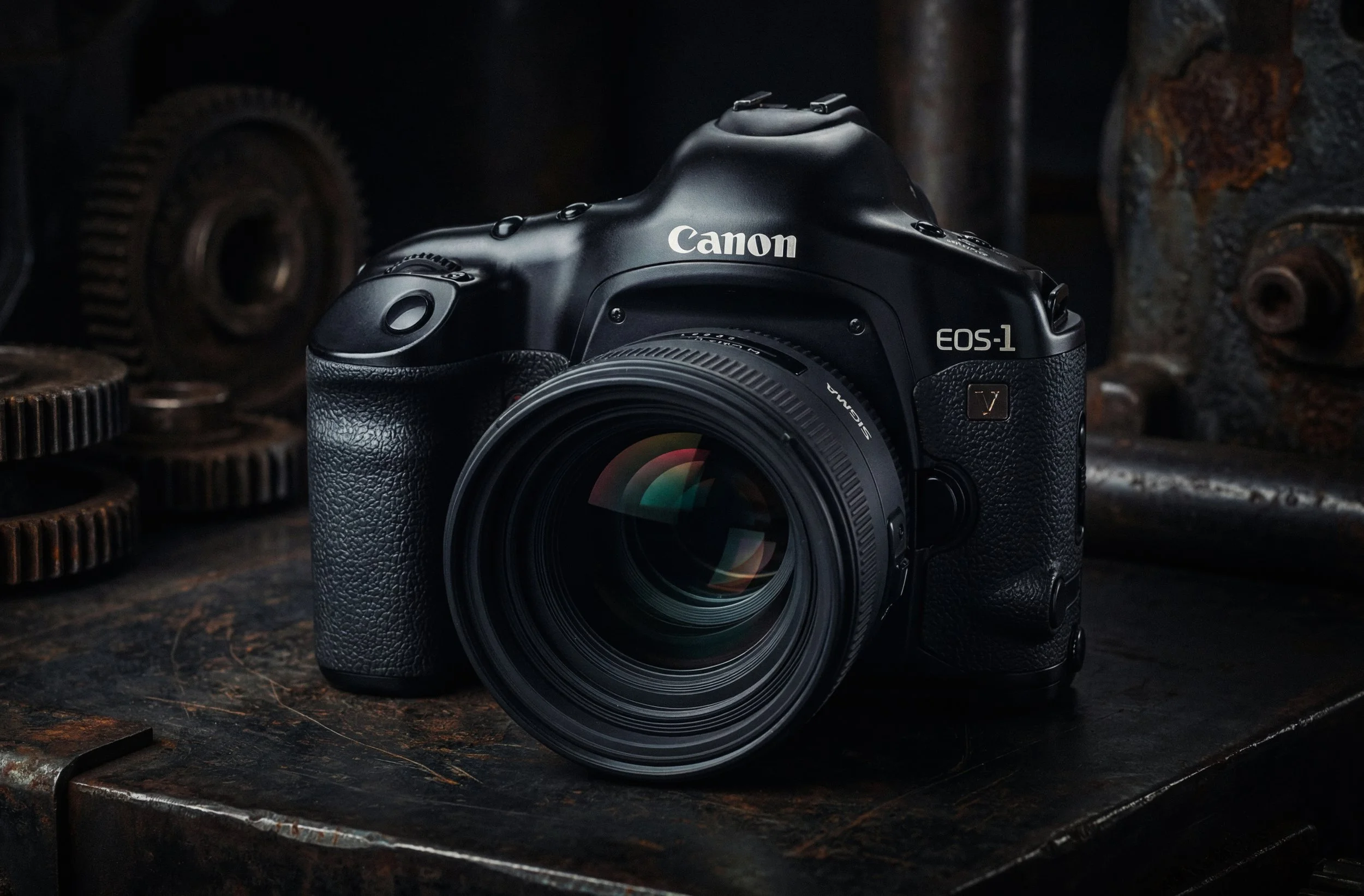

Canon EOS-1v
There is something quietly absurd about the EOS-1v. By the time Canon launched it, in March 2000, the writing was already on the wall for professional 35mm film — newspaper photographers had moved to DSLRs around 1999, the EOS-1D was less than a year away, and the entire trajectory of professional imaging was tilting toward sensors and away from emulsion. And yet Canon, in what looks in retrospect like an act of magnificent corporate stubbornness, decided that the right response to this was to build the most over-engineered film SLR in their history: 45 autofocus points, 21-zone evaluative metering, a magnesium-alloy chassis with seventy-two individually-sealed silicone gaskets, a shutter rated to 150,000 cycles, a built-in data-recording chip that could store metadata for ninety-nine rolls of film, and an optional motor drive that brought continuous shooting to ten frames per second — a figure that no moving-mirror 35mm SLR had ever reached before (Wikipedia).
It was Canon's swan song to the film SLR, and they delivered it not as a sentimental farewell but as a fully-loaded statement of intent. The EOS-1v stayed in production until 2010, with back-stock sold by Canon Japan all the way through to the formal discontinuation announcement in May 2018 (New Atlas), at which point Canon committed to continuing repairs only until October 2025 (DPReview). For a brief window in the early 2000s, before the EOS-1Ds Mark II made full-frame 16-megapixel digital both possible and approximately affordable, this was the camera that captured most of the colour magazine sports and news photography you saw on the printed page anywhere in the world.
A short history of how Canon ended up over-engineering the film SLR
The EOS-1v's lineage sits at the intersection of two Canon families: the professional EOS-1 series (EOS-1 of 1989, EOS-1N of 1994) and the technically-aggressive EOS-3 of 1998. The EOS-1N was the workhorse 35mm SLR of late-1990s professional photography, built around a robust if conventional five-point AF system inherited from the EOS-1, and it still soldiered on at most major newspapers and agencies through the end of the millennium. The EOS-3, launched two years before the 1v, was a different animal entirely: Canon had developed a brand-new 45-point area autofocus sensor for it, paired with their eye-controlled focus system (which let you select an AF point by looking at it through the viewfinder), and put it all in a lighter, mostly-polycarbonate body. The EOS-3 was the technology demonstrator. The EOS-1v was what you got when Canon took the EOS-3's electronics, hardened them, and stuffed them into a magnesium-alloy version of the EOS-1N's tank-like chassis (Luminous Landscape).
The result was, by any honest reckoning, the most capable autofocus 35mm SLR Canon ever shipped. Nikon's competing F5 (1996) and the later F6 (2004) are the only cameras that bear meaningful comparison, and even there the answer depends on what you're shooting: the F5's 1,005-segment colour matrix meter was a more sophisticated piece of metering than the 1v's 21-zone evaluative system, but the 1v's 45 AF points absolutely dwarfed the F5's five-point Multi-CAM 1300, and the 1v's body sealing was, by general consensus, the most thorough on any 35mm SLR ever made (Reddit). Sports photographers tended to go Canon; news photographers split fairly evenly. By around 2005 both systems were quietly bleeding their professional users to the new digital flagships — the EOS-1D Mark II, the Nikon D2H — and what had been a fierce two-horse race in the late 1990s gently dissolved into the digital era. The 1v outlived its rivals because Canon, alone among the major makers, kept building it long after anyone needed it to be built.
Launch pricing in 2000 was $2,900 USD for the body alone and $3,400 for the EOS-1v HS kit, which bundled the body with the PB-E2 Power Drive Booster. The optional ES-E1 Link Software kit, which connected the camera to a computer over a proprietary cable and let you read back shooting data and remotely configure Personal Functions, added another $250. Adjusted into 2025 money the body alone was the equivalent of roughly £4,000 — which puts the camera's market position into some perspective: it was professional kit, sold at professional prices, and the people who bought one new in 2000 were almost without exception working photographers who depended on it for paid jobs.
The body: 945 grams of magnesium alloy and seventy-two silicone seals
The 1v's chassis is an internal aluminium die-casting reinforced with glass-fibre polycarbonate, wrapped in magnesium-alloy outer panels on the top, front and rear plates. The body alone (without the PB-E2) measures 161 × 119 × 71 mm and weighs 945 grams without batteries — heavier than the EOS-3 it shares so much circuitry with, considerably heavier than the F100 most amateur and semi-pro Nikon shooters were using, and slightly lighter than the Nikon F5. Add the PB-E2 motor drive and the camera grows by another 175 mm in height and gains roughly 530 grams (a fully-loaded 1v-HS with batteries weighs comfortably over a kilo and a half), and at that point it stops being a camera you carry around your neck for casual shooting and becomes a piece of equipment you build a kit bag around.
The much-quoted seventy-two-gasket weather-sealing figure is, refreshingly, not marketing-department invention but a literal count: Canon engineers identified seventy-two distinct seams, junctions, button pass-throughs and moving-part interfaces in the body, and applied moulded silicone gaskets at every one of them (Chrysis.net). The battery compartment, the back-cover hinge edges, the shutter button, the main and quick-control dials, the function buttons on the upper-left plate, the strap lugs, the PC sync terminal, the remote-control socket on the front — every potential ingress point for moisture, sand or dust got its own bespoke silicone seal. The result is a camera that is genuinely usable in rain, sea spray and dust storms in a way that no previous Canon SLR had been, and which made the 1v the default choice for wildlife and sports photographers working in difficult conditions for the next decade and a half.
The electronically-controlled vertical-travel rotary-magnet focal-plane shutter runs from 30 seconds to 1/8,000 second plus Bulb, with a maximum X-sync of 1/250 second. Canon rated the shutter to 150,000 actuations — equivalent to more than 4,000 rolls of 36-exposure film, which is a working-photographer's lifetime even at heavy-use rates — and verified examples in private hands have routinely exceeded that figure with no perceptible degradation in accuracy (Tim Layton Fine Art). The shutter mechanism was redesigned over the EOS-3's specifically to allow the 10-fps continuous rate when the PB-E2 was attached, and several reviewers at the time noted that the 1v's shutter sound was quieter, smoother and lower-pitched than any previous EOS body — "a precision sound that is one I equate with Leica SLRs, not Canons," as Michael Reichmann wrote in his original Luminous Landscape review.
One small but characteristic detail: the 1v advances film mechanically, by counting sprocket-hole travel against a physical encoder, rather than by the infrared-LED system that the EOS-3 and most other EOS bodies use. This sounds like a footnote until you realise that the IR-LED system used by every other EOS body fogs infrared-sensitive film as you shoot, and the EOS-1v is therefore the only EOS body that can be loaded with Ilford SFX 200, Rollei IR 400 or similar IR films without lighting up the emulsion through the camera's own internal sensors. For a camera designed mainly for daylight news and sports work, this was probably an unintended consequence of using a more robust mechanical encoder rather than a deliberate design choice — but it has made the 1v quietly beloved by the small community of photographers who shoot infrared film today.
The Controls

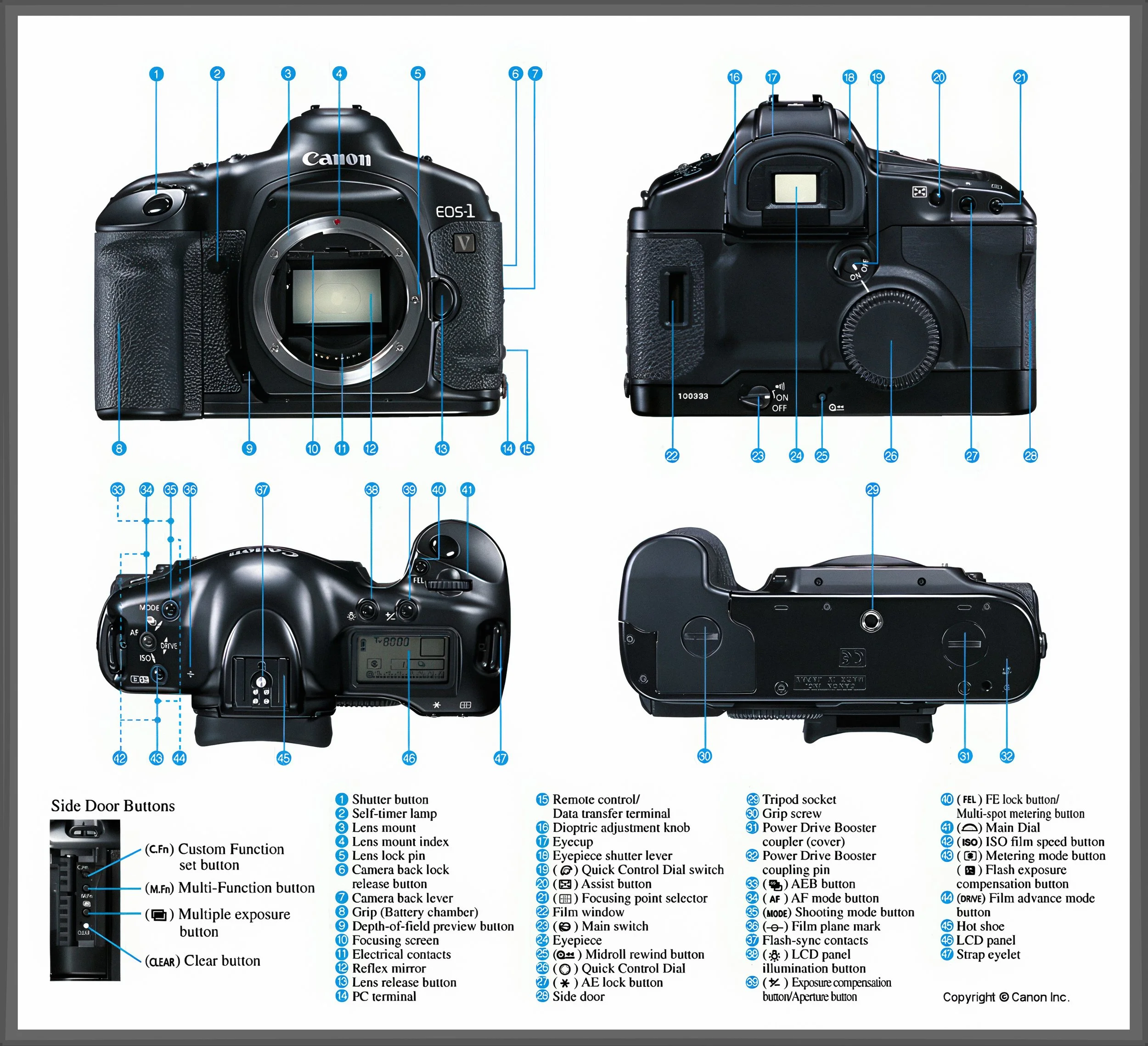

As you might expect for a camera that was clearly designed to be the ultimate professional 35mm workhorse, there is a certain complexity to its controls, even though a lot of work went into making them as ergonomically friendly as possible. To Canon’s credit, that complexity is kept on a short leash. The above diagram, borrowed from Canon’s own manual, is particularly useful here.

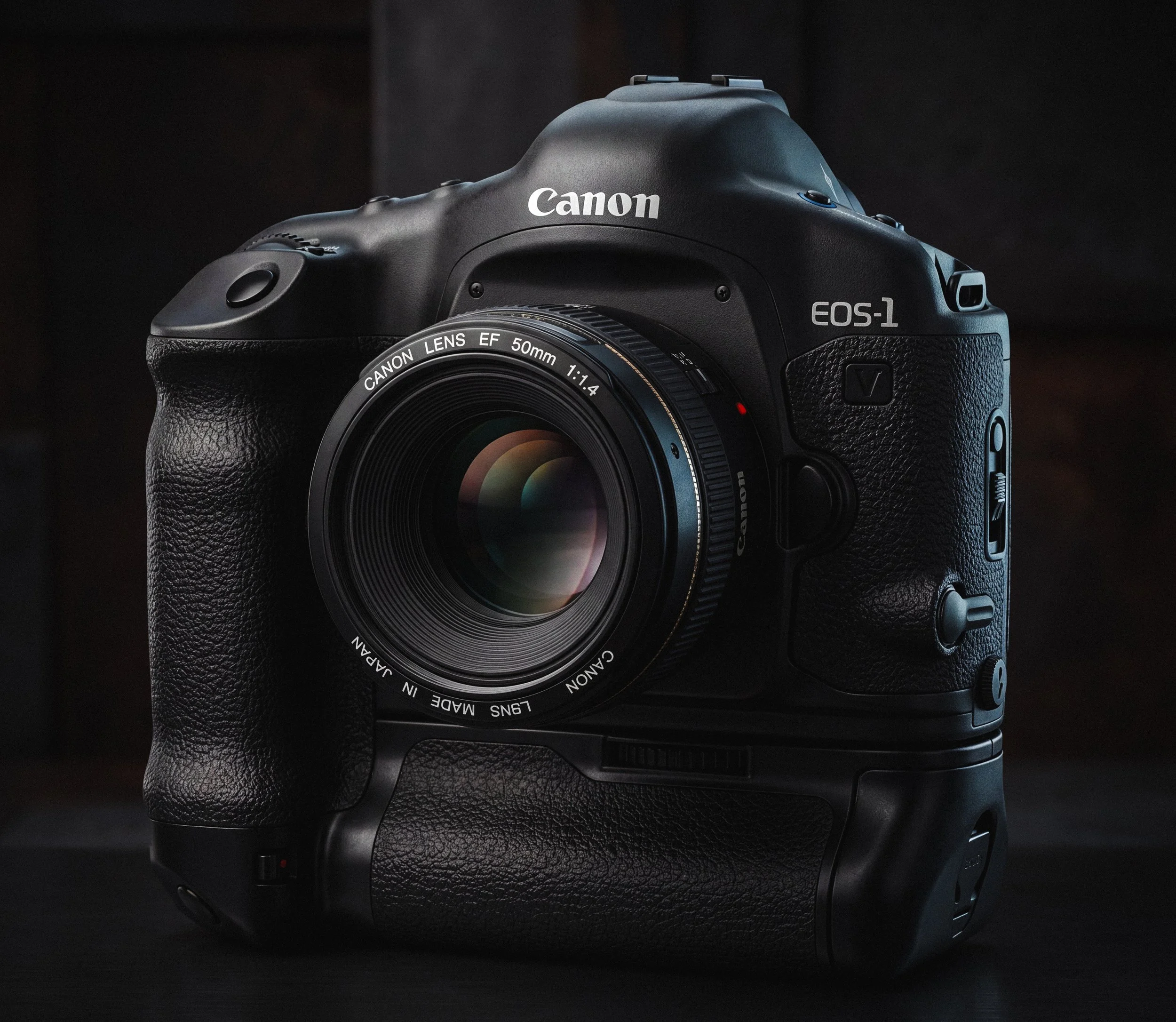

The front of the camera is relatively unencumbered: just the self-timer lamp and depth-of-field preview button to the left of the lens mount, and the lens release button on the right, at the 3 o’clock position. The shutter release is also visible on a forward facing surface at the top of the handgrip.

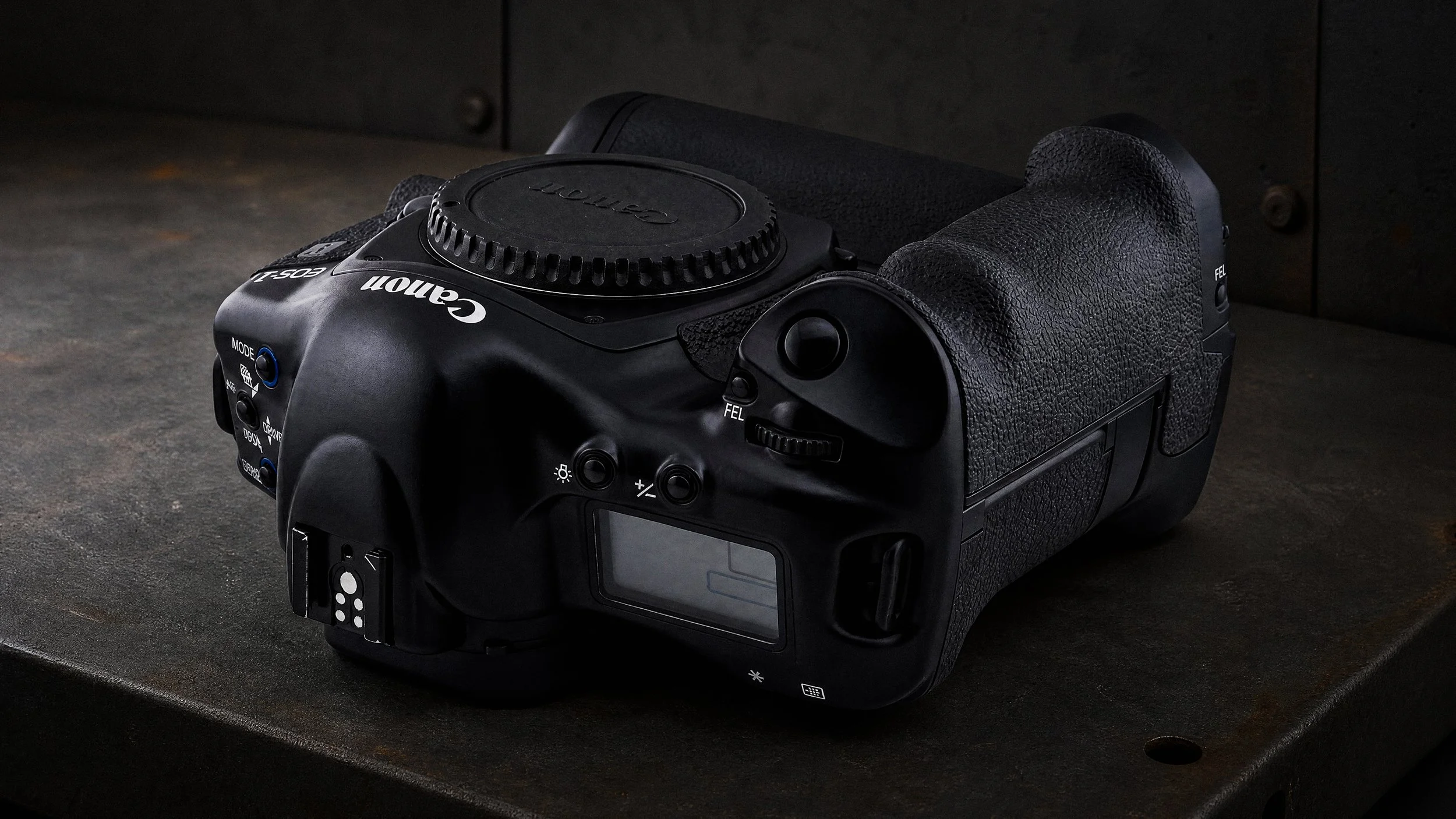

The top plate is busier. On the left of the prism bulge, a trio of buttons for setting Shooting Mode, AF Mode, Metering Mode, Film Advance Mode, ISO, Auto-Exposure Bracketing and Flash Exposure Compensation, by holding them in various combinations while turning the main command dial on the handgrip. The prism housing is central, with the hot shoe on top. To the right of the prism, the large LCD dominates most of the space. Just in front of it are two buttons for the LCD illumination control, and Exposure Compensation. A little further forward, at the very top of the handgrip, are the main command dial, and the FE Lock / Multi-spot Metering button, nicely placed to fall under your index finger. At the rear of the top plate, where your right thumb would rest, three buttons for Focus Assist, AE Lock and Focusing Point selection.

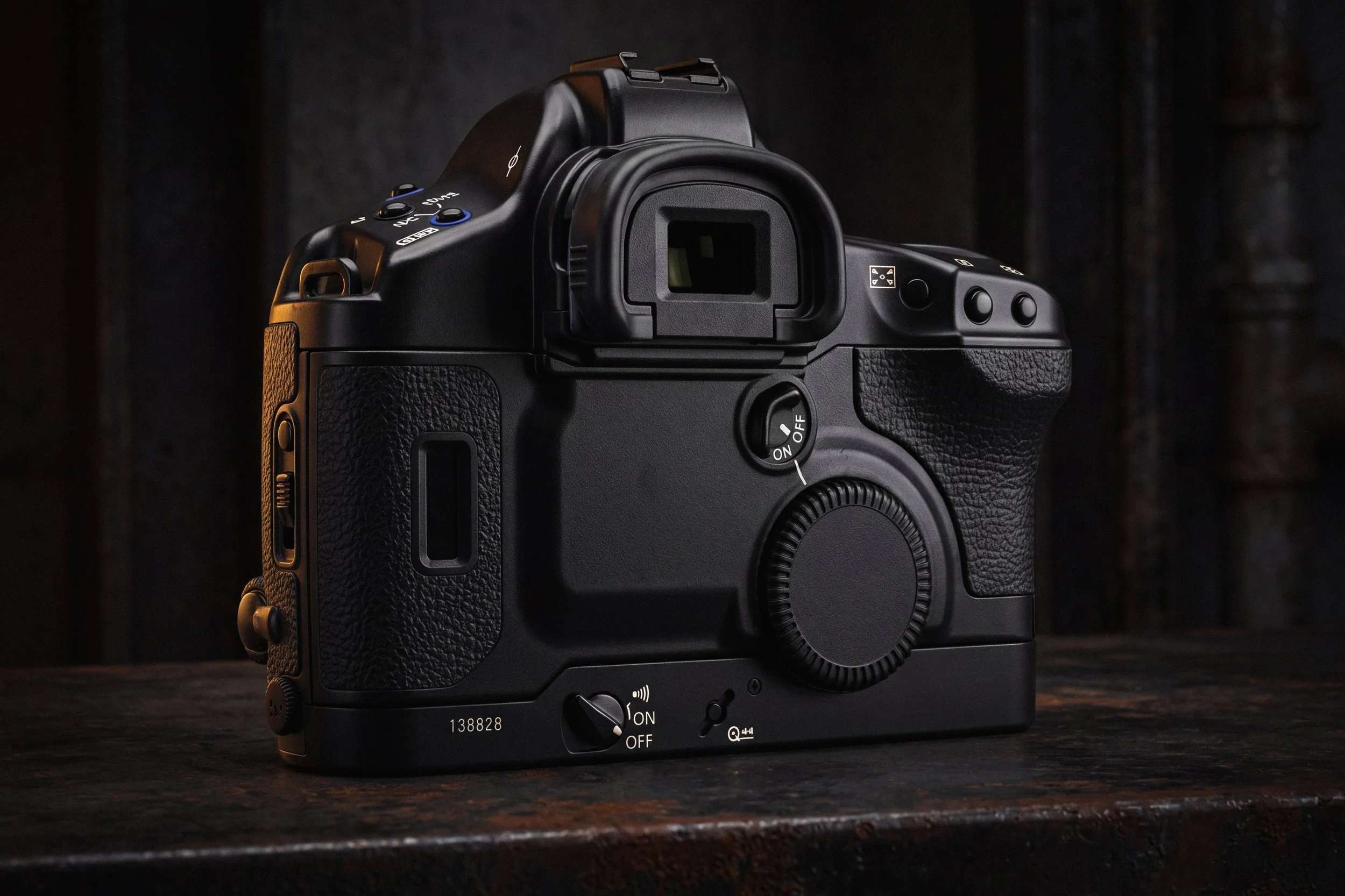

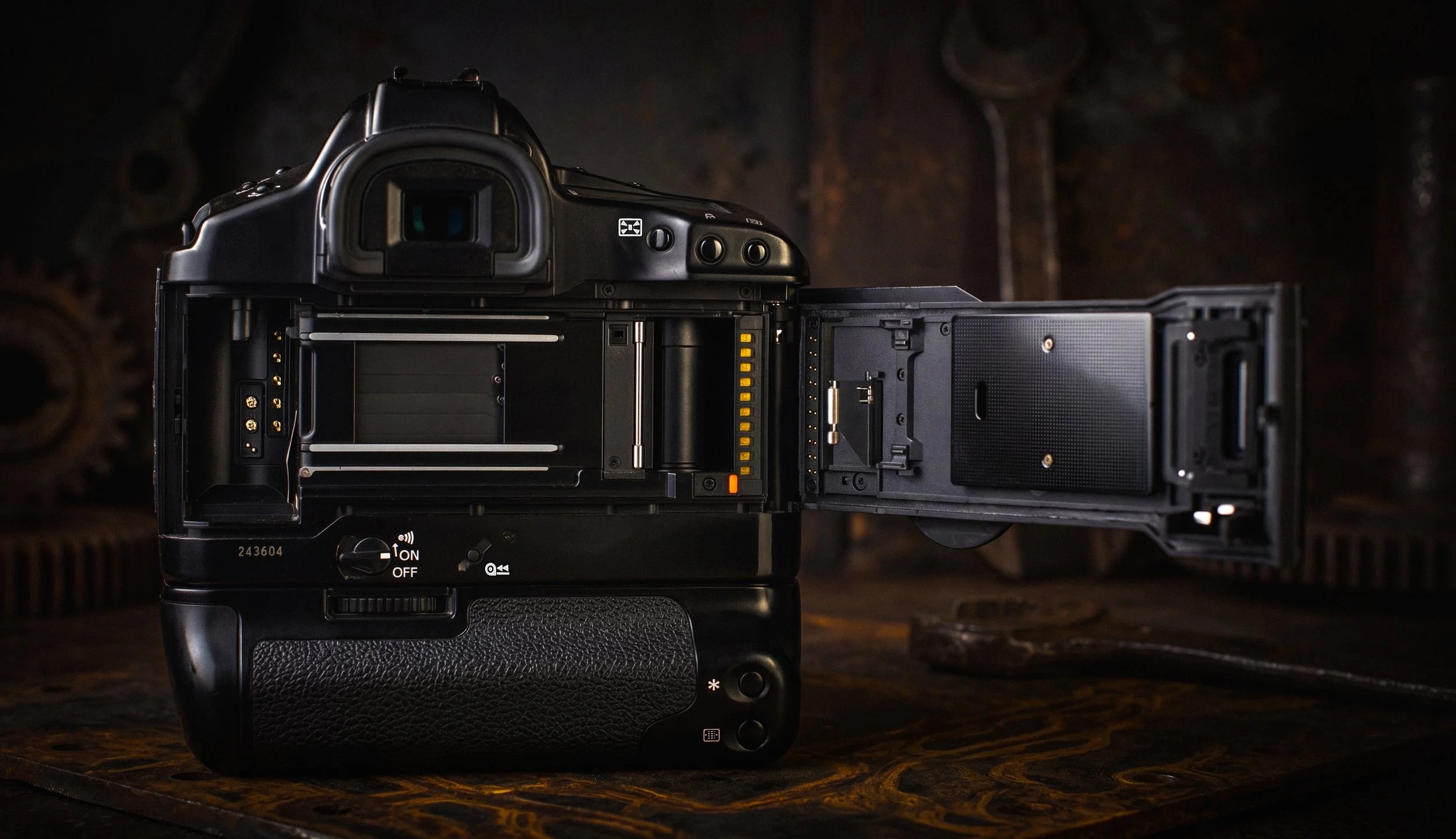

On the back of the camera, there’s a film window on the right, the large viewfinder with a dioptre adjustment knob, and eyepiece shutter lever. Prominently placed on the film door is the large Quick Control Dial, with a switch to turn the dial’s function on and off. On the strip below the film door there’s the Main Power Switch and the recessed Midroll Rewind Button.
The left side of the camera features the film door release button and lever, as well as well as a PC Sync terminal and a Remote Control / Data Transfer terminal. On the right of the camera, there’s a side door that falls under your palm. It conceals buttons for custom settings, Multi-Function setting, Multiple Exposure mode, and a ‘Clear’ button for clearing things.

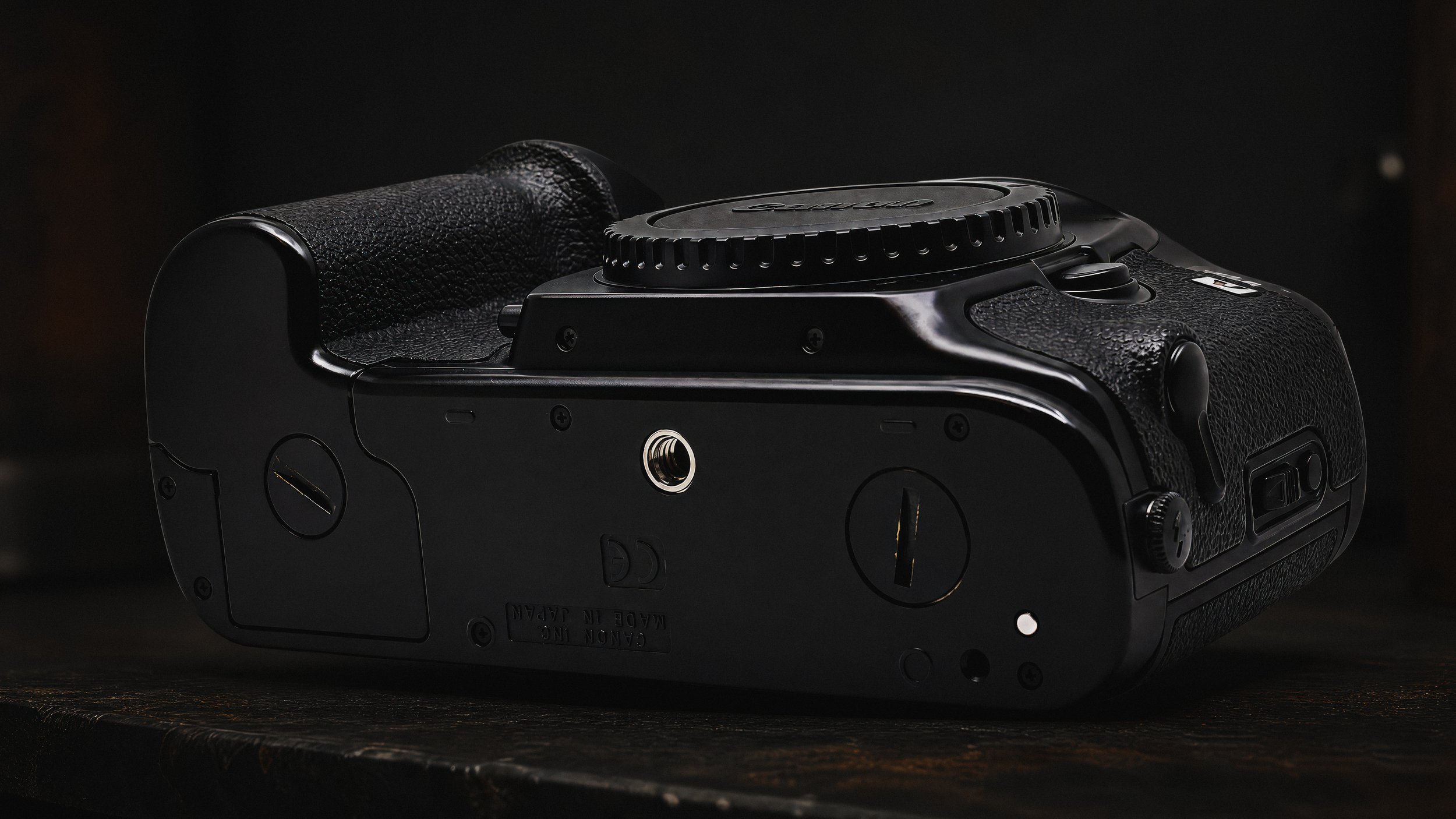

On the base of the camera, to the left there’s the handgrip locking screw, a tripod thread centrally, and on the right couplings for the Power Drive Booster.
The PB-E2 Power Drive Booster

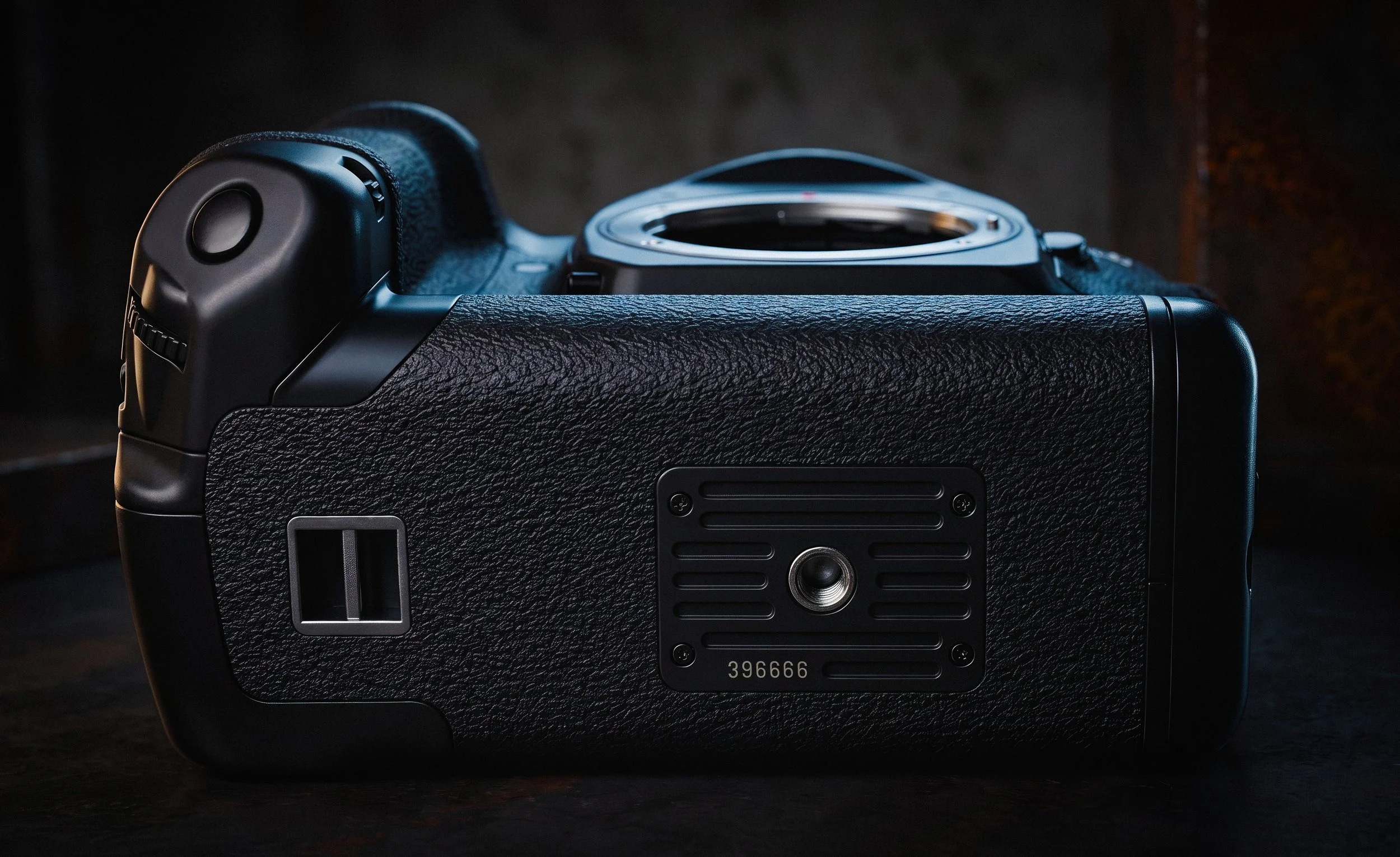

The motor drive shown attached to the camera in some of the photographs in this post is Canon's PB-E2 Power Drive Booster — strictly speaking a removable accessory, but one that's so closely associated with the 1v that the body-plus-PB-E2 combination is sold as a distinct configuration under its own name, the EOS-1v HS (where the HS stands, somewhat charmingly, for "high speed"). Canon launched the PB-E2 alongside the EOS-1N back in 1994, refined it for the EOS-3 in 1998, and then folded it into the 1v lineup unchanged in 2000 — which means the same physical accessory will mount on an EOS-1, EOS-1N, EOS-3 or EOS-1v, though with different maximum frame rates on each (cameramanuals.org).
The PB-E2's job is partly mechanical and partly electrical. Mechanically it extends the bottom of the camera into a full vertical grip, with duplicate shutter button, main dial, AE-lock button and AF-point selector positioned for portrait-orientation shooting — the same vertical-grip idiom that every flagship DSLR has used ever since. Electrically it supplies the additional power that the camera's motor needs to drive film faster than the body's internal 2CR5 lithium battery can sustain. The standard 1v on its 2CR5 cell offers only single-shot and a relatively modest 3.5 frames-per-second continuous mode; bolt on the PB-E2 with eight AA alkalines and you can push it to about 6 fps; load the PB-E2 with the proper NP-E2 nickel-metal-hydride battery pack, and the camera unlocks its CH* mode at ten frames per second — the figure that gave the 1v its sports-camera reputation and made it the favoured tool of Olympics and Premier League photographers throughout the early 2000s.
The reason the speed scales with the power source is straightforward: at 10 fps the mirror, shutter, film-advance motor and AF system are all being driven harder than a lithium 2CR5 can sustain without voltage sag, and Canon's solution was to make the higher continuous rates simply unavailable unless the camera detects the higher-voltage NiMH pack. This isn't a software lockout — the camera physically can't drive the mechanism that fast on the lithium primary cell. Reviewers reverse-engineered Canon's power-source-to-frame-rate matrix in some detail at the time, and it's a model of engineering pragmatism: the camera does what the power supply will let it do, and no more.
A small obscure quirk worth knowing: the NP-E2 NiMH battery pack is now scarce and expensive, but it shares its physical dimensions and connector layout with the NP-E3 NiMH pack used by the early digital EOS-1D and 1Ds bodies. A small modification — swap the end-plates between an NP-E2 and an NP-E3, two screws each side — converts an NP-E3 into a functional NP-E2 and gives you access to the cheap and plentiful NP-E3 supply that the dead 1D / 1Ds market keeps flowing onto eBay (YouTube). This is one of those community workarounds that took the EOS-1v shooting community a few years to discover, but it's now well-known enough that anyone serious about running a 1v at 10 fps in 2025 simply assumes they'll be using converted NP-E3s.
Forty-five autofocus points and the metering quirks
The Area AF sensor in the 1v is the same fundamental piece of silicon Canon developed for the EOS-3: a 45-point CMOS array arranged in an ellipse that covers most of the central area of the viewfinder, with seven cross-type sensors in the inner ring that detect both vertical and horizontal contrast, and the central sensor operating down to working apertures as small as f/8 (which means autofocus still functions with an f/4 lens behind a 2× teleconverter — a meaningful capability for wildlife and sports work with long telephotos) (35mm-compact.com). Working AF range is EV 0 to EV 18 at ISO 100 with an f/1.4 lens. Modes are One Shot, AI Servo (with Canon's predictive-tracking algorithm), and Manual focus, with three groups of selectable AF point arrangements (any single point; one of three central clusters; or full 45-point automatic selection).
Crucially, and unlike the EOS-3, the 1v does not have eye-controlled focus. Canon's ECF system was a divisive feature — some people loved it, some never got it to work reliably with their particular eye geometry, and the calibration process was slow and unforgiving. Canon decided, for the 1v, that the system wasn't reliable enough to ship in a professional camera where AF failure means missed paid shots, and removed it. The 1v selects focus points the conventional way: a dedicated AF-point button engages selection mode, the main and quick-control dials move the selected point horizontally and vertically, and a "home" position can be registered for instant recall (Mik Milman).
The 1v's metering system is the 21-zone evaluative array first seen in the EOS-3. It sits on a dedicated metering sensor positioned above the sub-mirror, separate from the AF sensor, and reads the entire viewfinder in 21 honeycomb-arranged segments. Other metering modes available are partial (8.5% of viewfinder at centre), centre-weighted spot (2.4%), AF-point-linked spot (2.4% measured at the active AF point rather than the optical centre, which is enormously useful for off-centre subjects), multi-spot (up to eight individual spot readings averaged for high-contrast scenes), and centre-weighted averaging. The 21-zone evaluative system is competent rather than revelatory — it's not at the level of the Nikon F5's colour-aware 1,005-segment matrix, which is genuinely the best 35mm meter ever shipped, but for everyday print-film work it's accurate, consistent, and adjusts in response to the active AF point in a way that more primitive evaluative systems didn't (Ken Rockwell). For slide film, where exposure latitude is tighter, most working pros tended to switch to centre-weighted or multi-spot and trust their own judgement rather than letting the algorithm decide.
Custom Functions, Personal Functions, and the ES-E1 link software
This is the part of the 1v that, more than any other, signalled how seriously Canon were taking the professional market. The camera has twenty Custom Functions accessible from the body itself, covering everything from mirror lock-up behaviour to AF-point illumination to the meaning of the various rear-panel buttons, and these are organisable into three Custom Function Groups so that (for example) you can set up one configuration for sports, one for macro work, one for studio portraiture, and switch between them with a single dial move. On top of the twenty C.Fn there are thirty additional Personal Functions that aren't accessible from the camera body at all — to set them you need the optional ES-E1 Link Software kit, which provides a special USB-to-Canon-proprietary cable and a Macintosh / Windows application that lets you configure the camera's deeper behaviour and read shooting data back from its internal memory (ES-E1 Manual).
The shooting-data feature is genuinely strange, in a way that only a camera designed in 2000 could be. The 1v has an internal memory chip that records, for every single frame shot, up to seventeen separate metadata items: aperture, shutter speed, metering mode used, AF mode, exposure compensation applied, flash mode, lens focal length, time and date, the camera's user-settable ID number (00-99), and the sequential frame number. It can store this data for up to ninety-nine 36-exposure rolls in its internal RAM before the buffer wraps. Connect the camera to a computer with the ES-E1 cable, run the EOS-1v Remote software, and you can download every shooting parameter for every frame on every roll into a database on your PC — effectively giving you full EXIF metadata for film, half a decade before the rest of the photography world figured out that EXIF was even a thing worth caring about. Independent developers later wrote a more capable third-party tool called Meta35 which works with cheaper modern cables and exports the data to common formats (Meta35 review) — useful, because Canon's original software is increasingly painful to run on modern Macs or Windows.
The other quietly clever data-imprinting feature is more visible. When you load a roll of film, the camera fires a tiny imprint onto the leader recording the user-settable camera ID and the sequential roll number — between rolls 001 and 999. If you're a wedding photographer with three bodies and a team of second-shooters running through fifty rolls a day, this is the kind of feature that turns a chaotic shoot into a manageable archive. Each frame is also imprinted, in the inter-frame gap, with frame number and (optionally) the date or shutter/aperture data, which means even if you lose the negative sheet or the proof prints, you can identify and reconstruct any frame from the markings on the film itself.
Ruislip, April 2005
I came to the EOS-1v having already ‘gone digital’. I'd been shooting on the Canon EOS-1Ds Mark II since it had come out the previous September, the EOS-1D Mark II before that, and I already had a small stable of L-series EF glass: a 24-70mm f/2.8 L, a 16-35mm f/2.8 L, a 70-200mm f/2.8 L IS, and a 50mm f/1.4. But I still loved film as a medium — there's a quality to a properly-processed roll of Tri-X that no sensor of the time could quite reproduce — and the idea of being able to plop L-glass onto a film body again was very appealing.
I bought my 1v as new-old stock on eBay in early 2005, for a sum that I no longer remember precisely but which was a small fraction of its 2000 launch price. The seller was a Hong Kong dealer who appeared to have several still in their original Canon packaging, and mine arrived sealed in factory plastic with all the original paperwork and the unused strap still in its bag. The camera was exactly what I'd hoped for: every bit as fast and as solid as the 1Ds Mk II, with a viewfinder that was if anything brighter, and the curious mechanical pleasure of a moving mirror and a film advance.
The frame above was shot at a family gathering in Ruislip, in April 2005, using the EOS-1v with the EF 24-70mm f/2.8 L zoom, on Kodak Tri-X 400. My son Monty, then two years old, had spotted the foosball table in my uncle’s garden and was determined to get involved in the game the adults were playing. He is too short to reach the handles. He is also, in the photograph, focused with the absolute total concentration that only a two-year-old can summon. Looking at the frame today, twenty-one years later, the detail that makes the photograph is the disembodied hand resting comically on his head — which belongs to his aunt, my sister Vickie, standing just out of frame and offering an avuncular pat that Monty is far too busy to acknowledge.
The light is the late-afternoon April sun coming over a suburban garden wall, the brickwork warming the right side of the frame and bouncing fill light back onto Monty's face. Tri-X at box speed handles this kind of light beautifully — the highlights on his hair are crisp, the shadows under the table edge are open, and the grain pattern sits perfectly in the brick-wall texture without ever looking intrusive. The 24-70 f/2.8 L is doing exactly what it's designed for — sharp enough to resolve the brick mortar at the edge of the frame and with the kind of natural rendering on faces that Canon's L-series zooms quietly excel at. It's a photograph that I have always had a soft spot for. Monty is twenty-three now, taller than I am, and has presumably long since mastered foosball. But for one fraction of a second in April 2005, on a roll of Tri-X in a brand-new EOS-1v that should never really have existed by then, he is two years old and gloriously, hopelessly, outmatched by the table.
What it's like to own one now
Twenty-six years after launch, with the last factory-fresh body sold by Canon Japan in 2018 and the official repair window closing in October 2025, the EOS-1v has settled into a particular position in the second-hand market. Clean working examples on UK eBay sit somewhere between £600 and £1,000 for body alone, more if it comes with the PB-E2 in the original HS configuration, more still for the now-rare NP-E2 NiMH pack (most modern owners have given up on finding a working original NP-E2 and use a converted NP-E3 instead). At those prices it's significantly more expensive than its near-contemporary peers — an EOS-3 in similar condition is half the price; an EOS-1N or F100 is a third of it — but cheaper than the Nikon F6, which is the only directly comparable camera still in regular service.
What you get for the money is, very straightforwardly, the most capable autofocus 35mm SLR ever made. Every EF lens Canon has ever shipped — including modern STM and USM L-glass designed for the latest digital bodies — works on the 1v exactly as it would on any current EOS DSLR. The 45-point AF is, even by 2026 standards, perfectly competent; I have no complaints about it for anything short of fast-moving wildlife in dim light. The metering is reliable. The shutter is quiet, the mirror well-damped, the viewfinder bright and the body comfortable to hold for long sessions. The data-recording feature still works (with Meta35 software and the right cable), which makes the 1v one of the very few film cameras whose negatives come out with effectively a full EXIF record attached.
The one genuine maintenance concern, looking ahead, is electronic. Canon's repair commitment ends in October 2025, which means that from that point onward any internal-board failure, capacitor degradation, or shutter-electronics fault becomes a matter for independent specialist repair shops only. The mechanical parts of the camera (shutter, mirror box, film transport) are robust enough that most working examples will continue running for many more years; the electronics are the unknown. For now, though, the 1v remains exactly what Canon built it to be in 2000: a no-compromise professional 35mm film SLR, and probably the last one ever made.
